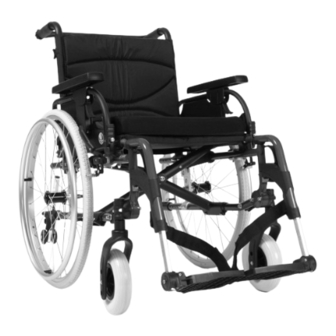

Summary of Contents for Vermeiren V300 DL
- Page 1 V RM IR N V300 DL I N S T R U C T I O N...
- Page 2 No part of this manual may be reproduced in any form what so ever (print, photocopy, microfilm or any other process) without written permission of the publisher, or processed, duplicated or distributed by using electronic systems. © N.V. Vermeiren N.V. 2016...
-
Page 3: Table Of Contents
V300DL 2016-03 Contents Preface ....................2 Product description ..............3 Intended use ......................... 3 Technical specifications ....................4 Components ......................... 5 Accessories ........................6 Location identification plate ..................6 ... -
Page 4: Preface
First of all we want to thank you for putting your trust in us by selecting one of our wheelchairs. The Vermeiren wheelchairs are the result of many years of research and experience. During the development, special attention was given to the ease of use and the serviceability of the wheelchair. -
Page 5: Product Description
When used on mats, carpeted floors or loose floor coverings, the floor covering can get damaged. Use only Vermeiren approved accessories. The manufacturer is not liable for damage caused by the lack of or improper service or as a result of not following instructions from this manual. -
Page 6: Technical Specifications
2016-03 Technical specifications Technical terms below are valid for the wheelchair in standard settings. If other footrests / armrests or other accessories are used, the tabulated values will change. Make Vermeiren Address Vermeirenplein 1/15, B-2920 Kalmthout Type Manual wheelchair Model... -
Page 7: Components
V300DL 2016-03 Make Vermeiren Address Vermeirenplein 1/15, B-2920 Kalmthout Type Manual wheelchair Model V300DL Maximum occupant mass 130 kg Diameter PU steering wheels 200 mm Tyre pressure, steering wheels Max. 2.5 bar Storage and use temperature + 5 °C + 41 °C Storage and use humidity We reserve the right to introduce technical changes. -
Page 8: Accessories
Anterior pelvic belt (B20) for mounting on the tubes of the back Tables (B15A, B12) Crutch holder Location identification plate 1 = Logo Vermeiren 2 = Taxi hooks 3 = Identification plate 4 = Name Vermeiren Explanation of symbols Maximum mass... -
Page 9: Safety Rules
V300DL 2016-03 Safety rules To prevent injury and/or damage to your wheelchair, make sure that no objects and/or body parts are caught in the spokes of the driving wheels. The parking brakes should be applied before getting into and out of the wheelchair. When getting into and out of the wheelchair, do not stand on the foot plates. -
Page 10: Mounting The Rear Wheels
V300DL 2016-03 Mounting the rear wheels 1. Take the rear wheel and push on button 2. Keep the button pushed in and mount the rear wheels axle till it stops. 3. Release the button. 4. Check that the wheels are secured. Unfolding the wheelchair CAUTION: Risk of clamping –... -
Page 11: Mounting Or Removing Of The Footrests
V300DL 2016-03 Mounting or removing of the footrests The mounting of the footrests is done as follows: 1. Hold the footrest sideways at the outside of the wheelchairs frame and mount the tube hood into the frame. 2. Swing the footrest inwards till it clicks in position. -
Page 12: Mounting Or Removing Of Armrests
V300DL 2016-03 Mounting or removing of armrests The armrests of the wheelchair can be mounted by following instructions. CAUTION: Risk of clamping – Keep fingers, buckles and clothes away from the bottom side of the armrest. 1. Mount the rear tube of the armrest in tube ... -
Page 13: Adjusting The Armrest
V300DL 2016-03 To remove the armrest, press button and pull the rear of the armrest from tube hood . Adjusting the armrest The height of the armrest can be adjusted in 8 positions (range 105 mm: steps 15 mm): Push the lever . -
Page 14: Adjusting Height Hand Grips
V300DL 2016-03 2.10 Adjusting height hand grips Adjust the height of the hand grips (range 120 mm: steps less): 1. Loosen the star knob a little bit. 2. Move the hand grips in the desired height. 3. Secure the star knob 4. -
Page 15: Moving On Slopes
V300DL 2016-03 Release the brakes. Take both hand rims at their highest position. Lean forward and push the hand rims forward until straight arms. Swing your arms loosely back to the hand rims topside and repeat the movement. 2.14 Moving on slopes WARNING: Control your speed –... - Page 16 V300DL 2016-03 2.15.2 Moving up steps or curbs Moving up steps or curbs with attendant as follows: Prevent the footrests from touching the curb. Ask the attendant to tip the wheelchair backwards, just enough to move the front wheels over the curb. Lean backwards to move your centre of gravity above the rear wheel.
-
Page 17: Fold Up The Wheelchair
V300DL 2016-03 2.16 Fold up the wheelchair CAUTION: Chance of pinching – Do not place your fingers between the components of the wheelchair. Fold the foot plates or remove the footrests (see § 2.5). Swing the stabilisator away from the right hand grip (standing behind the wheelchair - see §... -
Page 18: Use Of The Wheelchair As Seat In A Motor Vehicle
V300DL 2016-03 2.19 Use of the wheelchair as seat in a motor vehicle WARNING: The wheelchair has passed the crash test of ISO 7176-19: 2008 and, as such, has been designed and tested for use only as forward-facing seat in a motor vehicle. WARNING: The wheelchair's pelvic belt alone is not suited as an occupant restraint belt. - Page 19 V300DL 2016-03 Figure 4 figure 3 Steps to secure the wheelchair user: 1. Remove both armrests. 2. If present, attach the wheelchair's pelvic belt. 3. Attach the occupant restraint belts according to the instructions of the strap-system manufacturer. 4. Wear the pelvic belt low across the front of the pelvis, so that the angle of the pelvic belt is within the preferred zone of 30°...
-
Page 20: Installation And Adjustment
The Vermeiren V300DL has been designed to be adjust with a minimum of replacements parts. There is no need for extra stock of spare parts. To find a service facility or specialist dealer near you, contact the nearest Vermeiren facility. A list of Vermeiren facilities can be found on the last page. - Page 21 V300DL 2016-03 Front wheel Axle plate rear wheels Seat height 440 mm Seat height 470 mm Seat height 500 mm (standard) Seat height 530 mm Page 19 ...
- Page 22 If you do not find the right combination you can always contact the company Vermeiren. Check that the swivel axles are perpendicular to the ground. If necessary use the procedure below to adjust the castor stem housing: Loosen the 3 bolts using a size 5 Allen key.
-
Page 23: Adjusting The Seat Depth
V300DL 2016-03 Adjusting the seat depth The Vermeiren V300DL is adjustable in 5 seat depths by changing the cross and the backrest connection . Seat depth Cross Back rest connection 460 mm Hole 1 and 3 Position 1 440 mm (Standard) -
Page 24: Adjust The Brakes
V300DL 2016-03 Adjust the brakes WARNING: Risk of injury – Brakes may only be adjusted by your specialist dealer. Adjust the brakes according following rules: 1. Install the wheels according § 2.2. 2. Disconnect the brakes by pulling lever backwards. -
Page 25: Adjusting The Depth Arm Pad
V300DL 2016-03 3.6.2 Adjusting the foot plates The foot plates can be used in 2 positions. Standard they are adjusted with the base plate in the back position. The foot plates can be adjusted to the front by switching the left and right foot plate. 3.6.3 Adjusting angle foot plates 100°... -
Page 26: Adjusting The Stability And The Maneuverability
Adjust the stability and maneuverability according following steps: 1. Loosen the bolts of axle plate. 2. Move the axle plate in the desired position. 3. Retighten the bolts. Maintenance For the maintenance manual of the wheelchairs refer to the Vermeiren website: www.vermeiren.com. Page 24 ... - Page 27 Dealer´s stamp: Dealer´s stamp: Date: Date: Dealer´s stamp: Dealer´s stamp: Date: Date: Dealer´s stamp: Dealer´s stamp: Date: Date: For service checklists an additional technical information, please see our specialist dealers nearest to you. More information on our website at: www.vermeiren.com.
- Page 28 Fax: +41(0)31 818 40 98 website: www.vermeiren.it website: www.vermeiren.ch e-mail: info@vermeiren.it e-mail: info@vermeiren.ch Poland Spain / Portugal Vermeiren Polska Sp. z o.o Vermeiren Iberica, S.L. Carratera de Cartellà, Km 0,5 Łączna PL-55-100 Trzebnica Sant Gregori Parc Industrial Edifici A Tel: +48(0)71 387 42 00...
