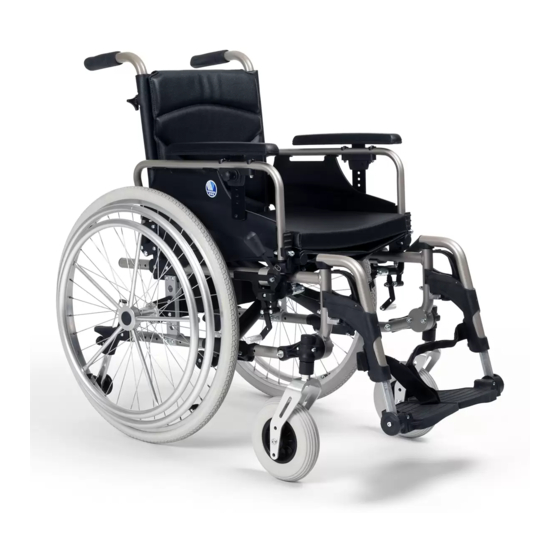

Vermeiren V300 30 Installation Manual
Hide thumbs
Also See for V300 30:
- Installation manual (134 pages) ,
- User manual (148 pages) ,
- Installation manual (20 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Vermeiren V300 30
Summary of Contents for Vermeiren V300 30
- Page 1 V RM IR N V-series wheelchairs INSTALLATION MANUAL...
- Page 2 (print, photocopy, microfilm or any other process) accompany every product sold. without written permission of the publisher, or processed, Version: A, 2018-10 duplicated or distributed by using electronic systems. © Vermeiren Group, 2018...
-
Page 3: Table Of Contents
V-series wheelchairs 2018-10 Contents Contents Preface ........................2 Scope of delivery ..................3 Tools ......................3 Adjustments ....................4 Stability and manoeuvrability ................4 Rear-wheel position ..................5 Seat height and angle ..................5 3.3.1 Adjustment settings .................... 5 3.3.2 Adjusting rear and front wheel height .............. -
Page 4: Preface
If you still have questions after reading this manual, do not hesitate to contact Vermeiren. The information in this manual applies to all wheelchair(s) according to following list: • V300 • V300 30° • V300 30° Comfort • V300 HEM2 • V300 XL • V300ACT / V300XR •... -
Page 5: Scope Of Delivery
V-series wheelchairs 2018-10 Scope of delivery Scope of delivery Next items are part of the delivery. • Frame including wheels, backrest frame, seat (default seat height 500 mm, default seat angle 5°) • 2 Armrests (not for V300XR) • Seat cushion (only for V300 DL) •... -
Page 6: Adjustments
Make sure all screws are firmly secured before riding the wheelchair. Adhere to the tightening torques for screws according to the Torque table on our website. Important remark • For more information contact Vermeiren, see the website http://www.vermeiren.com/. Stability and manoeuvrability CAUTION Risk of tipping over Be aware that by changing the position of the rear wheels, the stability of the wheelchair is influenced. -
Page 7: Rear-Wheel Position
2. Move the mounting plate to the front or rear within the range of the adjustment holes. 3. Retighten the 4 socket screws in holes (2). Only for V300 30° and depending on use: We advised to mount the mounting plate (1) of rear wheels in the most rear position. - Page 8 V-series wheelchairs 2018-10 Adjustments Table 1: V300DC V300XL, V300F, V300 DL At seat angle 5° (Default setting) Seat height Rear wheels Front wheels Hole Hole Bushing (B) 440 mm Above (C) 470 mm Under (C) 500 mm Under (C) (Default) 530 mm Under (C) Rear wheels...
- Page 9 V-series wheelchairs 2018-10 Adjustments Rear wheels Front wheels Seat height 440 mm Other seat height Table 3: V300, V500, V500XL At seat angle 5° (Default setting) Seat height Rear wheels Front wheels Hole Hole no. Ø Bushing (B) 440 mm 150 mm Above (C) 470 mm...
-
Page 10: Adjusting Rear And Front Wheel Height
V-series wheelchairs 2018-10 Adjustments 3.3.2 Adjusting rear and front wheel height Adjust the rear-wheel height as follows: Remove the rear wheels (see instruction manual). 2. Demount the axle housings (E) of the rear wheels from axle plate (D) and remount in the correct hole, see tables in §3.3.1. 3. -
Page 11: Adjusting Swivel Axles
V-series wheelchairs 2018-10 Adjustments 3.3.3 Adjusting swivel axles Verify that the swivel axle (F) stands perpendicular to the ground. If not, adjust the swivel axle at toothed clamp (G) as follows: 1. Loosen the three socket screws (15). 2. Adjust the angle of the swivel axle until it is perpendicular to the ground. There are 5 positions available, each indicated by a small triangle. -
Page 12: Adjustment Of Cross And Backrest Connection
(X) and backrest connection (B), see picture on next page. Cross position Backrest Seat depth holes position holes 460 mm Hole 1 and 3 V300 30° 440 mm (Default) Hole 2 and 4 500 mm Hole 1 and 3 480 mm Hole 2 and 4 520 mm... -
Page 13: Seat Depth Option 3
V-series wheelchairs 2018-10 Adjustments Cross position Backrest position 3.4.5 Seat depth option 3 This type of wheelchair is adjustable in 5 seat depths by adjusting the location of the frame cross (X) and backrest connection (C). Cross position Backrest Seat depth V300 holes position holes... -
Page 14: Seat Depth Option 4
V-series wheelchairs 2018-10 Adjustments 3.4.6 Seat depth option 4 This type of wheelchair is adjustable in 4 seat depths by adjusting the location of the frame cross (X) and backrest connection (D). Cross position Backrest Seat depth holes position holes 460 mm Hole 1 and 3 Position 1... -
Page 15: Parking Brakes
4. Verify if the brake is working properly: the wheel is blocked, but the brake can be operated easily. If this is not the case repeat th e steps above.. 5. Repeat this adjustment for the second parking brake. Make sure both brakes are adjusted identically. V300 V300 30° V300DC V300DL V500 V300XL... -
Page 16: Footrest Length
V-series wheelchairs 2018-10 Adjustments Footrest length CAUTION Risk of damage Make sure that the footrests won’t touch the ground. Keep a minimum safe distance of 60 mm above the ground. The maximum length of the footrest is limited to the length indicated by a triangle on the front of the footrest tube, see picture. -
Page 17: Arm Pad Height And Depth (Option 1)
V-series wheelchairs 2018-10 Adjustments Arm pad height and depth (option 1) This arm pad (see picture on next page) is adjustable in height and depth, each in 3 positions. The height is adjusted by adding or removing distance blocks. The depth is adjusted by using different mounting holes. -
Page 18: Armrest Height (Option 3)
V-series wheelchairs 2018-10 Adjustments 3.11 Armrest height (option 3) The height of the armrest is adjustable in 6 positions as follows: 1. Pull the armrest out of the armrest holder. 2. Remove socket screw (36) that sets the height. 3. Mount the screw in the desired hole. 4. - Page 19 Service registration form Service registration form This product (name): …………………………………….. was inspected (I), serviced (S), repaired (R) or disinfected (D): By (stamp): By (stamp): By (stamp): Kind of work: I / S / R / D Kind of work: I / S / R / D Kind of work: I / S / R / D Date: Date:...
- Page 20 Poland Spain / Portugal Vermeiren Polska Sp. z o.o. Vermeiren Iberica, S.L. ul. Łączna 1 Carratera de Cartellà, Km 0,5 PL-55-100 Trzebnica Sant Gregori Parc Industrial Edifici A 17150 Sant Gregori (Girona) phone: +48(0)71 387 42 00...
