Pulsar SG64WP Quick Start Manual


Switch 6 ports
4 ports PoE 10/100/1000 Mb/s (data transfer and
power supply)
2 ports 10/100/1000 Mb/s (UP LINK)

30 W for each PoE port, supports devices complaint
with the IEEE 802.3af/at (PoE+) standard

Supports auto-learning and auto-aging of MAC
addresses (1K size)

LED indication
1. Technical description
1.1. General description.

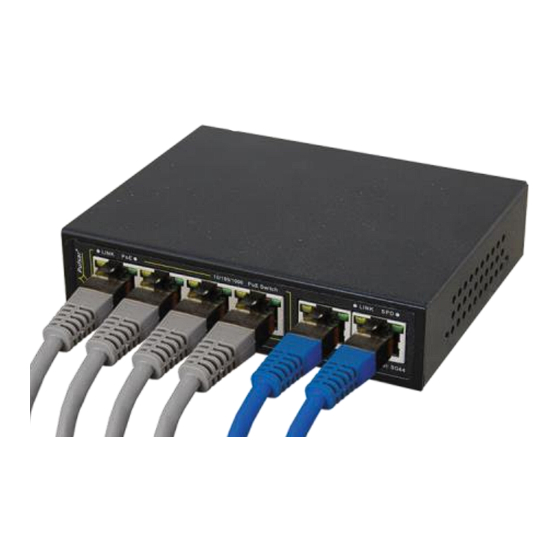

SG64 is a 6-ports PoE switch designed to supply IP cameras operating in IEEE 802.3af/at standard. Automatic
detection of any devices powered in the PoE/PoE+ standard is enabled at the 1 – 4 ports of the switch. The UP LINK ports is
used for connection of another network device via RJ45 connector. The LEDs at the front panel indicate the operation status
(description in the table below).
The PoE technology ensures a network connection and reduces installation costs by eliminating the need to supply a
separate power cable for each device. This method allows supplying other network devices, such as IP phone, wireless access
point or router.
SG64WP 6-port PoE switch for 4 IP cameras without power supply
Features:

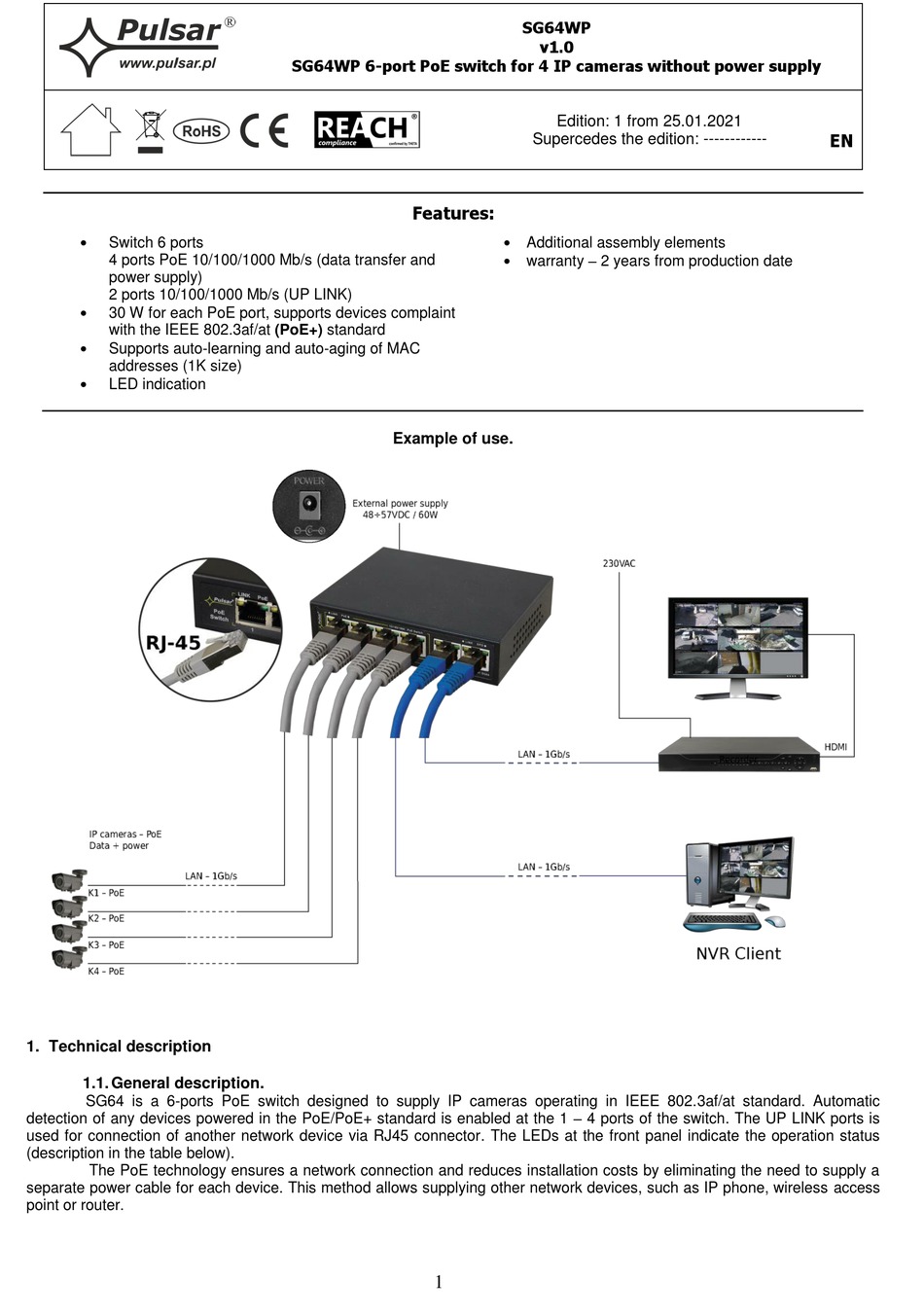

Example of use.
1
SG64WP
v1.0
Edition: 1 from 25.01.2021
Supercedes the edition: ------------
 Additional assembly elements
 warranty – 2 years from production date
EN
