Describing the System

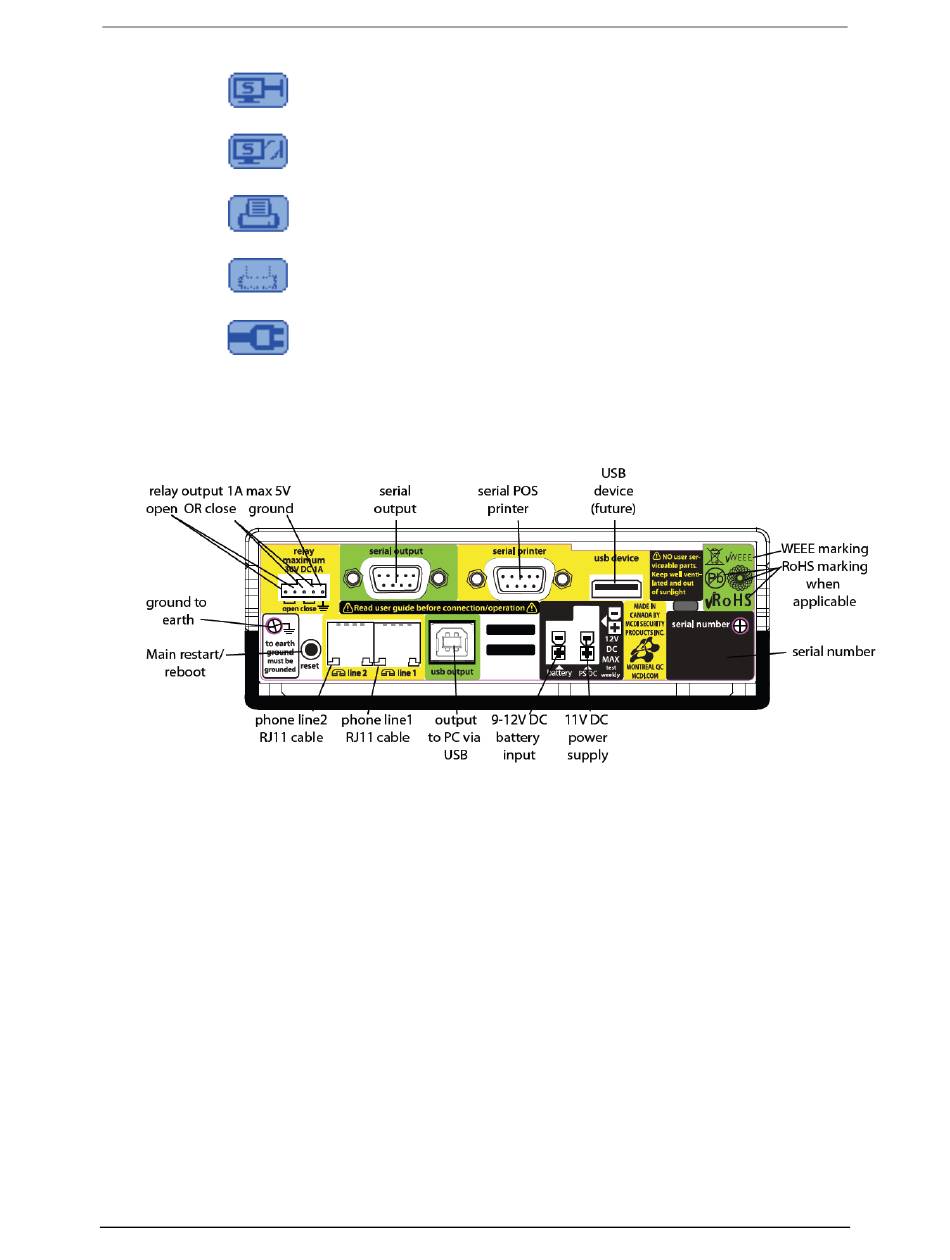

2.4.2 DDI-11E Rear Panel

POWER SUPPLY AND BATTERY BACKUP
The DDI-11E will require an external 6-12 VDC power supply. Digitize supplies a
two-foot red and black wire with a connector on one end for the 11 VDC power
supply connection on the back of the DDI-11E and another to plug into the AUX
power output on the rear of the SYSTEM 3505. Since the DDI-11E is powered
through the System 3505, the DDI-11E will also use the battery backup that the
System 3505 uses.
Since the DDI-11E is powered from the 12VDC output of the SYSTEM 3505 via the
11VDC MSP power input, the DDI-11E depends on the SYSTEM 3505 to report an
AC failure.
700289-0001 Rev. B 10/21
Serial Port connected to System 3505
Serial Port disconnected to System 3505
Printer Ready
No Printer Connected
Main Power Connected
Figure 2-6, DDI-11E Rear View
Digitize Inc.
2-5
