Describing the System

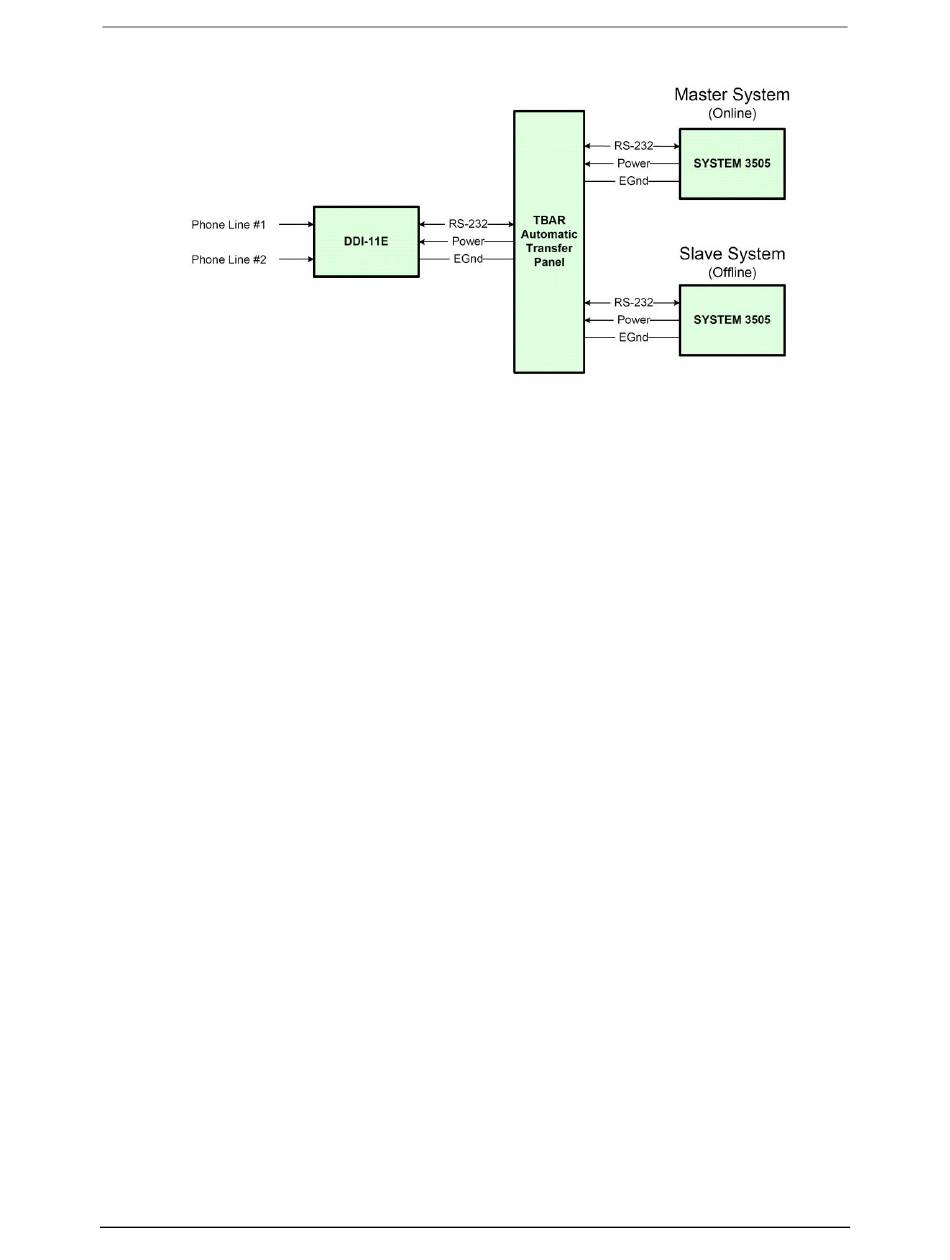

Figure 2-4, Redundant System 3505's sharing a DDI-11E

2.3 What Dialer Panels work with the DDI-11E Interface?

The following dialer formats are supported by the DDI-11E:
•
Silent Knight/Ademco slow, 10 BPS 3/1, 4/1, 4/2, non-extended
format
•
Silent Knight fast, 20 BPS 3/1, 4/1, 4/2, non-extended format
•
Silent Knight/Ademco slow 10 BPS 3/1, extended format
•
Silent Knight/Ademco fast 20 BPS 3/1, extended format
•
Sescoa, Franklin, DCI, Vertex, 20 BPS 3/1, 4/1, 4/2, non-extended
format
•
Sescoa, Franklin, DCI, Vertex, 20 BPS 3/1, extended format
•
Radionics 3/1, 4/2, non-extended format
•
Radionics 3/1, 4/2, non-extended with parity format
•
Radionics 3/1, extended format
•
Radionics 3/1, extended with parity format
•
SIA protocol by converting the corresponding SIA communications to
fit into CID protocol for presentation by the 3505
•
Silent Knight, Contact ID (Ademco)
Future releases may include:
•
Modem CFSK,
•
FBI Super Fast
•
Acron
•
Ademco High Speed
700289-0001 Rev. B 10/21
Digitize Inc.
2-3
