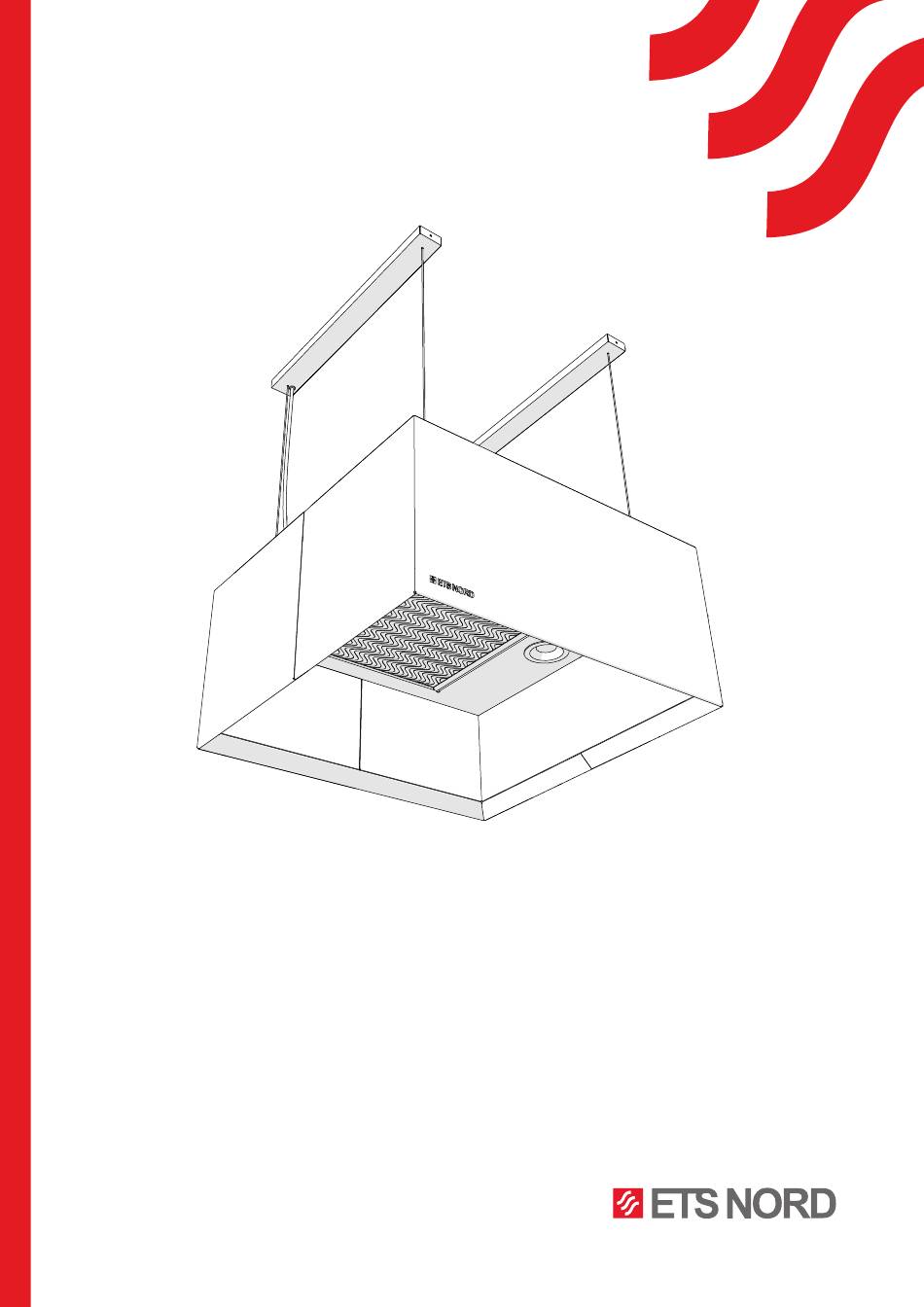

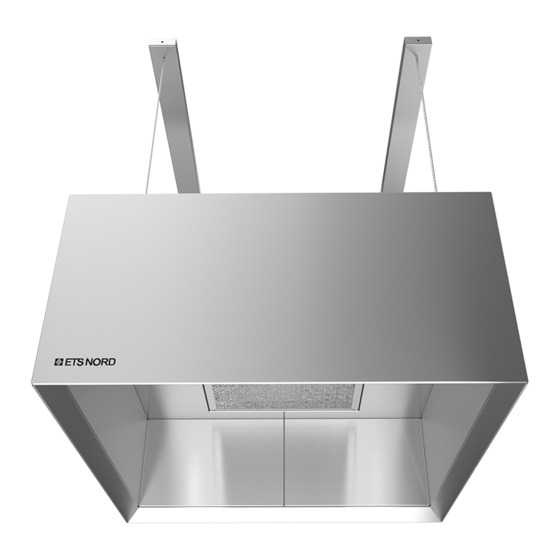

- Page 1 NORDcanopy HP Installation and maintenance manual www.nordcooking.com...
- Page 2 ® NORDcanopy | HP Table of Contents 1. Safety 2. Installing the canopy 3. Lighting connection 4. Kitchen Canopy maintenance www.etsnord.com RDM-063-0922...
- Page 3 ® NORDcanopy | HP 1 – Ceiling bracket 2 – Electric cable bushing 3 – Suspension wire 4 – LED spotlight 5 – Filter 6 – Electric cable bushing 7 – Suspension adjustment point 8 – Exhaust air connection (160mm) In the kit: A –...
- Page 4 ® NORDcanopy | HP Safety It is prohibited to place any additional items of weight on the top of the canopy. www.etsnord.com RDM-063-0922...
- Page 5 ® NORDcanopy | HP Installing the canopy Relative positions of ceiling bracket mounting and electrical cable pass-through holes 2.1 Fasten the ceiling brackets to the ceiling 6 x M4 ATTN! Choose appropriate fastening devices depending on the ceiling type Diameter of the mounting holes in the ceiling bracket are 4.5mm.
- Page 6 ® NORDcanopy | HP 2.2 Hanging the suspension wires www.etsnord.com RDM-063-0922...
- Page 7 ® NORDcanopy | HP 2.3 Hanging the canopy 2.4 Leveling the canopy After the canopy has been leveled and is in its correct final resting position, you may then snip off unused cabel. Images are for illustrative purposes. RDM-063-0922 We reserve the right to make changes.
- Page 8 ® NORDcanopy | HP Lighting connection www.etsnord.com RDM-063-0922...
- Page 9 ® NORDcanopy | HP Kitchen Canopy maintenance 4.1 Removing the grease filter 4.2 Spot LED lighting Spot LED lighting is fastened with spring clips on the top surface of the canopy ceiling. For replacing the luminaire, it should be pulled downward from the canopy ceiling.
- Page 10 ® NORDcanopy | HP 4.3 Kitchen Canopy Maintenance All internal and external surfaces of the kitchen canopy, including light fixtures, are cleaned using neutral cleaning agents. Carefully rinse the surfaces after cleaning, in order to avoid harmful interactions of cleaning agents and high temperatures.
- Page 11 ETS NORD AS Address: Peterburi tee 53 11415 Tallinn Estonia Phone: +372 680 7360 info@etsnord.ee www.etsnord.ee ETS NORD Finland Address: Pakkasraitti 4 04360 Tuusula Finland Phone: +358 40 18 42 842 info@etsnord.fi www.etsnord.fi ETS NORD Sweden Address: Järsjögatan 7 69235 Kumla...
