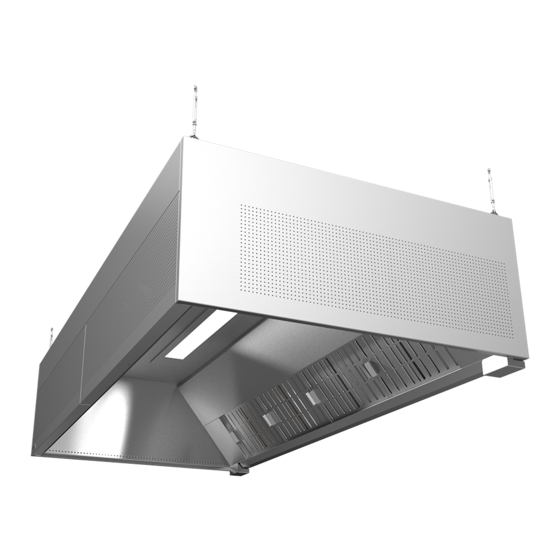

- Page 1 NORDcanopy HR/HZ Installation, use and maintenance manual...
-
Page 2: Table Of Contents
® HR/HZ Installation, use and maintenance Installation, use and maintenance manual 1. Removing the ceiling panel (Optional) ....................3 2. Hanging the kitchen canopy and ozone duct installation ..............4 3. Leveling the canopy ..........................4 4. Opening the front panel ........................4 5. Fastening kitchen canopy modules together ..................5 6. -
Page 3: Removing The Ceiling Panel (Optional)
® HR/HZ Installation, use and maintenance L+50 L-30 L+50 L1+25 L2+25 L2-30 Safety It is prohibited to hold or add additional weight on the top of the canopy. Removing the ceiling panel (Optional) With larger canopies, removing the center ceiling panel can provide better access for exhaust duct and insulation installation. -
Page 4: Hanging The Kitchen Canopy And Ozone Duct Installation
® HR/HZ Installation, use and maintenance Hanging the kitchen canopy and ozone duct installation Leveling the canopy Is performed for each module Opening the front panel The panel locks automatically. NOTE! At the end of the installation, make sure that the panels are correctly fixed. www.etsnord.com RDM-032-0923... -
Page 5: Fastening Kitchen Canopy Modules Together
® HR/HZ Installation, use and maintenance Fastening kitchen canopy modules together 5.1 Hanging the canopy modules Each module has to be suspended at least from four anchor points 5.2 Sequential connection M5/10 M5/10 M4/1 5x G 6x G 5.3 Installation of the ceiling panel between the modules 4x H Images are for illustrative purposes. -
Page 6: Installing Grease Collection Containers And Blind Panels For The Grease Filter Rail
® HR/HZ Installation, use and maintenance 5.4 Fastening sides back-to-back Requires additional bolt holes M5/10 M5/10 4x G 4x Ø6mm Installing grease collection containers and blind panels for the grease filter rail Installing HFK grease filters www.etsnord.com RDM-032-0923... -
Page 7: Installing The Ozonator
® HR/HZ Installation, use and maintenance Installing the ozonator Connecting and starting the ozonator is described in the "Ozonator Installation and Maintenance Manual". NOTE! The ozonator needs supply air to work! The ozonator must not be installed if there is no supply air duct connected to the canopy! Lighting connection NOTE! PERFORMED BY ELECTRICIAN Images are for illustrative purposes. -
Page 8: Measuring And Adjusting Airflow
HR/HZ Installation, use and maintenance 10. Measuring and adjusting airflow NORDcanopy canopies are fitted with measuring nozzles located inside the canopy. NOTE! During measurement, HFK all grease filters and blind plates must be in place and the front panel must be closed. -
Page 9: Accessories
® HR/HZ Installation, use and maintenance Calculation example: Supply air canopy L=2 meter with SPx2 front panel. Calculation of the supply air volume: Qs = 2 x 32,3 x √26 = 330 l/s Pressure in the supply air chamber is 26 Pa Front panel SPx2 k-factor is 32,3 Calculation of the exhaust air volume: Pressure in the exhaust air chamber is 22 Pa... -
Page 10: Replacing The Luminaires
Use the Helping Hand filter tool for easy filter handling. 12. Replacing the luminaires ATTN! PERFORMED BY ELECTRICIAN 12.1 Luminaires NORDcanopy kitchen canopys use integrated light fixtures with protection class IP 66. All luminaires are fitted with a power cable (3x1.5 mm, length 1,5 m) and a junction box. -
Page 11: Kitchen Canopy Maintenance
® HR/HZ Installation, use and maintenance 13. Kitchen canopy maintenance • All internal and external surfaces of the kitchen canopy, including lighting, are cleaned using neutral cleaning agents. Carefully rinse the surfaces after cleaning, in order to avoid harmful interactions of cleaning agents and high temperatures. ACCORDING TO •... - Page 12 ETS NORD AS Address: Peterburi tee 53 11415 Tallinn Estonia Phone: +372 680 7360 info@etsnord.ee www.etsnord.ee ETS NORD Finland Address: Pakkasraitti 4 04360 Tuusula Finland Phone: +358 401 842 842 info@etsnord.fi www.etsnord.fi ETS NORD Sweden Address: Järsjögatan 7 69235 Kumla...
