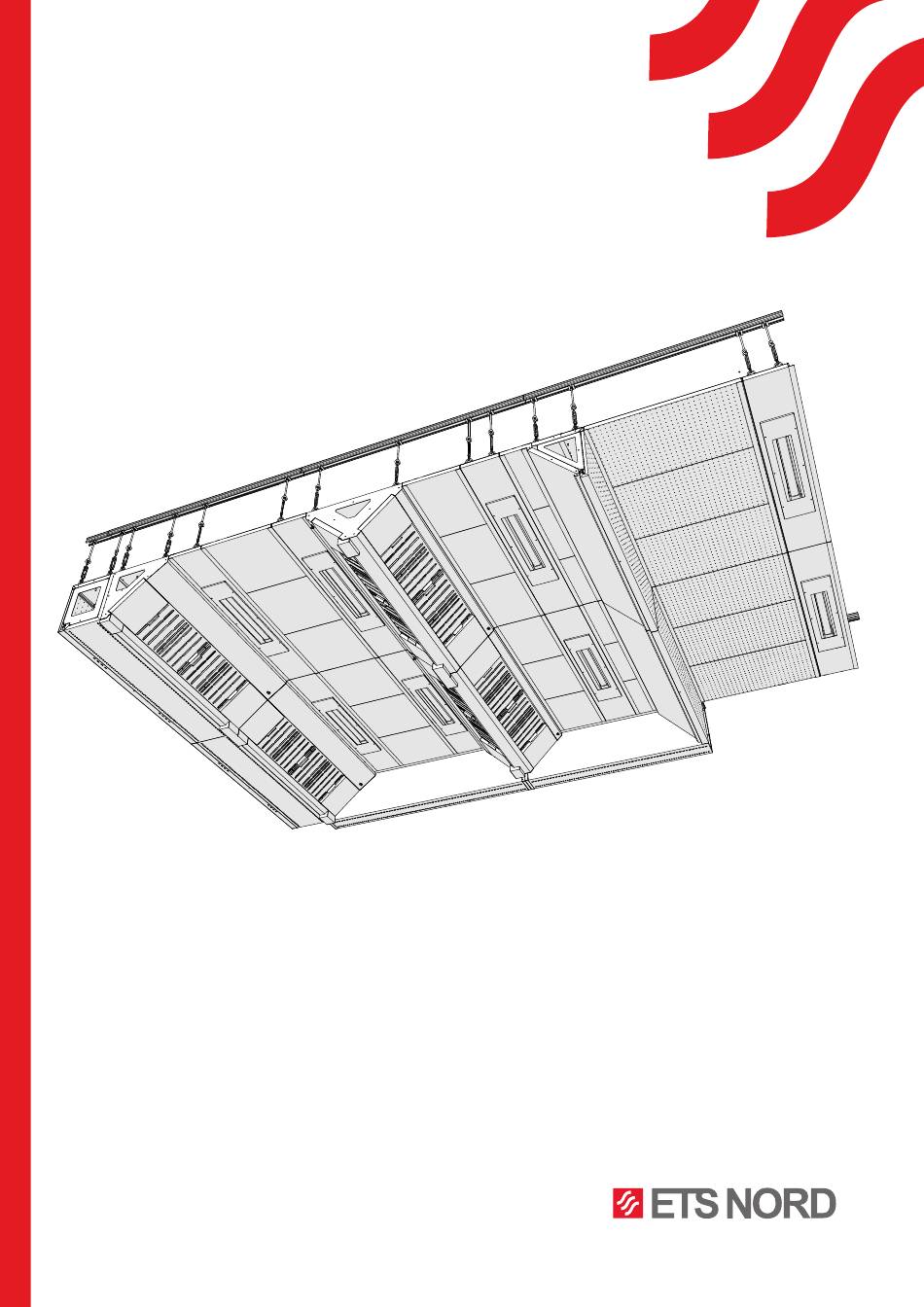

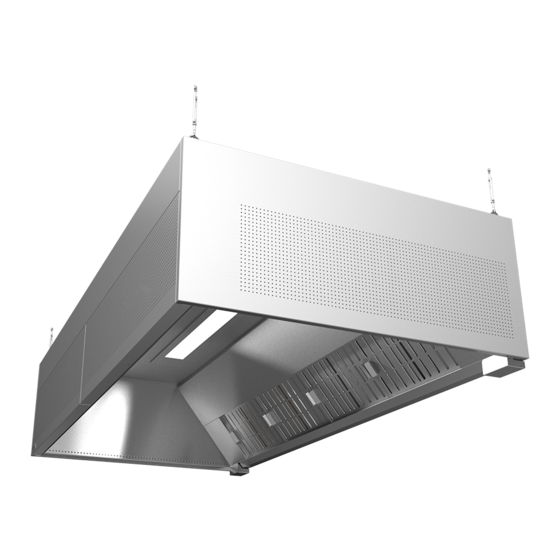

  • Page 1 NORDcanopy HC Ventilation Ceiling installation, use and maintenance manual www.nordcooking.com...

  • Page 2: Table Of Contents

    ® NORDcanopy | HC Table of Contents 1. HCE Exhaust Wall Module 2. HCI Exhaust V-Module 3. HCG AirGrip Module 4. HCV Vertical Supply Air Module 5. HCH Horizontal Supply Air Module 6. HCAH Horizontal Supply Air Module 7. Installing L-profiles 8.
  • Page 3 ® NORDcanopy | HC 1 – MEFA fastening system 6 – HCM Noise Absorbing Ceiling Panel 2 – HCE Exhaust Wall Module 7 – HCAH Horizontal Supply Air Module 3 – HCI Exhaust V-module 8 – HCL LED Light Module 4 –...

  • Page 4: Hce Exhaust Wall Module

    ® NORDcanopy | HCE HCE Exhaust Wall Module 1 – Suspension points 2 – Exhaust air connection 3 – Adjustment plate for exhaust air 4 – HFK Grease Filter 5 – Airflow measuring nozzles 6 – Blind plate for grease filter rail 7 –...

  • Page 5: Hci Exhaust V-Module

    ® NORDcanopy | HCI 1.2 Sequential connection of the HCE Exhaust Wall Modules 6xM5 HCI Exhaust V-Module 1 – Suspension points 2 – Exhaust air connection 3 – Adjusting plate for exhaust air 4 – HFK Grease Filter 5 – Airflow measuring nozzles 6 –...
  • Page 6 ® NORDcanopy | HCI 2.1 Hanging the HCI Exhaust V-Module 2.2 Sequential connection of HCI Exhaust V-Modules 7xM5 www.etsnord.com RDM-57-0222...

  • Page 7: Hcg Airgrip Module

    ® NORDcanopy | HCG HCG AirGrip Module 1 – Suspension points 2 – Housing hatch 3 – Supply air connection 4 – Horisontal AirGrip system 5 – Vertical AirGrip system 3.1 Hanging the HCG AirGrip Module Images are for illustrative purposes.
  • Page 8 ® NORDcanopy | HCG 3.2 Sequential connection of HCG AirGrip Modules 4xM5 3.3 Connecting the HCG AirGrip Module to the ventilation ceiling modules Number of screws: HCE - 6 pcs HCI - 7 pcs HCG - the holes must be...

  • Page 9: Hcv Vertical Supply Air Module

    ® NORDcanopy | HCV HCV Vertical Supply Air Module 1 – Suspension points 2 – Front panel lock 3 – Supply air connection 4 – Supply air adjusting plate 5 – Front panels 4.1 Opening the HCV Vertical Supply Air Module front panel Images are for illustrative purposes.
  • Page 10 ® NORDcanopy | HCV 4.2 Hanging the HCV Vertical Supply Air Module 4.3 Sequential connection of HCV Vertical Supply Air Modules 4xM5 www.etsnord.com RDM-57-0222...

  • Page 11: Hch Horizontal Supply Air Module

    ® NORDcanopy | HCH HCH Horizontal Supply Air Module 1 – Suspension points 2 – Supply air connection 3 – Supply air adjustment plate 4 – Front panel 5 – AirGrip air nozzle system 6 – Auxiliary supply opening 7 – Front panel lock 5.1 Opening the HCH Horizontal Supply Air Module front panel...
  • Page 12 ® NORDcanopy | HCH 5.2 Hanging the HCH Horizontal Supply Air Module 6xM5 5.3 Sequential connection of HCH Horizontal Supply Air Modules 6xM5 www.etsnord.com RDM-57-0222...

  • Page 13: Hcah Horizontal Supply Air Module

    ® NORDcanopy | HCAH HCAH Horizontal Supply Air Module 1 – Suspension points 2 – Supply air connection 3 – Supply air adjustment plate 4 – Front panel 5 – Auxiliary supply openings 6 – Front panel lock 7 – Vertical AirGrip system 8 –...
  • Page 14 ® NORDcanopy | HCAH 6.2 Hanging the HCAH Horizontal Supply Module 6.3 Sequential connection of HCAH Horizontal Supply Modules 3xM5 www.etsnord.com RDM-57-0222...

  • Page 15: Installing L-Profiles

    ® NORDcanopy | HC Installing L-profiles 7.1 Installing L-profiles on end surfaces 7.2 Installing L-profiles on the sides of the ventilated ceiling chambers Images are for illustrative purposes. RDM-57-0222 We reserve the right to make changes.

  • Page 16: Hcl Led Light Module

    ® NORDcanopy | HCL 7.3 Connecting the L-profile to the HCV Supply Air Modul HCL LED Light Module 1 – Suspension points 2 – LED luminaire 3 – Openable lighting case 250-500 8.1 Connecting L-profiles to the HCL LED Light Module www.etsnord.com...
  • Page 17 ® NORDcanopy | HCL 8.2 Exhaust side HCL LED Light Module installation 8.3 Installing L-profiles on the HCL LED Light Module 8.4 Installing HCL LED Light Modules Images are for illustrative purposes. RDM-57-0222 We reserve the right to make changes.

  • Page 18: Hcf Ceiling Panel

    ® NORDcanopy | HCF/HCM HCF Ceiling Panel 9.1 Installing the HCF Ceiling Panel 10. HCM Noise Absorbing Ceiling Panel 10.1 Installing the HCM Noise Absorbing Ceiling Panel www.etsnord.com RDM-57-0222...
  • Page 19 ® NORDcanopy | HC 11. Installing the Ozone Generator 11.1 Attaching the OZ fitting 11.2 Installing the Ozone Generator on the Exhaust Module Images are for illustrative purposes. RDM-57-0222 We reserve the right to make changes.
  • Page 20 F2- Ozone Module + Control Panel AC relay Motor, exhaust ventilation fan systems + motor drive For further installation and technical information, please consult the product manuals provided with your shipment, or contact your ETS NORD representative to obtain all available documentation www.etsnord.com RDM-57-0222...

  • Page 21: Corner Details

    ® NORDcanopy | HC 12. Corner Details HCAE Inner Corner Exhaust HCAS Inner Corner Supply HCAV Outer Corner Supply Images are for illustrative purposes. RDM-57-0222 We reserve the right to make changes.
  • Page 22 ® NORDcanopy | HC 12.1 Installing Corner Modules 6xM5 12.2 Connecting the Corner Module to the ventilation ceiling www.etsnord.com RDM-57-0222...

  • Page 23: Additional Components

    ® NORDcanopy | HC 13. Additional Components blind plate for grease filter rail 13.1 Installation of the 13.2 HFK Grease Filter and grease collection container installation 13.3 Using the Grease Filter removal tool FET ”Helping Hand” Images are for illustrative purposes.

  • Page 24: Measuring And Adjusting Airflow

    ® NORDcanopy | HC 14. Measuring and adjusting airflow ATTN! During measurement, HFK all Grease Filters and blind plates must be in place and the front panel must be closed. In order to adjust airflow, the position of the adjusting plate is adjusted.
  • Page 25 ® NORDcanopy | HC 14.3 Adjusting the HCV Supply Air Module K-factor (supply air) Dimensions Open 50% open Closed 1000 x 500 46,6 33,8 14,9 1500 x 500 90,9 63,9 29,5 K-factor (exhaust air) Dimensions Open 50% open Closed 1000 x 500...

  • Page 26: Replacing The Luminaires

    NORDcanopy | HC 15. Replacing the luminaires NORDcanopy Ventilation Ceiling has integrated light fixtures. All luminaires are fitted with a power cable (3x1.5 mm, length 1,5 m) and a junction box. To remove luminaires, fastening screws of the protective glass are unfastened and the glass is removed.
  • Page 27 ETS NORD AS Address: Peterburi tee 53 11415 Tallinn Estonia Phone: +372 680 7360 info@etsnord.ee www.etsnord.ee ETS NORD Finland Address: Pakkasraitti 4 04360 Tuusula Finland Phone: +358 401 842 842 info@etsnord.fi www.etsnord.fi ETS NORD Sweden Address: Järsjögatan 7 69235 Kumla...
