Summary of Contents for ETS NORD NORDfan SEPU-400

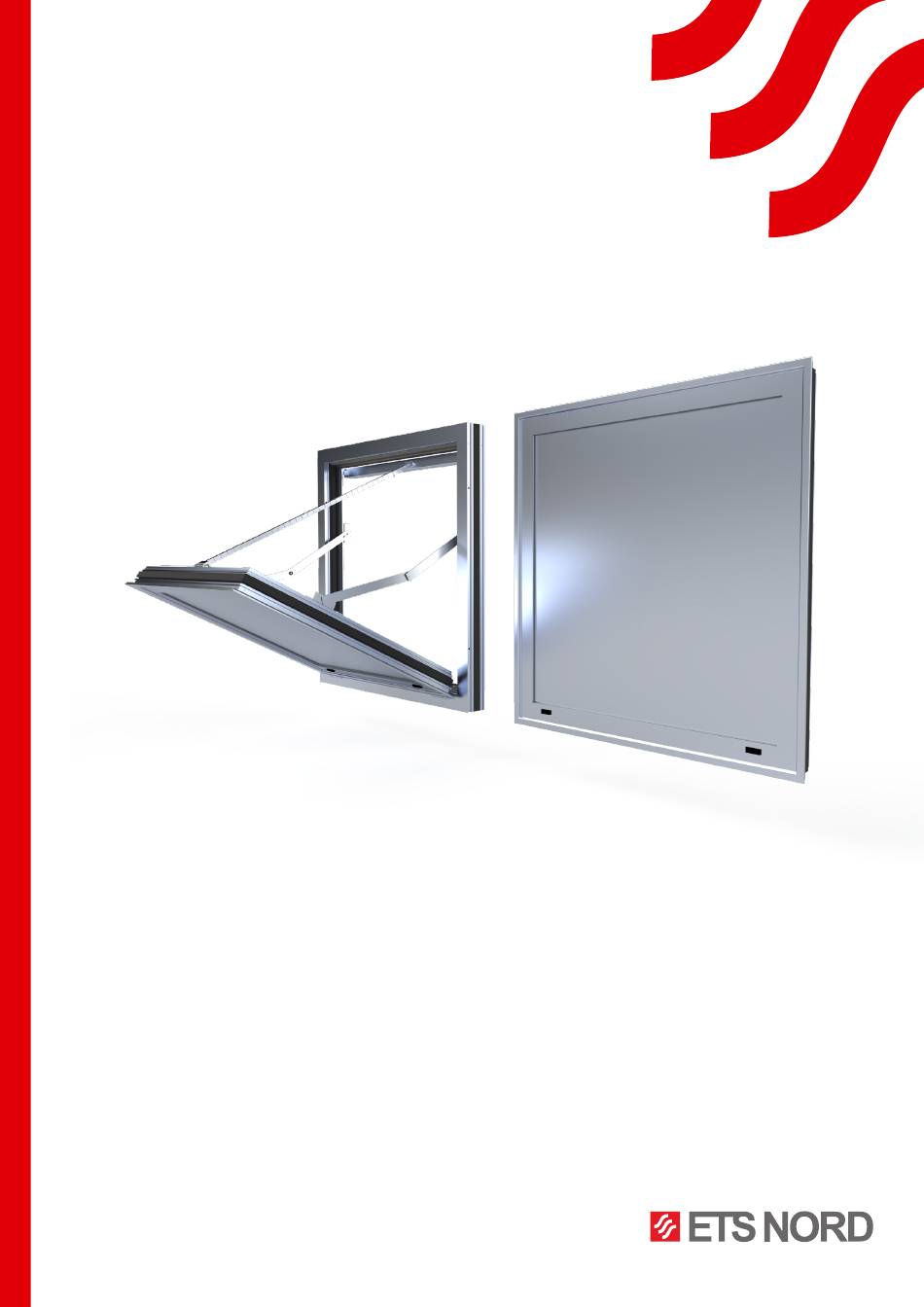

- Page 1 NORDfan SEPU Wall Fan - Installation, Maintenance and Commissioning Instructions...
-
Page 2: Table Of Contents
® NORDfan | SEPU Content Product description and delivery contents Installation Size of the hole and frame Fixing the frame Fan installation Manual opening Dimensions Motor power and currents Fixing additional cladding to SEPU wall hatch Max weights of the cladding Cladding fixing points Electrical installation Opening device... -
Page 3: Product Description And Delivery Contents
The delivery contents are illustrated in figure 1. The unit is delivered in one platform. Safety switches are sold separately. ETS NORD Smoke Extraction Control unit (SPMK+SPOK) completes the SEPU Wall Fan unit as a one function- ing Smoke Extraction system. -
Page 4: Fixing The Frame
® NORDfan | SEPU Fixing the frame Ø≤7mm The hatch will be attached to the wall by screws. The screws are not included to the delivery. The frame has holes for the screws. The gap between the hatch and the wall must be filled with suitable material. Install the molding outside over the fulfilled gap. -
Page 5: Fan Installation
® NORDfan | SEPU Fan installation Install the mounting feet to the fan with bolts. Bolts are included in the delivery. Attach the fans to the adapter with screws. Screws are not included in the delivery. Note that the adapter can´t hold the weight of the fan so support structure is needed before installing the fan. -
Page 6: Manual Opening
® NORDfan | SEPU Manual opening SEPU hatch can be opened manually by pulling from the opening wire. Open the adapter cover and pull the wire. Dimensions SEPU-400 737,6 687,6 16,5 SEPU-500 787,6 787,6 66,5 SEPU-630 1040 1040 1087,6 1087,6 66,5 1010 1010 SEPU-710... -
Page 7: Motor Power And Currents
® NORDfan | SEPU Motor power and currents Power Current Starting current Gable gland 1,5 kW 3,2 A 21,2 A 2xM25 2,2 kW 4,6 A 29,6 A 2xM25 3,0 kW 5,9 A 41,4 A 2xM25 3,0 kW 6,1 A 38,6 A 2xM25 5,5 kW 10,3 A... -
Page 8: Electrical Installation
® NORDfan | SEPU Electrical installation ETS Smoke Extraction Motor unit Electricity supply from a certified network! At least before the property's main switch. ETS Smoke Extraction Control unit SEPU Wall Fan unit Smoke Extraction Control unit (SPMK+SPOK) completes the SEPU Wall Fan unit as one properly functioning Smoke Extraction system. -
Page 9: Commissioning
- Let the fan run 30 minutes minimum so the bearings will be lubricated correctly. Spare parts Contact ETS NORD. Errors More instructions are available in ETS NORD fan installation, maintenance, and commissioning instructions. Contact ETS NORD Images are for illustrative purposes. RDT-077-0424... -
Page 10: Product Code
® NORDfan | SEPU Product code SEPU aaaa Product aaaa = Fan diameter 400-1250 mm bbb = Motor power 015 - 1,5kW 300 - 30kW Example: SEPU 1000-110 Fan diameter = 1000 mm Motor power = 11 kW www.etsnord.com RDM-077-0424... - Page 11 ETS NORD AS Address: Peterburi tee 53 11415 Tallinn Estonia Phone: +372 680 7360 info@etsnord.ee www.etsnord.ee ETS NORD Finland Address: Pakkasraitti 4 04360 Tuusula Finland Phone: +358 401 842 842 info@etsnord.fi www.etsnord.fi ETS NORD Sweden Address: Järsjögatan 7 69235 Kumla...
