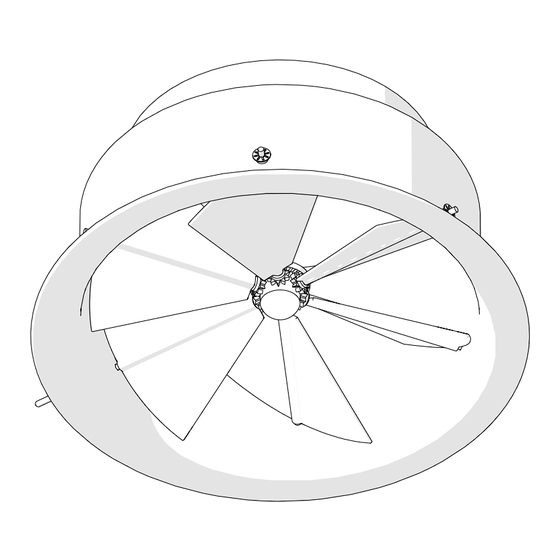

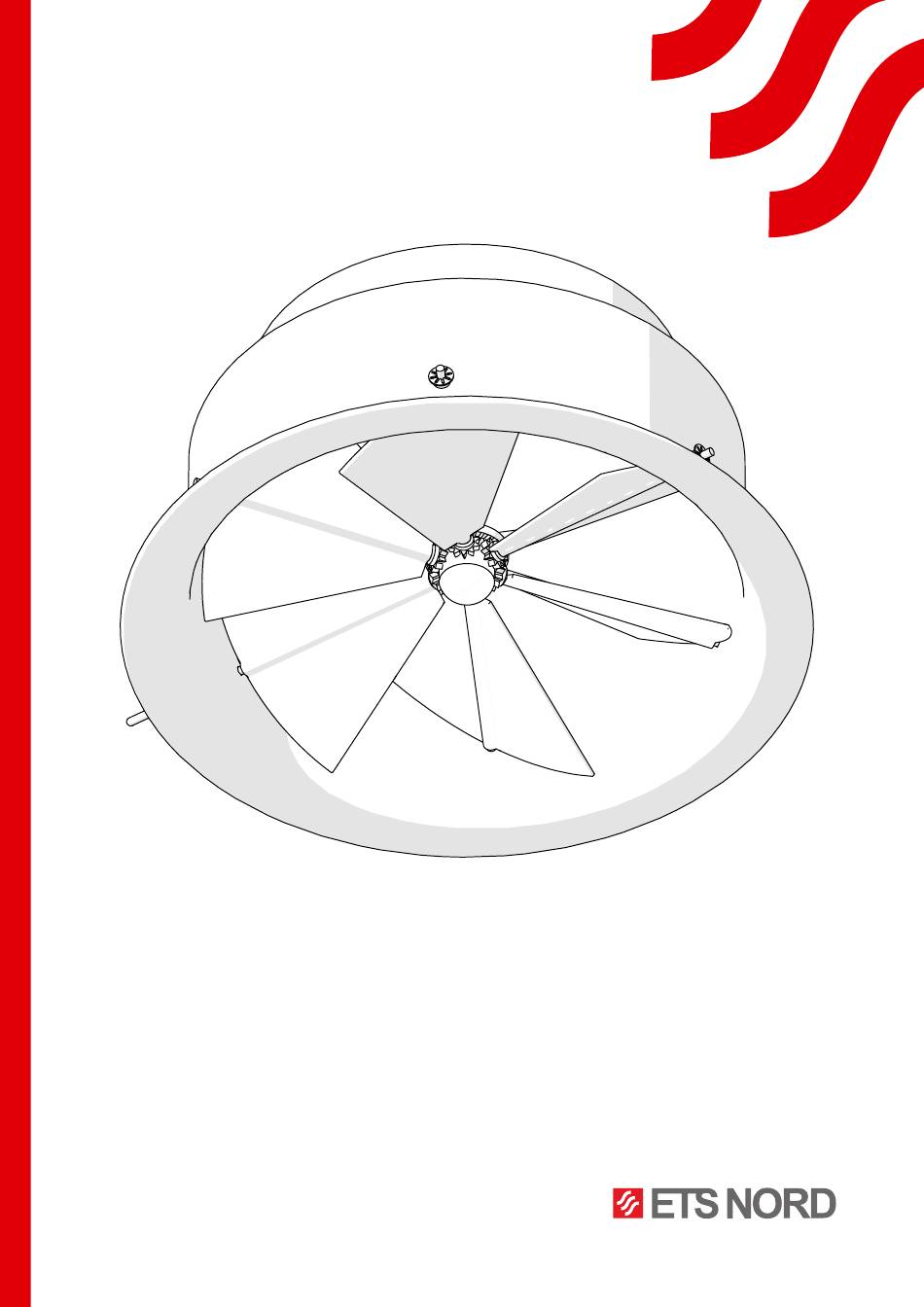

- Page 1 NORDdiffuser DPL/DPLS/DPLT installation manual...
-
Page 2: Installation
® NORDdiffuser | DPL 1. DPL/DPLS/DPLT dimensions Nominal size Ød 2. Installation 2.1 Connecting to duct Min x 3 www.etsnord.com RDM-107-0324... - Page 3 ® NORDdiffuser | DPL 2.2 Connecting to KRI damper 2.3 Connecting to plenum Min x 3 Images are for illustrative purposes. RDM-107-0324 We reserve the right to make changes.
-
Page 4: Adjusting The Blades
® NORDdiffuser | DPL 3. Minimum distances from T-pieces and duct bends SKDM 4. Adjusting the blades 4.1 Manual adjustment Adjustment The adjustment of the blades inclination should be carried out using both hands simultaneously as Don’t touch the middle part! shown in the picture Cooling Heating... - Page 5 ® NORDdiffuser | DPL Cooling mode Heating mode Cooling mode Heating mode 4.2 Adjustment with actuator Images are for illustrative purposes. RDM-107-0324 We reserve the right to make changes.
-
Page 6: Electrical Installation
® NORDdiffuser | DPL 5. Electrical installation Wire colours: 1 = black 2 = red 3 = white 5 = orange Supply from isolating transformer. Supply from isolating transformer. Wiring diagrams: Parallel connection of other actuators possible. Parallel connection of other actuators possible. AC/DC 24V, modulating Observe the performance data. - Page 7 ® NORDdiffuser | DPL 6. Cleaning Images are for illustrative purposes. RDM-107-0324 We reserve the right to make changes.
- Page 8 ETS NORD AS Address: Peterburi tee 53 11415 Tallinn Estonia Phone: +372 680 7360 info@etsnord.ee www.etsnord.ee ETS NORD Finland Address: Pakkasraitti 4 04360 Tuusula Finland Phone: +358 40 184 2842 info@etsnord.fi www.etsnord.fi ETS NORD Sweden Address: Järsjögatan 7 692 35 Kumla...
