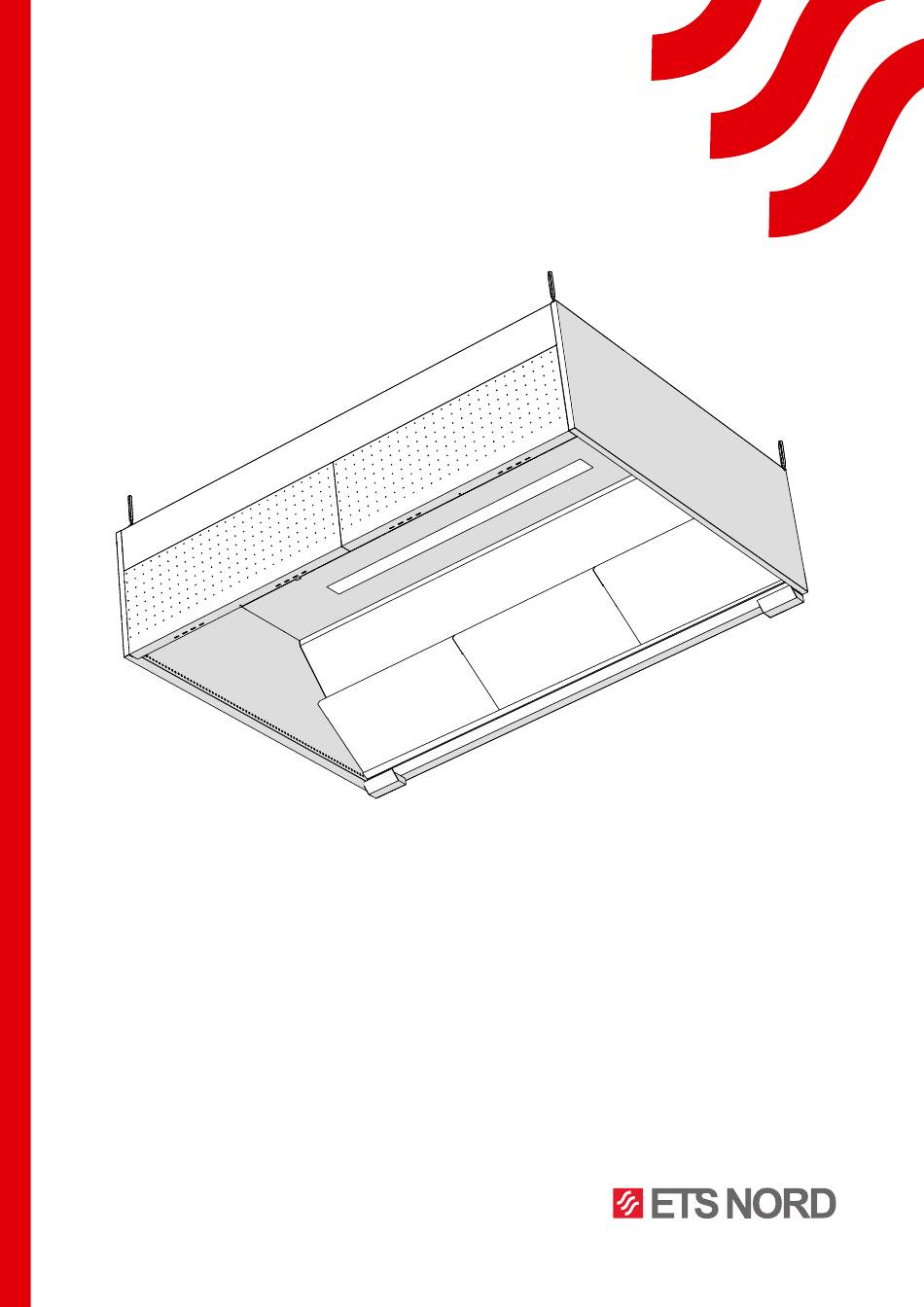

- Page 1 NORDcanopy HV Installation, use and maintenance manual www.nordcooking.com...
-
Page 2: Table Of Contents
® NORDcanopy | HV Installation, use and maintenance manual 1. In the kit 2. The lighting panel 3. Hanging the kitchen canopy 4. Leveling the canopy 5. Opening the front panel 6. Fastening kitchen canopy sections together 7. Installing and removing grease collection containers 8. -
Page 3: In The Kit
® NORDcanopy | HV 1. In the kit 1 – UV lamps 9 – LED Light 2 – UV safety switches and protection shield holder 10 – Ceiling panel 3 – HFK grease filter 11 – Supply Air Connection 4 – UV Protection shield 12 –... - Page 4 ® NORDcanopy | HV 1.1 Measurements Safety It is prohibited to hold or add additional weight on the top of the canopy. www.etsnord.com RDM-090-0224...
-
Page 5: The Lighting Panel
® NORDcanopy | HV 2. The lighting panel Fastening screws must be removed during the installation. Removing the lighting panel provides access for exhaust duct, insulation installation and electrical connections or changing the lighting. 3. Hanging the kitchen canopy Images are for illustrative purposes. -
Page 6: Leveling The Canopy
® NORDcanopy | HV 4. Leveling the canopy Leveling is performed for each section. 5. Opening the front panel The panel locks automatically. NB! At the end of the installation, make sure that the panels are correctly fixed. 6. Fastening kitchen canopy sections together 6.1 Hanging the canopy sections... - Page 7 ® NORDcanopy | HV 6.2 Sequential connection Each section has to be suspended at least from four anchor points. M5/10 5x G 6x G 6.3 Installation of the ceiling panel between the sections M5/10 M4/16 M5/10 4x H 6.4 Fastening sides back-to-back Requires additional bolt holes.
-
Page 8: Installing And Removing Grease Collection Containers
® NORDcanopy | HV 7. Installing and removing grease collection containers 8. Installing HFK grease filters and UV protection shields www.etsnord.com RDM-090-0224... -
Page 9: Installing The Uv Control Unit
® NORDcanopy | HV 9. Installing the UV Control Unit Connecting and starting the UV system is described in the “UV Cleaning System Installation Guide”. NB! The UV Control Unit needs supply air to work. The UV Control Unit must not be installed if there is no supply air duct connected to the canopy! Images are for illustrative purposes. -
Page 10: Lighting Connection
NB! Performed by electrician. 11. Measuring and adjusting airflow NORDcanopy canopies are fitted with measuring nozzles located inside the canopy. NB! During measurement, all HFK grease filters and protection shields must be in place and the front panel must be closed. -
Page 11: Accessories
® ® NORDcanopy | HV K-factor for measuring airflow Qv=k√∆pm • Exhaust K-factor = 16,6 per filter K-factor, per 1 m of front panel Supply air SP×0 SP×1 SP×2 SP×3 SP×K Front panel* 19,2 32,3 50,4 AirGrip Side panel* * The supply panel k-factors above include the “AirGrip” air capture system K-factor. -
Page 12: Replacing The Luminaires
13. Replacing the luminaires 13.1 Luminaires NORDcanopy kitchen canopies use integrated light fixtures with protection class IP66. All luminaires are fitted with a power cable (3x1.5 mm, length 1,5 m) and a junction box. To remove luminaires, bend the frame points with pliers and lift the lamp out. -
Page 13: Kitchen Canopy Maintenance
® NORDcanopy | HV 14. Kitchen canopy maintenance All internal and external surfaces of the kitchen canopy, including light fixtures, are cleaned using neutral cleaning agents. Carefully rinse the surfaces after cleaning, in order to avoid harmful interactions of cleaning agents and high temperatures. To... - Page 14 21363 Malmö Sweden Phone: +46 40-94 68 70 Address: Förrådsvägen 5 151 58 Södertälje Sweden Phone: +46 8 550 301 40 info@etsnord.se www.etsnord.se ETS NORD International info@etsnord.com www.etsnord.com ETS NORD Ventilation Manufacturing LLC UAE Sepin Rayo sepin.rayo@etsnord.com +971 5257 02916...
