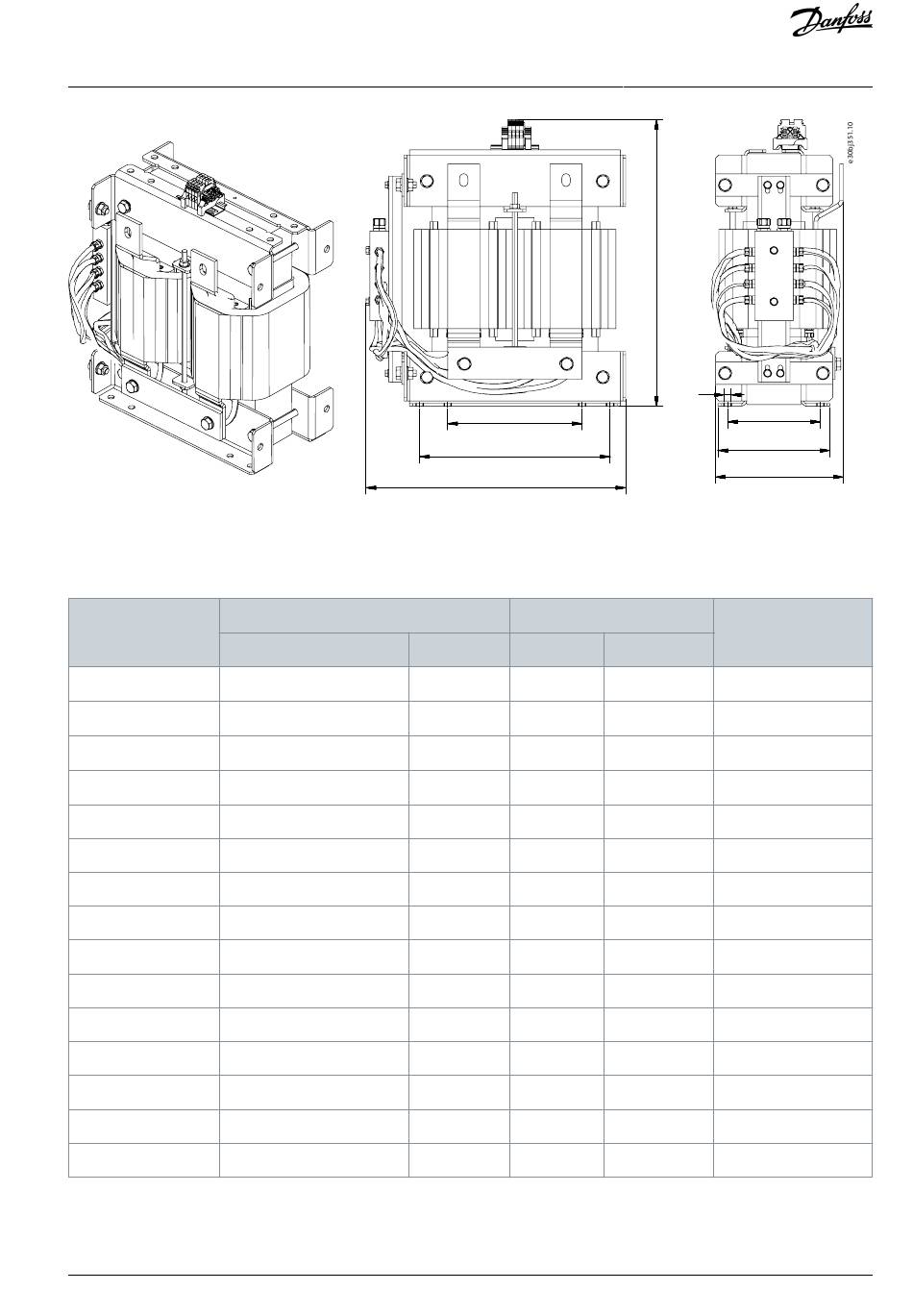

Illustration 9: Dimensions of the Liquid-cooled Inductors

7.6 Terminal and Torque Specifications

Table 14: DC Filter Terminal Sizes and Tightening Torques
Filter type code Connection size
Terminal
LDC-0010-6-0-Axx ≤ 6 mm
LDC-0020-5-0-Axx ≤ 6 mm
LDC-0030-6-0-Axx ≤ 6 mm
LDC-0050-6-0-Axx Busbar 1 x D9, M8
LDC-0092-5-0-Axx Busbar 1 x D9, M8
LDC-0092-6-0-Axx Busbar 1 x D9, M8
LDC-0092-5-0-Bxx Busbar 1 x D9, M8
LDC-0170-6-0-Axx Busbar 1 x D11, M10
LDC-0270-5-0-Axx Busbar 1 x D11, M10
LDC-0400-6-0-Axx Busbar 1 x D11, M10
LDC-0400-6-0-Bxx Busbar 1 x D11, M10
LDC-0420-5-0-Axx Busbar 1 x D13, M12
LDC-0540-6-0-Bxx Busbar 1 x D13, M12
LDC-0900-5-0-Bxx Busbar 2 x D13, 2 x M12
LDC-0160-6-0-Cxx Busbar 1 x D9, M8
Danfoss A/S © 2023.01
Grounding
2
M6
2
M6
2
M6
M8
M8
M8
M8
M10
M10
M10
M10
M10
M10
M10
M10
C
H
E
A
Connection Torque [Nm]
Terminal Grounding
1.8 9
1.8 9
1.8 9
20 20
20 20
20 20
20 20
40 40
40 40
40 40
40 40
70 40
70 40
70 40
20 40
AJ377845348678en-000101 / 172F4785 | 23
Specifications
G
F
D
B
Mounting location
Base
Base
Base
Base
Base
Base
Base
Base
Base
Base
Base
Base
Base
Base
Base
