- Page 1 K&F NOMOS XLC Version 4.6 User's Manual Released: 15.11.2017 Translation of the original instructions Important Information, Please Read Before Use! KLING & FREITAG GmbH Wohlenbergstrasse 5 D-30179 Hannover TEL +49 (0) 511 96 99 70 FAX +49 (0) 511 67 37 94...
-
Page 3: Table Of Contents
System Requirements Safety Instructions Safety Instructions for Stacked Setups Protecting the Speakers / Operating Safety NOMOS XLC combined with other K&F tops. Stacking the Subwoofers Cardioid Arrays with Controller CD 44 Setup instructions for a cardioid array LSBlocks for cardioid useNOMOS XLC... -
Page 4: Introduction
Thank you for purchasing a KLING & FREITAG product. To guarantee a trouble-free operating of the equipment and to allow your KLING & FREITAG NOMOS XLC system to achieve its full potential read the user's manual carefully before use. This item is a quality accessory for the NOMOS XLC speaker system. -
Page 5: Product Description

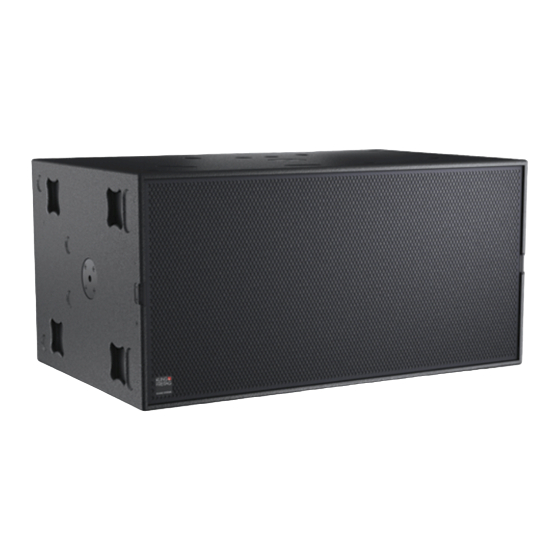

User's Manual K&F NOMOS XLC Product Description Items Included • Cardioid Bass Speaker NOMOS XLC • (1x) User manual Components Stacking grooves (8x) , adjacent: plastic glider Butterfly handles (8x) locking profile speaker enclosure front grille with acoustic foam rear grille with acoustic foam... -
Page 6: System Requirements
User's Manual K&F NOMOS XLC System Requirements Lab.gruppen IPD 2400 K&F PLM+ 20k44 (SystemAmp, ProRental) K&F PLM+ 12k44 (SystemAmp, ProRental) with K&F Connector Panel CP+ Terminalpanel (optional) K&F D200:4 (SystemAmp, InstallSound) K&F D120:4 (SystemAmp, InstallSound) K&F D80:4 (SystemAmp, InstallSound) K&F SystemRack... -
Page 7: Safety Instructions For Stacked Setups
Make sure that the stacking feet of subwoofers stacked on top of one another are securely positioned in the grooves of the lower speaker. If you place a top speaker on a NOMOS XLC you must always strap the speakers to one another and secure them from falling over. -
Page 8: Nomos Xlc Combined With Other K&F Tops
NOMOS XLC combined with other K&F tops. The NOMOS XLC can be combined with K&F top speakers using the controller K&F CD 44. • To do so, select the desired LS blocks for the top in the Controller CD 44 or systemamp TOPAS, and combine these with the desired LS block for the NOMOS XLC. -
Page 9: Stacking The Subwoofers
Warning Cardioid Arrays with Controller CD 44 The subwoofer NOMOS XLC is a cardioid loudspeaker. A cardioid array results in an increase of sound pressure towards the front because of the rear-facing subwoofer. In the rear area (cardioid) or in the lateral side area (hypercardioid), on the other hand, the sound pressure is clearly reduced. - Page 10 User's Manual K&F NOMOS XLC When cardioid speakers are put on the floor, ensure that there is always a distance of at least 40 cm between and over the speakers. We recommend a safe distance to a possible obstruction of at least one meter (1 m).
-
Page 11: Lsblocks For Cardioid Usenomos Xlc
NOMOS LT H-R60Hz Fuse in the NOMOS XLC To increase the operating safety of the NOMOS XLC, the subwoofers are equipped with fuses at the signal input. These fuses reduce the risk of consequential damage resulting from a short circuit (i.e. charred cables / connectors / fire damage). -
Page 12: Connection
User's Manual K&F NOMOS XLC Connection The operating safety and the highest-possible performance is only guaranteed in conjunction with the K&F Topas or K&F SystemRack. Terminal assignment FRONT SPEAKERS REAR SPEAKER SPEAKON CONNECTORS KLING & FREITAG GMBH © 2017 Version 4.6... -
Page 13: Cabling A K&F System Rack
User's Manual K&F NOMOS XLC Cabling a K&F System Rack KLING & FREITAG GMBH © 2017 Version 4.6 Page 13 of 22... -
Page 14: Connecting The Nomos Xlc
The following connecting diagram shows an example with the K&F CD 44 Routing '1 in 4 out'. A maximum of 3 NOMOS XLC subwoofers can be driven by one K&F SystemRack. If you want to use 3 NOMOS XLC subwoofers with a K&F SystemRack you will need the Break Out Box 'K&F BOB-C' available as an accessory. -
Page 15: Dimensions Nomos Xlc
User's Manual K&F NOMOS XLC Dimensions NOMOS XLC Weight: 95.0 kg KLING & FREITAG GMBH © 2017 Version 4.6 Page 15 of 22... -
Page 16: Measuring Diagrams
User's Manual K&F NOMOS XLC 10. Measuring Diagrams Polar Patterns Cardioid 0° 0° 330° 330° 30° 30° -12 dB -12 dB 300° 300° 60° 60° -24 dB -24 dB 40 Hz 80 Hz 50 Hz 100 Hz 270° 90° 270°... -
Page 17: Technical Specifications
1) Pink noise 40 – 250 Hz, 2 h; 2) as 1) but with 50% duty cycle Measurings taken with the K&F SystemRack. The K&F SystemRack is required for operation of the K&F NOMOS XLC. KLING & FREITAG GMBH © 2017 Version 4.6... -
Page 18: Ec Declaration Of Conformity
User's Manual K&F NOMOS XLC 12. EC Declaration of Conformity Manufacturer: Kling & Freitag GmbH Junkersstraße 14 30179 Hannover Germany Authorized representative for the Kling & Freitag GmbH compilation of the technical documents: Abt. Entwicklung 049 (0)511 96997-50 Germany Product:... -
Page 19: Accessories
Protective Cover NOMOS XLC Transport Cover NOMOS XLC K&F BOB-C: Speaker signal distributor, 1 x 8-pin into 3 x 4-pin. For operations of 3 x NOMOS XLC with a K&F SystemRack. KLING & FREITAG GMBH © 2017 Version 4.6 Page 19 of 22... -
Page 20: Transportation And Storage
The housing of the speaker is protected against short-term moisture by a coating. despite, be sure to store, transport, and use the accessories in dry environments only. The NOMOS XLC System is not designed for long-term use in a corrosive environment. -
Page 21: All Other Countries
User's Manual K&F NOMOS XLC Contact your retailer or the local authorities for information on the regulations applicable in any EU member state (except Germany). 15.1.3 All Other Countries Contact your retailer or the local authorities for information on the regulations applicable in any country not listed above. - Page 22 User's Manual K&F NOMOS XLC INDEX • Accessories........................... 18 • Assignment..........................12 • Cardioid............................9 • Combination..........................8 • Components...........................5 • Connection..........................12,14 • Dimensions...........................15 • Disposal............................20 • EC Declaration of Conformity....................18 • Fuse...............................11 • InstallSound........................... 6 • Items Included..........................5 •...
