Summary of Contents for KLING & FREITAG NOMOS XLC
- Page 1 K&F NOMOS XLC Version 4.3 Operating Instructions Released: 18.10.2016 Translation of the original instructions Important Information, Please Read Before Use! KLING & FREITAG GmbH Junkersstraße 14 D-30179 Hannover TEL +49 (0) 511 96 99 70 FAX +49 (0) 511 67 37 94...
-
Page 3: Table Of Contents
Safety Instructions Safety Instructions for Stacked Setups Protecting the Speakers / Operating Safety Stacking the Subwoofers NOMOS XLC combined with other K&F tops. Cardioid Arrays with CD 44 Setup instructions for a cardioid array LSBlocks for cardioid useNOMOS XLC Fuse in the NOMOS XLC... -
Page 4: Introduction
Thank you for purchasing a KLING & FREITAG product. To guarantee a trouble-free operating of the equipment and to allow your KLING & FREITAG NOMOS XLC system to achieve its full potential read the operating instructions carefully before use. This item is a quality accessory for the NOMOS XLC speaker system. -
Page 5: Product Description

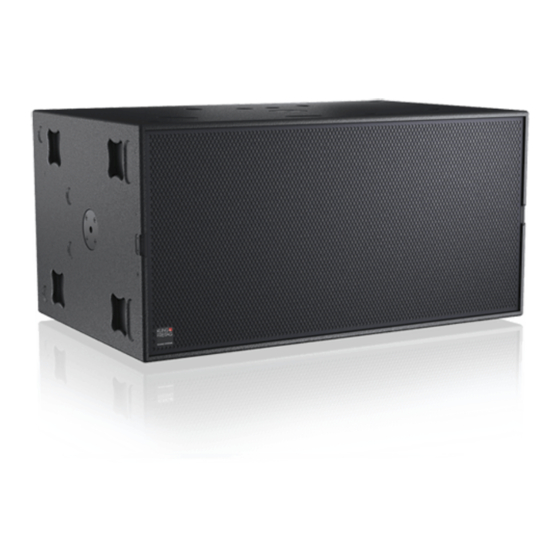

Operating Instructions K&F NOMOS XLC Product Description Items Included • Cardioid Bass Speaker NOMOS XLC • (1x) Operating Instructions Overview of components Stacking grooves (8x) , adjacent: plastic glider Butterfly handles (8x) locking profile speaker enclosure front grille with acoustic foam... -
Page 6: Safety Instructions
Operating Instructions K&F NOMOS XLC for high power configurations with NOMOS subwoofer Connector Panel CP 4: These components will be referred to as 'K&F SystemRack' in these operating instructions. Safety Instructions For commercial use as specified in this document only! To prevent personal injury and damage, be sure to securely place or suspend the speaker as specified in the locally applicable standards. -
Page 7: Protecting The Speakers / Operating Safety
Make sure that the stacking feet of subwoofers stacked on top of one another are securely positioned in the grooves of the lower speaker. If you place a top speaker on a NOMOS XLC you must always strap the speakers to one another and secure them from falling over. - Page 8 You must additionally secure vertically standing stacked NOMOS XLC systems from falling since the structural safety is not guaranteed, otherwise. KLING & FREITAG GMBH © 2016 Version 4.3...
-
Page 9: Nomos Xlc Combined With Other K&F Tops
K&F NOMOS XLC NOMOS XLC combined with other K&F tops. The NOMOS XLC can be combined with K&F top speakers using the controller K&F CD 44. • To do so, select the desired LS blocks for the top in the Controller CD 44 or systemamp TOPAS, and combine these with the desired LS block for the NOMOS XLC. -
Page 10: Setup Instructions For A Cardioid Array
Operating Instructions K&F NOMOS XLC Setup instructions for a cardioid array In order to implement a cardioid or hyper-cardioid setup, the fronts of the speakers must face the audience. When cardioid speakers are put on the floor, ensure that there is always a distance of at least 40 cm between and over the speakers. -
Page 11: Lsblocks For Cardioid Usenomos Xlc
Operating Instructions K&F NOMOS XLC LSBlocks for cardioid useNOMOS XLC The following cardioid or hypercardioid setups are available in the K&F CD 44. All setups with a cutoff frequency other than 60 Hz have a cutoff frequency of 100 Hz. -
Page 12: Fuse In The Nomos Xlc
K&F NOMOS XLC Fuse in the NOMOS XLC To increase the operating safety of the NOMOS XLC, the subwoofers are equipped with fuses at the signal input. These fuses reduce the risk of consequential damage resulting from a short circuit (i.e. charred cables / connectors / fire damage). -
Page 13: Cabling A K&F System Rack
Operating Instructions K&F NOMOS XLC Cabling a K&F System Rack KLING & FREITAG GMBH © 2016 Version 4.3 Page 13 of 21... -
Page 14: Connecting The Nomos Xlc
The following connecting diagram shows an example with the K&F CD 44 Routing '1 in 4 out'. A maximum of 3 NOMOS XLC subwoofers can be driven by one K&F SystemRack. If you want to use 3 NOMOS XLC subwoofers with a K&F SystemRack you will need the Break Out Box 'K&F BOB-C' available as an accessory. -
Page 15: Technical Specifications
Make sure that the system is adequately ventilated during longer storage periods so any residual moisture can escape from the equipment. Furthermore, you should ensure that the NOMOS XLC System is protected from mechanical strain to prevent possible damage. We recommend using the optional soft cover. -
Page 16: Measuring Diagrams
1) Pink noise 40 – 250 Hz, 2 h; 2) as 1) but with 50% duty cycle Measurings taken with the K&F SystemRack. The K&F SystemRack is required for operation of the K&F NOMOS XLC. 12. Measuring Diagrams Polar Patterns Cardioid 0°... -
Page 17: Dimensions Nomos Xlc
Operating Instructions K&F NOMOS XLC 13. Dimensions NOMOS XLC 14. Accessories Protective Cover NOMOS XLC KLING & FREITAG GMBH © 2016 Version 4.3 Page 17 of 21... -
Page 18: Disposal
Operating Instructions K&F NOMOS XLC Transport Cover NOMOS XLC K&F BOB-C: Speaker signal distributor, 1 x 8-pin into 3 x 4-pin. For operations of 3 x NOMOS XLC with a K&F SystemRack. 15. Disposal 15.1 Regulations for Disposal 15.1.1 Germany Don’t dispose of waste electrical equipment through household waste. -
Page 19: All Other Countries
Operating Instructions K&F NOMOS XLC The local distributor (sales partner) in the respective country is responsible for complying with the applicable legislation. Contact your retailer or the local authorities for information on the regulations applicable in any EU member state (except Germany). -
Page 20: Ec Declaration Of Conformity
Operating Instructions K&F NOMOS XLC 16. EC Declaration of Conformity applicable to all products designated hereafter and distributed by KLING & FREITAG GmbH including model variants unless these products have been altered afterwards. Loudspeaker systems: ACCESS B5 E 90 MK II... - Page 21 Operating Instructions K&F NOMOS XLC (Managing Director / CEO) KLING & FREITAG GMBH © 2016 Version 4.3 Page 21 of 21...
