Do not remove power while a recovery image install or
backup restore is in progress, meaning the BACKUP LED is
flashing in "working mode" pattern (1s On/1s Off, or slow
blink). Otherwise, the EC-BOS-8 UUKL will be inoperable
("bricked"), and must be returned to a service center for
repair.
USB Ports and Pushbutton Switches
Behind the EC-BOS-8 UUKL front access door are two USB ports, two
pushbutton switches, and an associated LED.

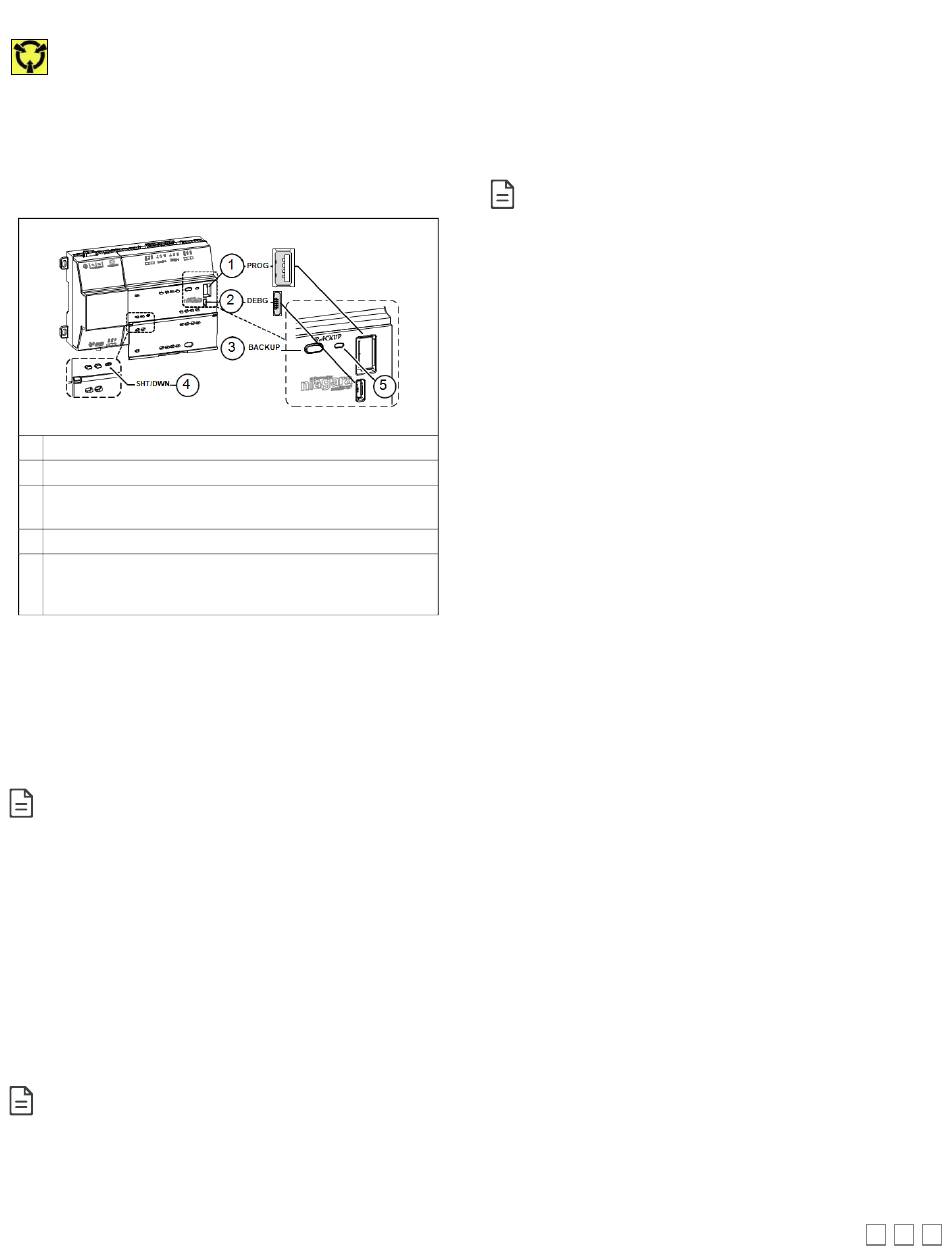

Figure 9: USB ports and switches behind access door.
1 PROG - USB 2.0 for usage with USB flash (thumb) drive.
2 DEBUG - Micro-A USB for serial debug communications.
3 BACKUP - Pushbutton switch to start a USB backup, or if held
in during power up/boot up, a factory recovery image.
4 SHT/DWN - Recessed switch for controlled shutdown.
5 BACKUP - LED to indicate USB media present, or a backup,
restore, or factory recovery image in progress. See
LED." On page 7.
•
The DEBUG port is a standard Micro-A type USB port for serial
debug communications to the EC-BOS-8 UUKL. Use a serial terminal
program (for example: PuTTY) to access the EC-BOS-8 UUKL
system shell" menu. This provides access to a few basic platform
settings. Default DEBUG port settings are: 115200, 8, N, 1 (baud
rate, data bits, parity, stop bits). For details on using a serial
connection to the DEBUG port, see the EC-BOS-8 UUKL EC-Net 4
Install and Startup Guide.
Login requires admin-level platform credentials.
•
The SHT/DWN pushbutton initiates a "controlled shutdown" of the
EC-BOS-8 UUKL, ensuring that all station data is preserved. This
provides an alternative to the platform "stop station" command, while
connected online with the EC-BOS-8 UUKL. See
BOS-8 UUKL Shutdown".
Initiating an EC-BOS-8 UUKL Shutdown
When locally servicing an installed and configured (commissioned) unit,
use this feature before removing power.
Do not initiate a shutdown or remove power if:
•
BACKUP LED is blinking in "working mode", or
•
Beat LED is flashing at a 90%/10% on/off rate.
Instead, wait for the BACKUP LED to be in another state
(typically Off), and the BEAT LED to flashing at the normal
50%/50% on/off duty cycle rate before initiating a shutdown.
For related details, see
"BACKUP
LED," page 7.
Prerequisite: The EC-BOS-8 UUKL has been commissioned (Niagara 4
installed, platform configured, a station installed) and the unit is running
the station.
"BACKUP
"Initiating an EC-
"BEAT (Heartbeat) LED" and
1. Press and hold the recessed SHT/DOWN button just until the
"BACKUP" LED begins flashing in "alert mode" pattern: 100ms
On/100ms Off repeating (fast blink).
2. Release the SHT/DOWN button during this alert mode. This
starts the shutdown process, where the station and software is
put into a safe state. During this shutdown, the "BACKUP" LED
blinks in "working mode".
When shutdown is done, the "BACKUP" LED turns Off. You
3.
can safely remove 24V power from the unit.
In the case where the system cannot be put into a safe
state, the "BACKUP" LED blinks in "error mode": two quick
200ms flashes On, 3 seconds Off, repeating.
Certifications
The EC-BOS-8 UUKL (12977) has the following agency listings,
compliances, and certifications:
•
UL 864, UUKL Listed Smoke Control Equipment, 10
•
UL-916, Energy Management Equipment - Edition 4
•
FCC Part 15, Class B - Federal Communications Commission, with
FCC Part 15, Subpart C - WiFi
•
ICES-003, Class B - Industry
Equipment Standard
•
RoHS 2 (Restriction
2011/65/EU. • CE Declaration of Conformity (Council Directive 004-
108-EC)
For complete details on listings and compliances for this EC-BOS-8
UUKL, refer to the document Agency Listings and Approvals for Distech
Controls Hardware Products.

Compliance and Approvals

Federal Communications Commission (FCC)
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
th
Edition
Canada Interference-Causing
of Hazardous Substances),
7/10
Directive
