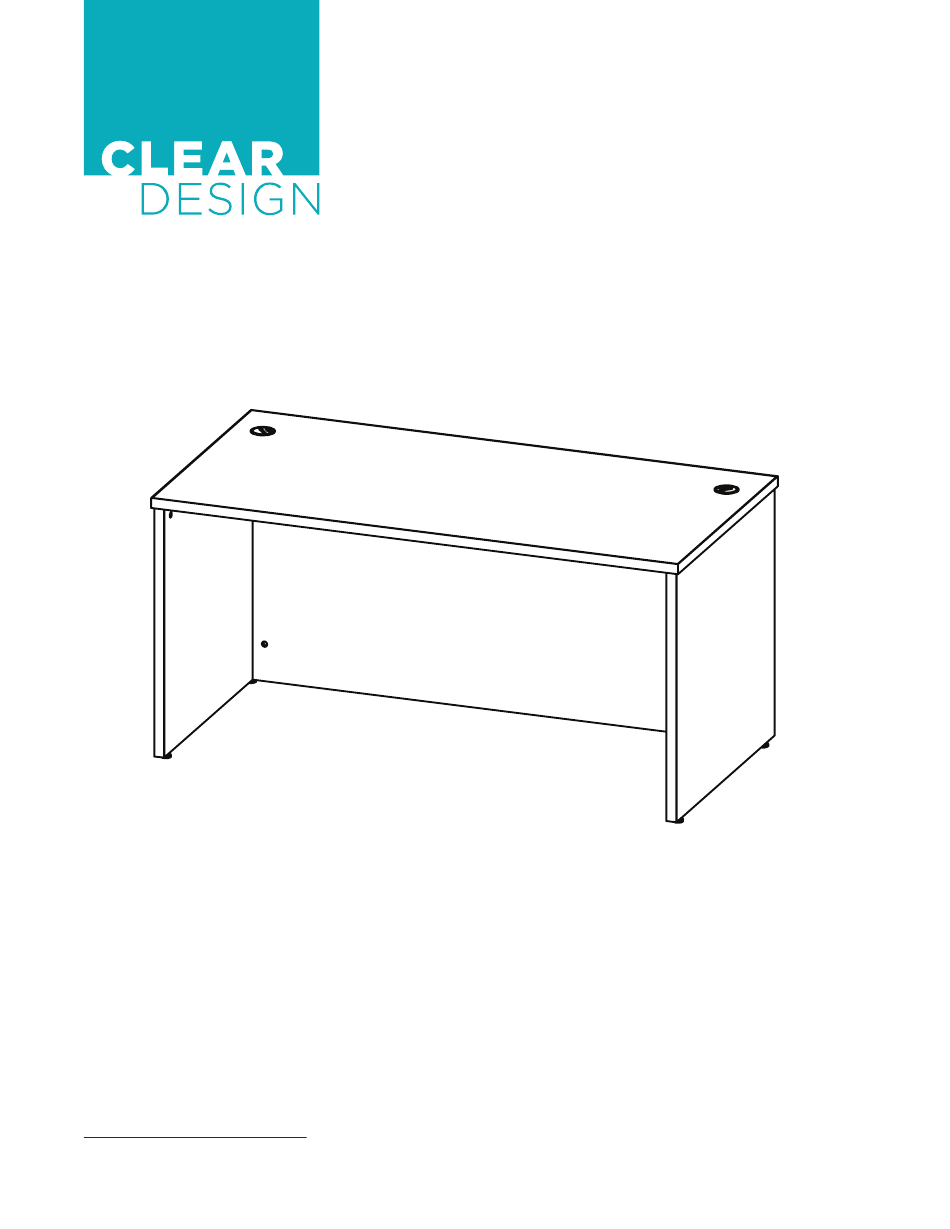

- Page 1 EDF3059 & EDF3071 EDGE CASEGOODS DESK SHELL 30X59 & 30X71 with Full Modesty Panel General Installation Guide...
-
Page 2: Parts List
PARTS LIST CODE DESCRIPTION Main Surface Recessed-End Panel EDF3059 full Modesty Panel & EDF3071 Cam Pin Cam Lock Cam Cap All parts listed are for a single desk shell; additional parts will be needed for additional desk shells. - Page 3 1 | INSERT HARDWARE INTO RECESSED-END PANELS Requires 2 cam pins and 2 cam locks for each panel. Cam Lock Cam Pin 2 | INSERT HARDWARE INTO MODESTY PANEL Requires 7 cam locks. Cam Lock...
- Page 4 3 | SECURE RECESSED-END PANELS TO MODESTY PANEL Align the cam pins so they sit inside of open cam locks. Use a screwdriver to turn cam locks clockwise and lock into place. 4 | INSERT HARDWARE INTO MAIN SURFACE Requires 7 cam pins. Cam Pin...
- Page 5 5 | SECURE MAIN SURFACE TO BOTTOM PANELS Align the cam pins so they sit inside of open cam locks. Use a screwdriver to turn cam locks clockwise and lock into place.
- Page 6 1-866-304-7197 | inspire@mycleardesign.com | mycleardesign.com © 2022 Clear Design | Version 22.1.0...
