EN | VERSION 4.0 | 07/26/2023
USER'S MANUAL
K&F VIDA M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIDA M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KLING & FREITAG VIDA M

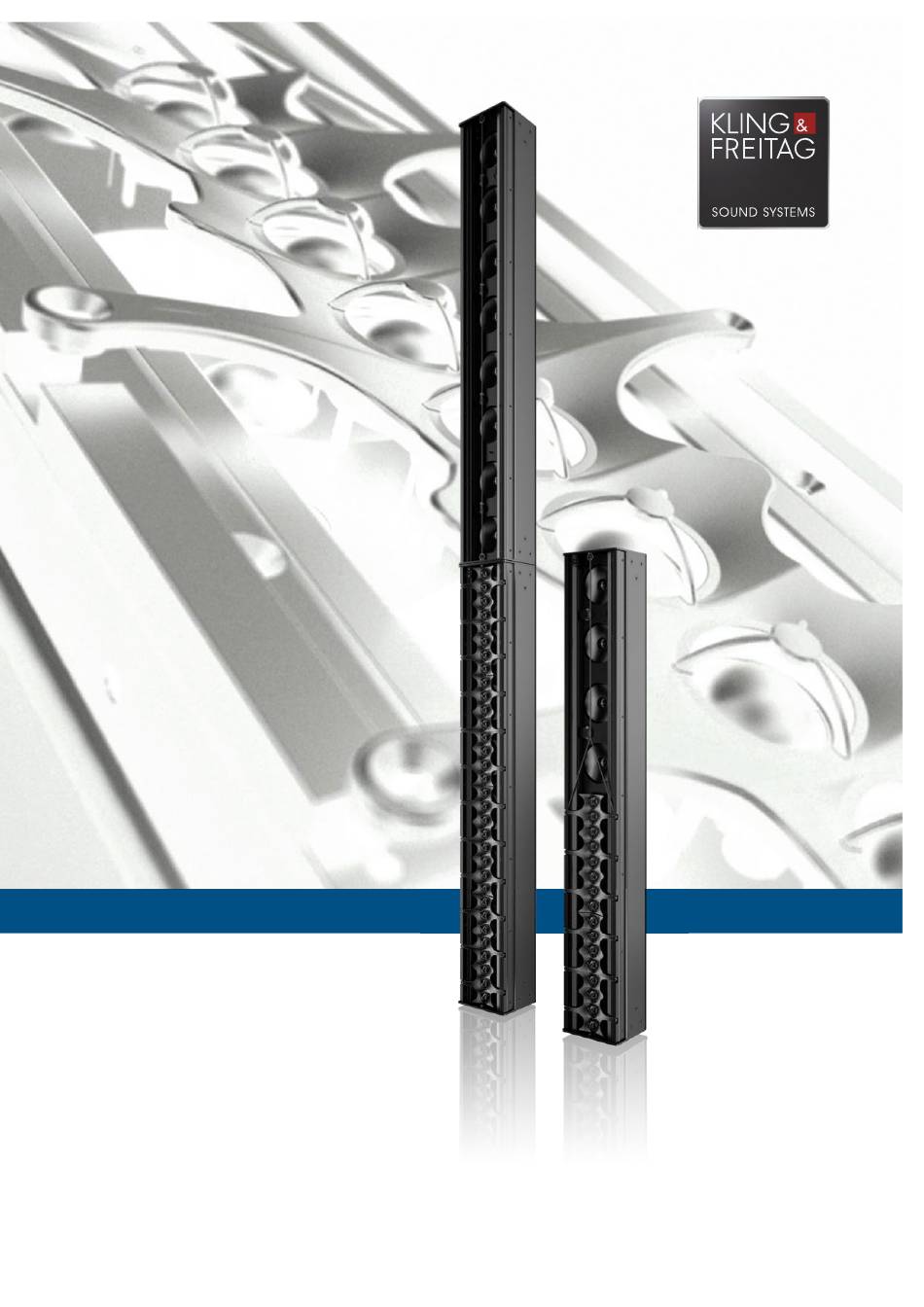

  • Page 1 EN | VERSION 4.0 | 07/26/2023 USER‘S MANUAL K&F VIDA M...
  • Page 3: Table Of Contents

    2.4.1 Items Included VIDA M 110 / 110 S 2.4.2 Items Included VIDA M 220 / 220 S 2.5 Overview of VIDA M 110 / 110 S Parts 2.6 Overview of VIDA M 220 / 220 S Parts 2.7 Front-panel indicator 2.8 Accessories...
  • Page 4 User‘s Manual K&F VIDA M 7.1 Dante latency 7.1.1 Example 7.1.2 Changing between Dante redundancy operating modes 7.1.3 Setting up Dante latency with an additional hop Initial Operation Updates 9.1 Firmware Update 9.2 Dante Update 10 Care and Maintenance 11 Transportation and Storage 12 Disposal 12.1 Germany...
  • Page 5: Introduction

    User's Manual K&F VIDA M Introduction Icons Used This icon indicates a risk of injury or death. Not following these instructions may result in seri- WARNUNG ous health problems including potentially fatal injuries. This icon indicates a possibly dangerous situation. Not following these instructions may cause VORSICHT minor injuries or damage.
  • Page 6: Product Description

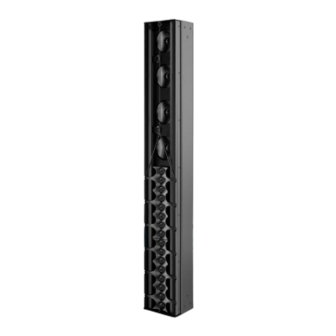

    VIDA M 26.07.2023 07/26/2023 Product Description The VIDA M speaker system is an active 2-way coaxial line array with electronic beam steering. Intended Use Be sure to use the speaker system only with K&F mounting accessories suitable for the specific application.
  • Page 7: Versions

    User's Manual K&F VIDA M Versions VIDA M is available in four versions designed for different applications and transmission rang- VIDA M 110 • Asymmetrical design • Transmission range: approx. 20 meters • Height: 1.1 meters VIDA M 110 S •...
  • Page 8: System Requirements

    1 x user guide 2.4.2 Items Included VIDA M 220 / 220 S • Passive module for VIDA M 220 or VIDA M 220 S (1 piece) • Active module for VIDA M 220 or VIDA M 220 S (1 piece) •...
  • Page 9: Overview Of Vida M 110 / 110 S Parts

    User's Manual K&F VIDA M Overview of VIDA M 110 / 110 S Parts Inlet for connecting mounting hardware (also available at the bottom) Bores for fastening mounting hardware. Can be sealed using the supplied caps when not in use.
  • Page 10: Overview Of Vida M 220 / 220 S Parts

    User's Manual K&F VIDA M VIDA M 26.07.2023 07/26/2023 Overview of VIDA M 220 / 220 S Parts Passive module Inlet for connecting mounting hardware (bottom inlet for con- necting the active module) Bores for fastening mounting hardware. Can be sealed using the supplied caps when not in use.
  • Page 11: Front-Panel Indicator

    User's Manual K&F VIDA M Front-panel indicator Each VIDA M features an LED indicator located behind the front grille. The indicator color shows the following statuses: • Power-up (blue): The speaker is being powered up and will be ready for operation shortly.
  • Page 12: Accessories

    VIDA M Stand Adapter The stand adapter is permanently at- tached to the VIDA M 110 / 110 S speaker and allows for using it on a speaker stand. Note that the fixing accessories are not suitable for recurring assembly and disassembly.
  • Page 13: Accessories For Mobile Use

    K&F VIDA M 2.8.2 Accessories for Mobile Use The accessories below allow for mobile use of VIDA M speakers and for adapting them to a number of applications, for example, in rental use. VIDA M Mounting Adapter This mounting adapter with handles is permanently attached the VIDA M speaker.
  • Page 14: Dimensions

    User's Manual K&F VIDA M VIDA M 26.07.2023 07/26/2023 Dimensions 2.9.1 Dimensions VIDA M 110 / 110 S Version 4.0 © KLING & FREITAG GMBH Seite 14 von 42...
  • Page 15: Dimensions Vida M 220 / 220 S

    User's Manual K&F VIDA M 2.9.2 Dimensions VIDA M 220 / 220 S © KLING & FREITAG GMBH Version 4.0 Seite 15 von 42...
  • Page 16: Technical Specifications

    K&F VIDA M VIDA M 26.07.2023 07/26/2023 2.10 Technical Specifications 2.10.1 Technical Specifications VIDA M 110 Active 2-way coaxial line array with electronic beam Concept steering Input signal Each speaker is fed through a dedicated DSP/amp channel. Frequency range @-10 dB 95 Hz –...
  • Page 17: 2.10.2 Technical Specifications Vida M 110 S

    User's Manual K&F VIDA M 2.10.2 Technical Specifications VIDA M 110 S Active 2-way coaxial line array with electronic beam Concept steering Input signal Each speaker is fed through a dedicated DSP/amp channel. Frequency range @-10 dB 95 Hz – 22 kHz Frequency range @±3 dB...
  • Page 18: 2.10.3 Technical Specifications Vida M 220

    User's Manual K&F VIDA M VIDA M 26.07.2023 07/26/2023 2.10.3 Technical Specifications VIDA M 220 Active 2-way coaxial line array with electronic beam Concept steering Input signal Each speaker is fed through a dedicated DSP/amp channel. Frequency range @-10 dB 95 Hz –...
  • Page 19: 2.10.4 Technical Specifications Vida M 220 S

    User's Manual K&F VIDA M 2.10.4 Technical Specifications VIDA M 220 S Active 2-way coaxial line array with electronic beam Concept steering Input signal Each speaker is fed through a dedicated DSP/amp channel. Frequency range @-10 dB 95 Hz – 22 kHz Frequency range @±3 dB...
  • Page 20: Measuring Diagrams

    User's Manual K&F VIDA M VIDA M 26.07.2023 07/26/2023 2.11 Measuring Diagrams Horizontal Directivity 180° 150° 120° 90° 60° Attenuation (dB) 30° < 3 0° 3 - 6 -30° 6 - 9 -60° 9 - 12 -90° 12 - 15 -120°...
  • Page 21 User's Manual K&F VIDA M Vertical Directivity, optimised 150° 120° 90° 60° Attenuation (dB) 30° < 3 0° 3 - 6 -30° 6 - 9 -60° 9 - 12 -90° 12 - 15 -120° 15 - 18 -150° > 18 -180°...
  • Page 22: General Safety Instructions

    • Dieses Lautsprechersystem darf nicht mechanisch geneigt werden. • Never try removing the individual modules of VIDA M 220 / 220 S speakers after these have been joined, screwed, and glued together during initial installation. Danger of fire •...
  • Page 23: Initial Installation Of Vida M 220 / 220 S Modules

    User's Manual K&F VIDA M Initial installation of VIDA M 220 / 220 S modules VIDA M 220 / 220 S systems are disassembled for shipping and therefore need to be assembled for initial installation. Risks imposed by falling parts...
  • Page 24 The remaining terminals will stay unoccupied. Tipp TIPP Use a pair of bent needle-nose pliers to complete the following steps: VIDA M 220 S 12. Make the connections as shown. The connecting-cable labels match their respective terminal labels. MT 2, unoccupied...
  • Page 25 User's Manual K&F VIDA M 13. Place the sealing plate. 14. Tighten the M4x10 screws using an IH2.5 hexagon socket wrench. © KLING & FREITAG GMBH Version 4.0 Seite 25 von 42...
  • Page 26: Wiring

    07/26/2023 Wiring Wire the speaker as described below. Terminal positions and purpose Netzanschluss, 100 V bis 240 V Fuse: VIDA M 220 / 220 S: 250V, 8A, slow-blow VIDA M 110 up to serial number: 81232100150 250V, 8A, slow-blow VIDA M 110...
  • Page 27: Kardioid

    User's Manual K&F VIDA M Kardioid 5.2.1 AC power inlet Risk of electric shock WARNUNG The system must be connected to the mains by a qualified electrician only. PE conductor N conductor (neutral) L conductor (phase) Cable specification Rating (min.) Min.
  • Page 28: Audio Terminals

    User's Manual K&F VIDA M VIDA M 26.07.2023 07/26/2023 5.2.2 Audio terminals Potentially missing contact HINWEIS Strip the cables by 7 mm. Aux out (analog): GND (ground) COLD (–) HOT (+) AES/EBU in (digital): GND (ground) COLD (–) HOT (+)
  • Page 29: Gpio

    User's Manual K&F VIDA M 5.2.3 GPIO Potentially missing contact HINWEIS Strip the cables by 7 mm. [A] to [C] GPO 1: NC1, M1, NO1: Status output (warnings, errors) [D] to [F] GPO 2: NC2, M2, NO2: Status output (warnings, errors)
  • Page 30: Gpio Specifications

    User's Manual K&F VIDA M VIDA M 26.07.2023 07/26/2023 GPIO specifications GPI A1 – A3: Type Floating optocoupler inputs Power consumption 2.5 mA @10 V 12 V/1 mA, floating Internal voltage source Reverse voltage –6 V HIGH switching threshold Edge-triggered: 5 V (min.) – 30 V (max.) LOW switching threshold Edge-triggered: –6 V (min.) –...
  • Page 31: Gpi Internal Wiring

    User's Manual K&F VIDA M 6.1.1 GPI internal wiring: OPT3 OPT2 OPT1 GPI A1 GPI A3 GPI A2 10 V © KLING & FREITAG GMBH Version 4.0 Seite 31 von 42...
  • Page 32: Gpo

    User's Manual K&F VIDA M VIDA M 26.07.2023 07/26/2023 Type Floating MOSFET-Schalter Max. Continuous current 0.5 A Max. Peak current 1.5 A Max. Peak voltage 60 VAC NO1 / NO2 Normally open, low impedance to COMMON NC1 / NC2 Normally closed, high impedance to COMMON...
  • Page 33: Systemlatency

    User's Manual K&F VIDA M Systemlatency The following table lists the systems latency that is to be expected of the VIDA M. They refer to firmware version 1.1.0 or greater, no beam steering. Input K&F VIDA M AUX OUT Analog 6.016 ms...
  • Page 34: Changing Between Dante Redundancy Operating Modes

    7.1.3 Setting up Dante latency with an additional hop There is one additional network switch installed inside K&F VIDA M which translates to one additional hop for the network. Be sure to note this when setting up the Dante latency.
  • Page 35: Initial Operation

    User's Manual K&F VIDA M Initial Operation 1. Download the VIDA App from the Microsoft Store and install it. For this purpose, visit the Microsoft App Store and search for VIDA App. 2. Download the VIDA App User’s Guide from our website (www.kling-freitag.de).
  • Page 36 User's Manual K&F VIDA M VIDA M 26.07.2023 07/26/2023 To check, change to the Setup tab. • When the progress bar is fully displayed and no red dot is shown, the speaker is ready for operation. 8. For details on speaker configuration and operation, refer to the VIDA App User's Manual.
  • Page 37: Updates

    User's Manual K&F VIDA M Updates Firmware Update 1. Connect the speakers to the mains. 2. Add the speakers to your network. 3. Download the VIDA Firmware Updater from our website (www.kling-freitag.de). 4. Unzip the file and run the executable.
  • Page 38: Dante Update

    User's Manual K&F VIDA M VIDA M 26.07.2023 07/26/2023 Dante Update 1. Connect the speakers to the mains. 2. Add the speakers to your network. 3. If the Dante Controller application is already installed, proceed to step 10. 4. Visit https://www.audinate.com/products/software/dante-controller.
  • Page 39: Care And Maintenance

    18. Click the REBOOT SELECTED DEVICES button to reboot the updated speaker(s). Care and Maintenance The K&F VIDA M system can exhibit signs of wear over the years, for example, from mechanical strain, transport damage, corrosion, or improper handling. Signs of wear typically indicate an increased safety risk.
  • Page 40: Transportation And Storage

    User's Manual K&F VIDA M VIDA M 26.07.2023 07/26/2023 Transportation and Storage For transport in the original carton, place the speaker in the carton with the grille facing up. Store the product in a dry place. Also, transport under dry conditions only.
  • Page 41: Ec Declaration Of Conformity

    User's Manual K&F VIDA M EC Declaration of Conformity © KLING & FREITAG GMBH Version 4.0 Seite 41 von 42...
  • Page 42 THANK CHOOSING K&F. KLING & FREITAG GmbH Wohlenbergstr. 5 · D-30179 Hannover Phone +49 (0)511 969970 www.kling-freitag.de · info@kling-freitag.de...
