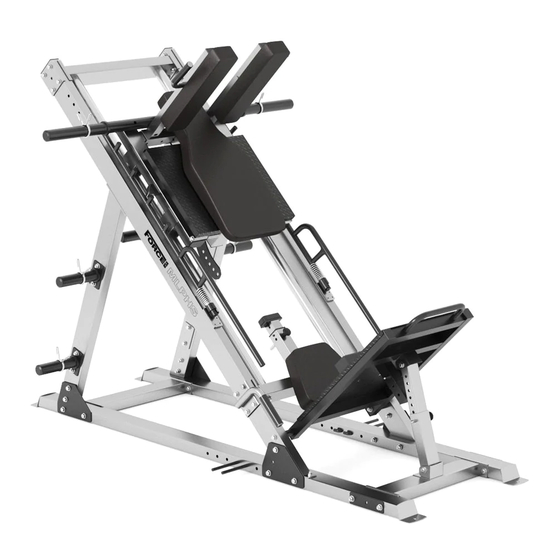

Force USA ULTIMATE 45 DEGREE LEG PRESS HACK SQUAT COMBO Owner's Manual
  1. Manuals
  2. Brands
  3. Force USA Manuals
  4. Fitness Equipment
  5. ULTIMATE 45 DEGREE LEG PRESS HACK SQUAT...
  6. Owner's manual

Force USA ULTIMATE 45 DEGREE LEG PRESS HACK SQUAT COMBO Owner's Manual

Original leg press hack squat
Hide thumbs
Table of Contents

Advertisement

Quick Links

ORIGINAL LEG PRESS HACK SQUAT
OWNERS MANUAL | F-MLPHS-V2
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ULTIMATE 45 DEGREE LEG PRESS HACK SQUAT COMBO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Force USA ULTIMATE 45 DEGREE LEG PRESS HACK SQUAT COMBO

Summary of Contents for Force USA ULTIMATE 45 DEGREE LEG PRESS HACK SQUAT COMBO

  • Page 1 ORIGINAL LEG PRESS HACK SQUAT OWNERS MANUAL | F-MLPHS-V2...
  • Page 2 TABLE OF CONTENTS Parts List Assembly Step 1 Assembly Step 2 8-10 Assembly Step 3 11-14 Assembly Step 4 15-18 Assembly Step 5 19-22 Assembly Step 6 23-24 Assembly Step 7 25-27...
  • Page 3 PARTS LIST KEY NUMBER DESCRIPTION OF PART QUANTITY Ground Tube-Right Ground Link Tube Front Ground Tube Big Flat Washer φ30*φ10*3 Flat Washer φ10 Lock Nut M10 Hexagon Bolt M10*120 Ground Tube-Left Fixing Plate Back Support Tube Back Support Tube-Left Hexagon Bolt M10*70 Hexagon Bolt M10*115 Inclined Tube Assembly Part Spring Washer φ10...
  • Page 4 PARTS LIST KEY NUMBER DESCRIPTION OF PART QUANTITY Leg Press Adjust Tube Assembly Part Internal Thread Axle φ15.9*135 Flat Washer φ12 Lock Nut M12 Hexagon Bolt M12*80 T Shape Pin Limit Frame Assembly Part Spring Hexagon Socket Button Head Screws M10*20 Up Feet Plate Assembly Part Regulating Fixing Tube Assembly Part Shoulder Pads Frame-Right Assembly Part...
  • Page 5 PARTS LIST KEY NUMBER DESCRIPTION OF PART QUANTITY Flat Washer φ8 Hexagon Bolt M8*70 Seat Pad Hexagon Bolt M8*45 Band Peg Feet Brick Frame T Shape Pin Big Flat Washer φ25φ*10*2 Internal Thread Axle φ15.9*120 Handle Tube Tube Plug 50*100*2 Two Layer Spring Nut φ23-M10 Tube Plug φ60*60*2 Tube Plug φ25*25*1.5...

  • Page 6: Table Of Contents

    PARTS LIST KEY NUMBER DESCRIPTION OF PART QUANTITY φ50*345 Stainless Steel Tube φ49.5*6 φ48*344 Inner Tube φ48*1.5 End Cap φ50*φ44.8*φ25.5 Middle Cap φ70*φ44.8*φ25.5*30 Hexagon Socket Button Head Screws M8*20 Handle Cover φ32*310 Retaining Ring φ31.5*φ25.5 Cross Recessed Countersunk Head Screw M10*25 Back Pad Fixing Plate Cross Recessed Countersunk Head Screw M8*20 Anti-Slip Sheet...
  • Page 7 ASSEMBLY STEP 1 KEY NUMBER DESCRIPTION OF PART QUANTITY Ground Tube-Right Ground Link Tube Front Ground Tube Big Flat Washer φ30*φ10*3 Flat Washer φ10 Lock Nut M10 Hexagon Bolt M10*120 Ground Tube-Left Fixing Plate Back Support Tube Back Support Tube-Left Hexagon Bolt M10*70 Hexagon Bolt M10*115...
  • Page 8 ASSEMBLY DRAWING ASSEMBLY STEP 1 INSTRUCTIONS Link front ground tube-3, ground tube-right-1 and ground tube-left-8 use M10*120 hexagon bolt-7, φ30*φ10*3 big at washer-4, φ10 at washer-5 and M10 lock nut-6. Link ground link tube-3, ground tube-right-1 and ground tube-left-8 use M10*120 hexagon bolt-7, φ30*φ10*3 big at washer-4, φ10 at washer-5 and M10 lock nut.
  • Page 9 ASSEMBLY STEP 2 KEY NUMBER DESCRIPTION OF PART QUANTITY Big Flat Washer φ30*φ10*3 Flat Washer φ10 Lock Nut M10 Hexagon Bolt M10*120 Fixing Plate Hexagon Bolt M10*70 Inclined Tube Assembly Part Spring Washer φ10 Hexagon Bolt M10*20 Inclined Tube-Right Assembly Part...
  • Page 10 ASSEMBLY DRAWING KEY NUMBER DESCRIPTION OF PART QUANTITY Flat Washer φ10 Hexagon Bolt M10*20 Handle Tube Tube Plug 50*100*2 Two Layer Spring Nut φ29-M10...
  • Page 11 ASSEMBLY DRAWING ASSEMBLY STEP 2 INSTRUCTIONS Fix inclined tube assembly part-14 and inclined tube-right assembly part-17 on main frame use M10*120 hexagon bolt-7, φ30*φ10*3 big flat washer-4, φ10 flat washer-5 and M10 lock nut-6, fixing plate-9, M10*20 hexagon bolt-16 and φ10 spring washer-15.
  • Page 12 ASSEMBLY STEP 3 KEY NUMBER DESCRIPTION OF PART QUANTITY Big Flat Washer φ30*φ10*3 Flat Washer φ10 Lock Nut M10 Hexagon Bolt M10*70 Spring Washer φ10 Guide Rod Down Fixed Tube Assembly Part Guide Rod Fixed Tube Assembly Part Slide Rod Assembly Part Slide Frame Assembly Part Limit Rod Assembly Part 100*130*4 Link Plate...
  • Page 13 ASSEMBLY DRAWING KEY NUMBER DESCRIPTION OF PART QUANTITY Tube Plug φ60*60*2 Tube Plug φ25*25*1.5 16 68 67 KEY NUMBER DESCRIPTION OF PART QUANTITY φ φ Big Flat Washer 10*3 φ Spring Washer Hexagon Bolt M10*20 φ Roller φ Internal Thread Axle 17*81-M10 Bearing 6003 Plug 50*70*2...
  • Page 14 ASSEMBLY DRAWING KEY NUMBER DESCRIPTION OF PART QUANTITY Stainless Steel Rod φ50*0.8 KEY NUMBER DESCRIPTION OF PART QUANTITY Tube Cover φ30*φ25*50...
  • Page 15 ASSEMBLY DRAWING ASSEMBLY STEP 3 INSTRUCTIONS Fix guide rod down fixed tube assembly part-18 on main frame use M10*70 hexagon bolt- 12, φ10 flat washer-5 and M10 lock nut-6 and 100*130*4 link plate. Fix slide rod assembly part-20 on guide rod down fixed tube assembly part-18 use M10*30 hexagon bolt-24, φ10 spring washer-15 and φ30*φ10*3 big flat washer-4. Put slide frame assembly part-21 into slide rod assembly part-20. Fix guide rod fixed tube assembly part-19 on main frame use M10*70 hexagon bolt-12, φ10 flat washer-5 and M10 lock nut-6 and 100*130*4 link plate. Fix slide rod assembly part-20 on guide rod fixed tube assembly part-19 use M10*30 hexagon bolt-24, φ10 spring washer-15 and φ30*φ10*3 big flat washer-4.
  • Page 16 ASSEMBLY STEP 4 KEY NUMBER DESCRIPTION OF PART QUANTITY φ Spring Washer Hexagon Bolt M10*20 Leg Press Adjust Outer Tube Assembly Part Feet Plate Leg Press Adjust Tube Assembly Part φ Internal Thread Axle 15.9*135 φ Flat Washer Lock Nut M12 Hexagon Bolt M12*80 T Shape Pin Limit Frame Assembly Part...
  • Page 17 ASSEMBLY DRAWING KEY NUMBER DESCRIPTION OF PART QUANTITY 74 Tube Plug φ50*50*2 1 KEY NUMBER DESCRIPTION OF PART QUANTITY Tube Plug φ45*45*2...
  • Page 18 ASSEMBLY DRAWING KEY NUMBER DESCRIPTION OF PART QUANTITY Tube Plug φ45*45*2 KEY NUMBER DESCRIPTION OF PART QUANTITY Handle Cover φ24.5*280 Round Plug φ25*2...
  • Page 19 ASSEMBLY DRAWING ASSEMBLY STEP 4 INSTRUCTIONS Fix limit frame assembly part-33 on main frame use spring-34 and M10*20 hexagon socket button head screws-35. Fix leg press adjust outer tube assembly part-25 on main frame use M12*80 hexagon bolt- 31, φ12 flat washer-29, M12 lock nut-30. Fix leg press adjust tube assembly part-27 on feet plate-26 use M12*80 hexagon bolt-31, φ...

  • Page 20: Key Number

    ASSEMBLY STEP 5 KEY NUMBER DESCRIPTION OF PART QUANTITY φ Flat Washer Lock Nut M10 Hexagon Bolt M10*70 φ Spring Washer Hexagon Bolt M10*20 φ Flat Washer Lock Nut M12 Up Feet Plate Assembly Part Regulating Fixing Tube Assembly Part Shoulder Pads Frame-Right Assembly Part Barbell Plate Holder Frame Hexagon Bolt M10*65...

  • Page 21: Φ50*345 Stainless Steel Tube Φ49.5*6

    ASSEMBLY DRAWING KEY NUMBER DESCRIPTION OF PART QUANTITY Tube Plug φ25*25*1.5 KEY NUMBER DESCRIPTION OF PART QUANTITY φ50*345 Stainless Steel Tube φ49.5*6 φ48*344 Inner Tube φ48*1.5 End Cap φ50*φ44.8*φ25.5 Middle Cap φ70*44.8*φ25.5*30 Hexagon Socket Button Head Screws M8*20...

  • Page 22: Handle Cover Φ32*310

    ASSEMBLY DRAWING KEY NUMBER DESCRIPTION OF PART QUANTITY φ Two Layer Spring Nut 23-M10 φ Tube Plug 50*50*2 φ Handle Cover 32*310 φ φ Retaining Ring 31.5* 25.5 Cross Recessed Countersunk Head Screw M10*25 KEY NUMBER DESCRIPTION OF PART QUANTITY φ...
  • Page 23 ASSEMBLY DRAWING ASSEMBLY STEP 5 INSTRUCTIONS Fix shoulder pads frame-left assembly part-42 and shoulder pads frame-right assembly part- 38 on main frame use M12*75 hexagon bolt-43, φ12 flat washer-29, M12 lock nut-30 and M12*65 hexagon bolt-44. Fix barbell plate holder frame-39 on main frame use M10*65 hexagon bolt-40, M10*115 hexagon bolt-41, φ10 flat washer-5 and M10 lock nut-6.
  • Page 24 ASSEMBLY STEP 6 24 15 KEY NUMBER DESCRIPTION OF PART QUANTITY Big Flat Washer φ30*φ10*3 Flat Washer φ10 Lock Nut M10 Hexagon Bolt M10*70 Spring Washer φ10 Hexagon Bolt M10*30 Lifting Frame Assembly Part Barbell Inner Rod Barbell Plate Holder Hexagon Socket Button Head Screws M8*20 Barbell Plate Holder Spring Collar...
  • Page 25 ASSEMBLY DRAWING ASSEMBLY STEP 6 INSTRUCTIONS Fix lifting frame assembly part-45 on frame use M10*70 hexagon bolt-12, φ10 flat washer- 5, φ30*φ10*3 big flat washer-4 and vM10 lock nut-6. Fix barbell inner rod-46 on lifting frame assembly part-45 use M8*20 hexagon socket button head screws-48 and barbell plate holder-47. Fix barbell plate holder-49 on main frame use M10*30 hexagon bolt-24, φ10 spring washer- 15 and φ30*φ10*3 big flat washer-4.
  • Page 26 ASSEMBLY STEP 7 KEY NUMBER DESCRIPTION OF PART QUANTITY Back Pad Shoulder Pad Flat Washer φ8 Hexagon Bolt M8*70 Seat Pad Hexagon Bolt M8*45 Band Peg Feet Brick Frame T Shape Pin...

  • Page 27: Back Pad Fixing Plate

    ASSEMBLY DRAWING KEY NUMBER DESCRIPTION OF PART QUANTITY Back Pad Fixing Plate Cross Recessed Countersunk Head Screw M8*20 KEY NUMBER DESCRIPTION OF PART QUANTITY Plug 50*70*2 Anti-Slip Sheet Flat Round Head Blind Rivet 4*10...
  • Page 28 ASSEMBLY DRAWING ASSEMBLY STEP 7 INSTRUCTIONS Fix seat pad-55 on main frame use M8*45 hexagon bolt-56 and φ8 flat washer-53. Fix shoulder pad-52 on main frame use M8*70 hexagon bolt-54 and φ8 flat washer-53. Put back pad-51 on up feet plate assembly part-36. Put feet brick frame-58 on down feet plate-26 lock use φ12*70 t shape pin-59. Put band peg-57 on main frame.

This manual is also suitable for:

F-mlphs-v2
