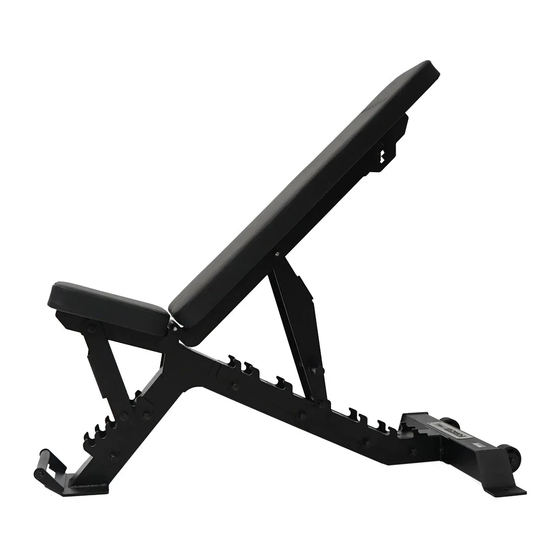

FID BENCH
Owner's Manual | F-PS-FID
2

Advertisement

loading
Need help?

Need help?

Do you have a question about the PRO FID BENCH and is the answer not in the manual?

Questions and answers

Related Manuals for Force USA PRO FID BENCH

Summary of Contents for Force USA PRO FID BENCH

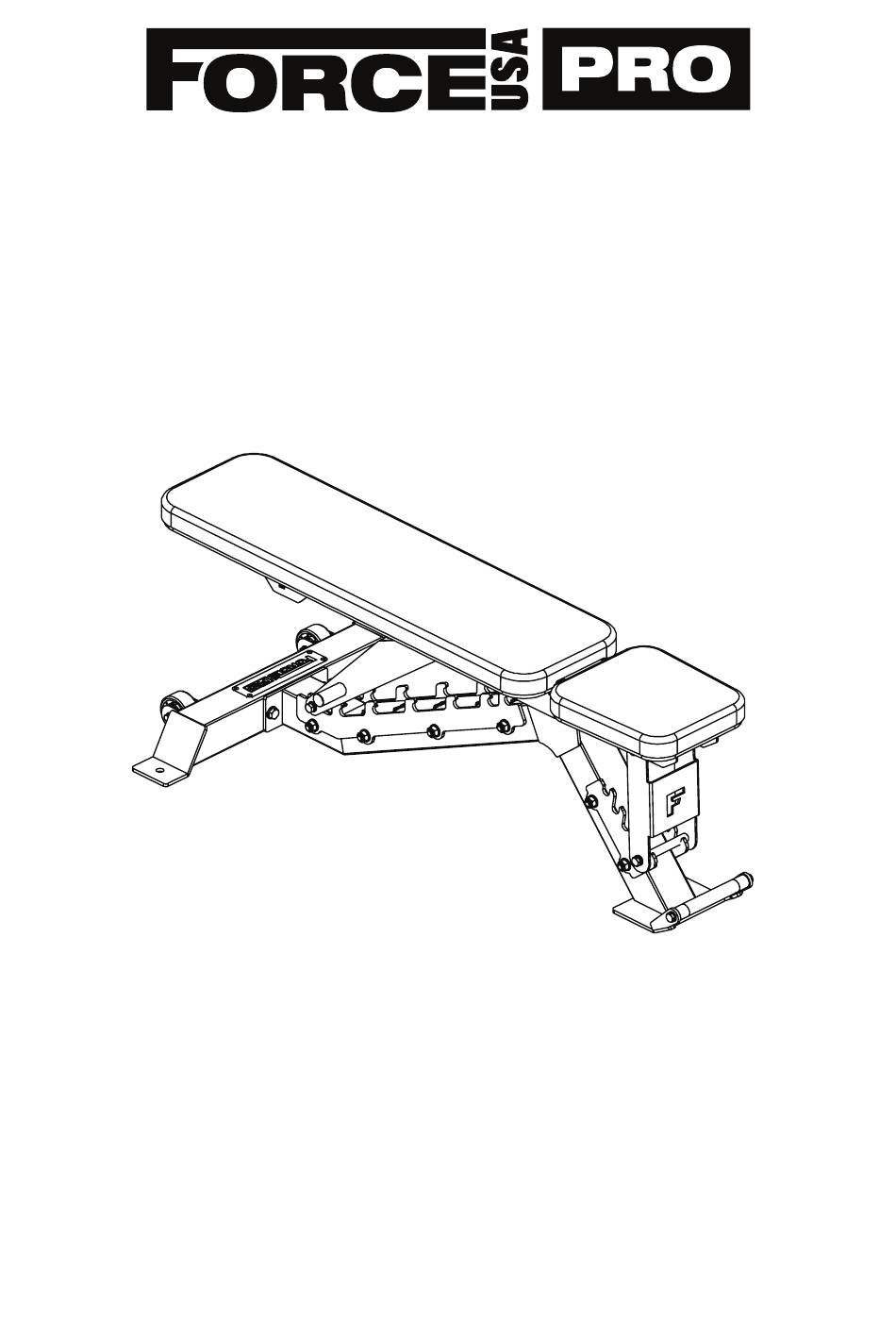

  • Page 1 FID BENCH Owner’s Manual | F-PS-FID...
  • Page 2 BEFORE YOU START Read all instructions in this manual before assembling or using this equipment. Remove all parts from the packaging and separate and count each various component to ensure everything has been correctly provided. Follow the instructions and consult both the individual assembly pages and the overall expanded views of the equipment.
  • Page 3 IMPORTANT ASSEMBLY INFORMATION NOTE: It is strongly recommended that this equipment is assembled by two or more people to avoid possible injury. FASTENING NUTS AND BOLTS • Only tighten all nuts and bolts after all components have been fully assembled. •...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Component diagram Parts list Assembly Step 1 7-10 Assembly Step 2 11-14 Assembly Step 3 Assembly Step 4 16-17 Assembly Step 5 18-21 Warranty...
  • Page 5 Use the drawing below to identify small parts used in assembly. IMPORTANT: if you cannot find a part in the hard ware kit,check to see if it has been assembled. Extra hardware may be included. NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size. The frame assembly Back pad tap plate Seat gear plate...

  • Page 6: Parts List

    PARTS LIST PRO SERIES SKU DESCRIPTION NOTE F-PS-FID-PART#1 Main Frame Assembly F-PS-FID-PART#2 Rear Bottom Beam Assembly Assembly F-PS-FID-PART#3 Lock Nut (Black) F-PS-FID-PART#4 Hexagon Head Bolts M12*100 φ12 F-PS-FID-PART#5 Flat Washer (Black) F-PS-FID-PART#6 Back Pad Tap Plate F-PS-FID-PART#7 Seat Gear Plate F-PS-FID-PART#8 Hexagon Head Bolts M12*105...
  • Page 7 PARTS LIST PRO SERIES SKU DESCRIPTION NOTE F-PS-FID-PART#33 Seat frame F-PS-FID-PART#34 Powder Set φ26*φ22*φ16*11 F-PS-FID-PART#35 Back Pad And Back Support Assembly parts F-PS-FID-PART#36 Back Support Rubber Pad φ22*φ18*φ12.2*15 F-PS-FID-PART#37 Powder Set φ25*2 F-PS-FID-PART#38 Pipe Plug F-PS-FID-PART#39 Hexagon Socket Countersunk M6*12 Head Screw φ16*95 F-PS-FID-PART#40...

  • Page 8: Assembly Step 1

    ASSEMBLY STEP 1 PRO SERIES SKU DESCRIPTION NOTE F-PS-FID-PART#1 Main Frame Assembly F-PS-FID-PART#2 Rear Bottom Beam Assembly Assembly F-PS-FID-PART#3 Lock Nut (Black) F-PS-FID-PART#4 Hexagon Head Bolts M12*100 φ12 F-PS-FID-PART#5 Flat Washer (Black)
  • Page 9 ASSEMBLY STEP 1 Frame assembly drawing PRO SERIES SKU DESCRIPTION NOTE F-PS-FID-PART#13 Flat Washer (Black) φ10 F-PS-FID-PART#21 Hexagon Head Bolts (Black) M10*25 F-PS-FID-PART#29 Double Shrapnel Nut F-PS-FID-PART#30 Hand Tube F-PS-FID-PART#31 Main Frame...
  • Page 10 ASSEMBLY STEP 1 Rear bottom beam assembly PRO SERIES SKU DESCRIPTION NOTE φ8 F-PS-FID-PART#17 Flat Washer (Black) F-PS-FID-PART#23 Rear Bottom Beam F-PS-FID-PART#24 Stainless Steel F-PS-FID-PART#25 Mobile Roller F-PS-FID-PART#26 Break Pull Mandrel Rivets 4*10 With T Head F-PS-FID-PART#27 Hexagon Head Bolts (Black) M8*90 F-PS-FID-PART#28 M8 Lock Nut (Black)
  • Page 11 ASSEMBLY DRAWING 1-Use M12*100 Hexagon Head bolts (black) (4), M12 luck nut (black) (3), 12 at washer (black) (5) to assemble and fix 4013 main frame assembly (1),4013 rear bottom beam assembly.

  • Page 12: Assembly Step 2

    ASSEMBLY STEP 2 PRO SERIES SKU DESCRIPTION NOTE F-PS-FID-PART#3 Lock Nut (Black) φ12 F-PS-FID-PART#5 Flat Washer (Black) F-PS-FID-PART#6 Back Pad Tap Plate F-PS-FID-PART#7 Seat Gear Plate F-PS-FID-PART#8 Hexagon Head Bolts M12*105...
  • Page 13 ASSEMBLY DRAWING 1-Fix the 4013 back pad tap plate (6) to the main body with M12*105 hex bolts (black) (8), M12 lock nut (black) (3), φ12 flat washer (black) (5). 2-Fix 4013 cushion gear plate (7) to the main body with M12*105 hex bolts (black) (8), M12 lock nut (black) (3), φ12 at washer (black) (5).

  • Page 14: Assembly Step 2

    ASSEMBLY STEP 2 PRO SERIES SKU DESCRIPTION NOTE F-PS-FID-PART#9 Back Cushion Main Frame Plate F-PS-FID-PART#10 Sitting Frame Assembly Assembly F-PS-FID-PART#11 Shaft φ12*147-M10 F-PS-FID-PART#12 Lock Nut (Black) φ10 F-PS-FID-PART#13 Flat Washer (Black)

  • Page 15: Assembly Step 2

    ASSEMBLY STEP 2 Seat assembly PRO SERIES SKU DESCRIPTION NOTE F-PS-FID-PART#33 Seat frame φ26*φ22*φ16*11 F-PS-FID-PART#34 Powder Set...
  • Page 16 ASSEMBLY STEP 3 As shown in the figure, use φ12*147-M10 axis (11), M10 lock nut (black) (12), φ10 flat washer (black) (13) to assemble 4013 back cushion main frame plate (9), 4013 seat assembly (10) to the main body and fix.
  • Page 17 ASSEMBLY STEP 4 PRO SERIES SKU DESCRIPTION NOTE F-PS-FID-PART#14 Back Cushion 275*975*50 F-PS-FID-PART#15 Seat Cushion Assembly F-PS-FID-PART#16 Hexagon Head Bolts (Black) M8*16 F-PS-FID-PART#17 Flat Washer (Black) φ8...
  • Page 18 ASSEMBLY DRAWING As shown in the picture, use M8*16 hex bolts (black) (16) and φ8 flat washer (black) (17) to assemble 4013 back cushion (14) and 4013 cushion (15) on the main body and fix them.
  • Page 19 ASSEMBLY STEP 5 PRO SERIES SKU DESCRIPTION NOTE φ12*147-M10 F-PS-FID-PART#11 Shaft F-PS-FID-PART#12 Lock Nut (Black) φ10 F-PS-FID-PART#13 Flat Washer (Black) F-PS-FID-PART#18 Seat Bracket Assembly Assembly F-PS-FID-PART#19 Back Pad Rear Support Assembly Assembly φ16*116 F-PS-FID-PART#20 Silk F-PS-FID-PART#21 Hexagon Head Bolts (Black) M10*25 φ10 F-PS-FID-PART#22...
  • Page 20 ASSEMBLY DRAWING Seat cushion support assembly PRO SERIES SKU DESCRIPTION NOTE φ10 F-PS-FID-PART#13 Flat Washer (Black) F-PS-FID-PART#20 Silk φ16*116 F-PS-FID-PART#21 Hexagon Head Bolts (Black) M10*25 φ10 F-PS-FID-PART#22 Spring Gasket (Black) F-PS-FID-PART#32 Cushion Support Plate...
  • Page 21 ASSEMBLY DRAWING Back pad rear support assembly PRO SERIES SKU DESCRIPTION NOTE F-PS-FID-PART#13 Flat Washer (Black) φ10 F-PS-FID-PART#21 Hexagon Head Bolts (Black) M10*25 φ10 F-PS-FID-PART#22 Spring Gasket (Black) F-PS-FID-PART#35 Back Pad And Back Support Assembly parts F-PS-FID-PART#36 Back Support Rubber Pad φ22*φ18*φ12.2*15 F-PS-FID-PART#37 Powder Set...
  • Page 22 ASSEMBLY DRAWING 1-As shown in the figure, mount φ16*116-M10 inner wire shaft to the main body, assemble the rack assembly (18), and fix it with M10*25 hex bolts (black) (21), φ10 flat washer (black) (13), φ10 spring washer (black) (22) M10 lock nut (12). 2-Assemble the 4013 back pad rear support assembly (19) onto the main body and fix it with M10 lock nut (black) (21), φ10 flat washer (black) (13), φ12*147-M10 shaft (11).

  • Page 23: Warranty

    Force USA PRO will not be liable for any consequential damages or breach of any implied warranty on the range of Force USA PRO strength equipment. Force USA PRO reserves the right to provide reconditioned parts and/or to request a return and repair existing defective components on the Force USA PRO product.

This manual is also suitable for:

F-ps-fid
