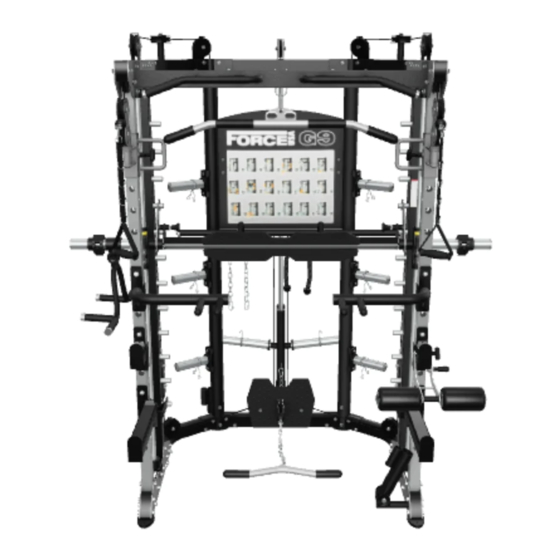

F-G9
OWNER'S MANUAL
CAUTION!
Read all precautions and instructions in this manual before using this equipment.

Advertisement

loading
Need help?

Need help?

Do you have a question about the F-G9 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Force USA F-G9

Summary of Contents for Force USA F-G9

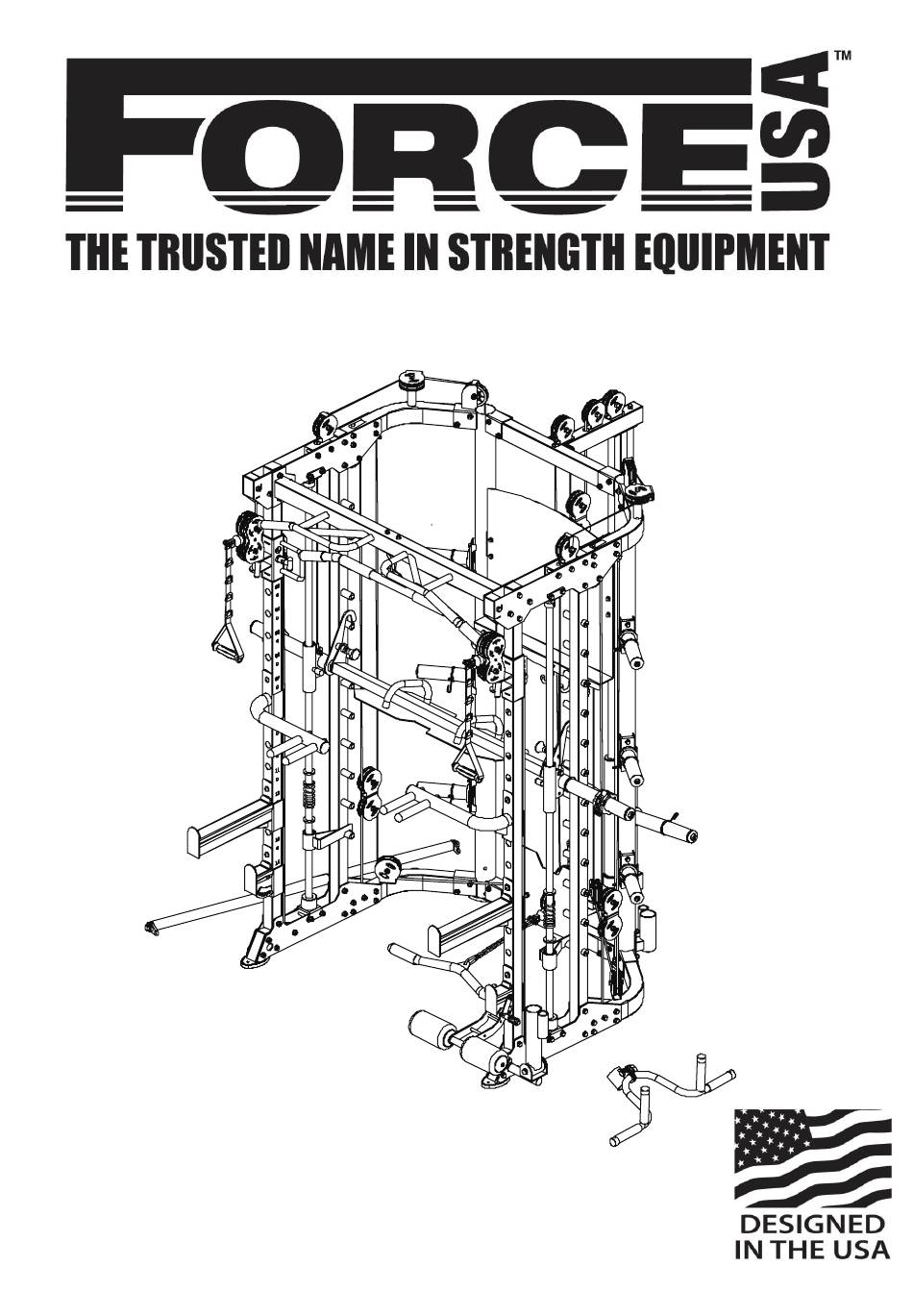

  • Page 1 F-G9 OWNER’S MANUAL CAUTION! Read all precautions and instructions in this manual before using this equipment.
  • Page 2 Parts list …………………………………………………………………………………………………………………………3-5 Assembly step 1 ………………………………………………………………………………………………………………6-7 Assembly step 2 ……………………………………………………………………………………………………………8-10 Assembly step 3 ……………………………………………………………………………………………………………11-12 Assembly step 4 ……………………………………………………………………………………………………………13-14 Assembly step 5 ……………………………………………………………………………………………………………15-16 Assembly step 6 ……………………………………………………………………………………………………………17-18 Assembly step 7 ……………………………………………………………………………………………………………19-20 Assembly step 8 ……………………………………………………………………………………………………………21-22 Assembly step 9 ……………………………………………………………………………………………………………23-24 Assembly step 10 …………………………………………………………………………………………………………25-26 Assembly step 11 …………………………………………………………………………………………………………27-28 Assembly step 12 …………………………………………………………………………………………………………29-30...

  • Page 3: Parts List

    Parts list Description Note Qty. connection tube upright frame left upright frame right bending tube left bending tube right upper connection tube upper bending tube right upper bending tube left hexagon bolt M10x75 lock nut washer Φ10 chin up bar upper plate pulley frame tube right pulley frame tube left...
  • Page 4 Parts list check ring pipe Φ50x310xT0.5 button head socket screw M12x40 spring washer Φ12 washer Φ12 barbell rod inner pipe Φ48x298x2.5T rubber pad Φ60xΦ26x25 upper connection tube short lower connection tube big sliding sleeve guide rod hollow rubber pad Φ60xΦ26x45 hexagon bolt M10x25 hexagon bolt...
  • Page 5 Parts list wire Φ5x9715mm pulley Φ50 shield barbell plate holder hexagon bolt M8x20 washer Φ8 lock nut core trainer powder metallurgy sleeve barbell rod cup big washer Φ25x10x2.0 dip bar left dip bar right barbell rod holder right barbell rod holder left barbell rod holder short left barbell rod holder short right barbell rod ring...

  • Page 6: Assembly Step

    Assembly step 1 No. Description Note Qty. connection tube upright frame left upright frame right bending tube left bending tube right upper connection tube upper bending tube right upper bending tube left hexagon bolt M10x75 lock nut washer Φ10...
  • Page 7 1 Fix bending tube left-4 fastening on upright frame left-2 using M10x75 hexagon bolt-9, Φ10 washer-11 and M10 lock nut-10 2 Fix bending tube right-5 fastening on upright frame right-3 using M10x75 hexagon bolt-9, Φ 10 washer-11 and M10 lock nut-10 3 Fix connection tube-1 fastening with bending tube left-4, bending tube right-5 using M10x75 hexagon bolt-9, Φ10 washer-11 and M10 lock nut-10 4 Fix upper connection tube-6 fastening on upright frame using M10x75 hexagon bolt-9, Φ10...
  • Page 8 Assembly step 2 No. Description Note Qty. hexagon bolt M10x75 10 lock nut 11 washer Φ10 12 chin up bar 13 upper plate 14 pulley frame tube right 15 pulley frame tube left 16 upright tube 17 tube with hole right 18 tube with hole left 19 lower plate 20 sliding tube right...
  • Page 10 1 Fix sliding tube left-21 on tube with hole left-18 2 Fix sliding tube right on tube with hole right-17 3 Fix upright tube-16 and tube with hole left-18 fastening on assembly step-1 using M10x75 hexagon bolt-9, Φ10 washer-11, M10 lock nut-10, upper plate-13 and lower plate-19 4 Fix pulley frame tube right-14 and pulley frame tube left-15 fastening on upper plate-13 using M10x75 hexagon bolt-9, Φ10 washer-11 and M10 lock nut-10 5 Fix end tube-23 fastening on upper plate-13 using M10x75 hexagon bolt-9, Φ10 washer-11...
  • Page 11 Assembly step 3 35 40 39 38 No. Description Note Qty. 10 lock nut 11 washer Φ10 25 lower base 26 upper base 27 guide rod Φ25x1850 28 lock sleeve 29 sliding sleeve 30 rubber pad with groove Φ60xΦ26x45 31 safety hook right 32 safety hook left 33 hexagon bolt M10x90...
  • Page 12 1 Fix lower base-25 fastening on lower plate using M10x90 hexagon bolt-33, Φ10 washer-11 and M10 lock nut-10 2 Fix upper base-26 fastening on upper plate using M10x90 hexagon bolt-33, Φ10 washer-11 and M10 lock nut-10 3 Guide rod in turn through lock sleeve-28, sliding sleeve-29, rubber pad-43, safety hook left- 32 and rubber pad with groove-30 fastening on base using M8x10 socket set screw-34 4 Barbell rod-41 in turn through sliding sleeve-29, check ring-36, inner pipe-42, pipe-37 and end cap-35 fastening using M12x40 button head socket screw-38, Φ12 spring washer-39...
  • Page 13 Assembly step 4 No. Description Note Qty. lock nut washer Φ10 spring washer Φ12 washer Φ12 upper connection tube short lower connection tube big sliding sleeve guide rod hollow rubber pad Φ60xΦ26x45 hexagon bolt M10x25 hexagon bolt M10x95 hexagon bolt M10x55 hexagon bolt M12x30...
  • Page 14 1 Fix upper connection tube short-44 fastening on main frame using M12x30 hexagon bolt-52, Φ12 spring washer-39 and Φ12 washer-40 2 Fix lower connection tube-45 fastening on main frame using M12x30 hexagon bolt-52, Φ12 spring washer-39 and Φ12 washer-40 3 Fix double pulley bracket-53 fastening on double pulley bracket-45 using M10x55 hexagon bolt-51, Φ10 washer-11 and M10 lock nut-10 4 Guide rod hollow-47 in turn through big sliding sleeve-46, rubber pad-48 fastening using M10x95 hexagon bolt-50, Φ10 washer-11 and M10x25 hexagon bolt-49...
  • Page 15 Assembly step 5 No. Description Note Qty. lock nut washer Φ10 hexagon bolt M10x25 wire Φ5x2745mm pulley Φ95 pulley plate hexagon bolt M10x45 hexagon bolt M10x50 weight...
  • Page 16 1 Connect wire-56 with weight-61, put them into upright frame 2 Fix pulley-57 fastening on upper bending tube using M10x50 hexagon bolt-60, pulley plate- 58, Φ10 washer-11 and M10 lock nut-10 3 Fix pulley-57 fastening on upper bending tube using M10x45 hexagon bolt-59, pulley plate- 58, Φ10 washer-11 and M10 lock nut-10 4 Fix wire-56 fastening on sliding sleeve outside using M10x25 hexagon bolt-49, Φ10 washer- 11 and M10 lock nut-10...
  • Page 17 Assembly step 6 No. Description Note Qty. lock nut washer Φ10 hexagon bolt M10x25 pulley Φ95 hexagon bolt M10x45 wire Φ5x4740mm "-" shaped pulley frame short bar footplate chain + 2 snap hook...
  • Page 18 1 As the shown in the figure fix pulley-57 fastening on main frame and ”-“ shape pulley frame-63 using M10x45 hexagon bolt-59, pulley plate-58, Φ10 washer-11 and M10 lock nut- 2 As the shown in the figure put the wire-62 3 Connect short bar-64 to wire using chain + 2 snap hook-66 4 Fix footplate-65 fastening on main frame using M10x25 hexagon bolt-49, Φ10 washer-11 and M10 lock nut-10...
  • Page 19 Assembly step 7 No. Description Note Qty. lock nut washer Φ10 hexagon bolt M10x80 hexagon bolt M10x25 pulley Φ95 hexagon bolt M10x45 "-" shaped pulley frame wire Φ5x4095mm pulley spacer sleeve Φ20x10.5xL20.5...
  • Page 20 1 As the shown in the figure fix pulley-57 fastening on upper plate using M10x80 hexagon bolt-24, Φ10 washer-11 and M10 lock nut-10 and pulley spacer sleeve-68 2 Fix pulley-57 fastening on ”-“ shape pulley frame-63 using M10x45 hexagon bolt-59, Φ10 washer-11 and M10 lock nut-10 3 As the shown in the figure put the wire-67 using M10x45 hexagon bolt-59, Φ10 washer-11 and M10 lock nut-10 fastening on bending tube, careful to keep the wire vertical...
  • Page 21 Assembly step 8 No. Description Note Qty. lock nut washer Φ10 pulley Φ95 hexagon bolt M10x45 pulley frame wire Φ5x1705mm 5 section chain + snap hook...
  • Page 22 1 Fix pulley-57 fastening on ”-“ shape pulley frame-63 using M10x45 hexagon bolt-59, Φ10 washer-11 and M10 lock nut-10 2 As the shown in the figure connect wire-70, pulley frame-69 and 5 section chain + snap hook-71 on the main frame...
  • Page 23 Assembly step 9 No. Description Note Qty. lock nut washer Φ10 hexagon bolt M10x80 hexagon bolt M10x25 pulley Φ95 hexagon bolt M10x45 pulley spacer sleeve Φ20x10.5xL20.5 wire Φ5x9715mm pulley Φ50...
  • Page 24 1 Fix pulley-57 fastening on main frame using M10x45 hexagon bolt-59, Φ10 washer-11 and M10 lock nut-10 2 Fix pulley-73 fastening on lower plate using M10x80 hexagon bolt-24, Φ10 washer-11 and M10 lock nut-10 and pulley spacer sleeve-68 3 As the shown in the figure put the wire-72 on the machine...
  • Page 25 Assembly step 10 No. Description Note Qty. shield barbell plate holder hexagon bolt M8x20 washer Φ8 lock nut...
  • Page 26 1 Fix shield-74 fastening on main frame using M8x20 hexagon bolt-76, Φ8 washer-77 and M8 lock nut-78 2 Fix barbell plate holder-75 on main frame using M8x20 hexagon bolt-76, Φ8 washer-77...
  • Page 27 Assembly step 11 50 11 No. Description Note Qty. lock nut washer Φ10 hexagon bolt M10x25 hexagon bolt M10x95 core trainer powder metallurgy sleeve barbell rod cup big washer Φ25x10x2.0...
  • Page 28 1 Fix core trainer-79 fastening on main frame using M10x25 hexagon bolt-49, Φ10 big washer-82 and powder metallurgy sleeve-80 2 Fix barbell rod cup-81 fastening on upright frame using M10x95 hexagon bolt-50, Φ10 washer-11 and M10 lock nut-10...
  • Page 29 Assembly step 12 No. Description Note Qty. dip bar left dip bar right barbell rod holder right barbell rod holder left barbell rod holder short left barbell rod holder short right long bar ship rod hand belt pull lift device T shape pin Φ10x100 leg curl tube...
  • Page 30 1 Connect leg curl tube-95 and barbell rod holder short left-87 using T shape pin-94 2 Put the attached part on the machine...
