Device Dimensions

132 (5.2)

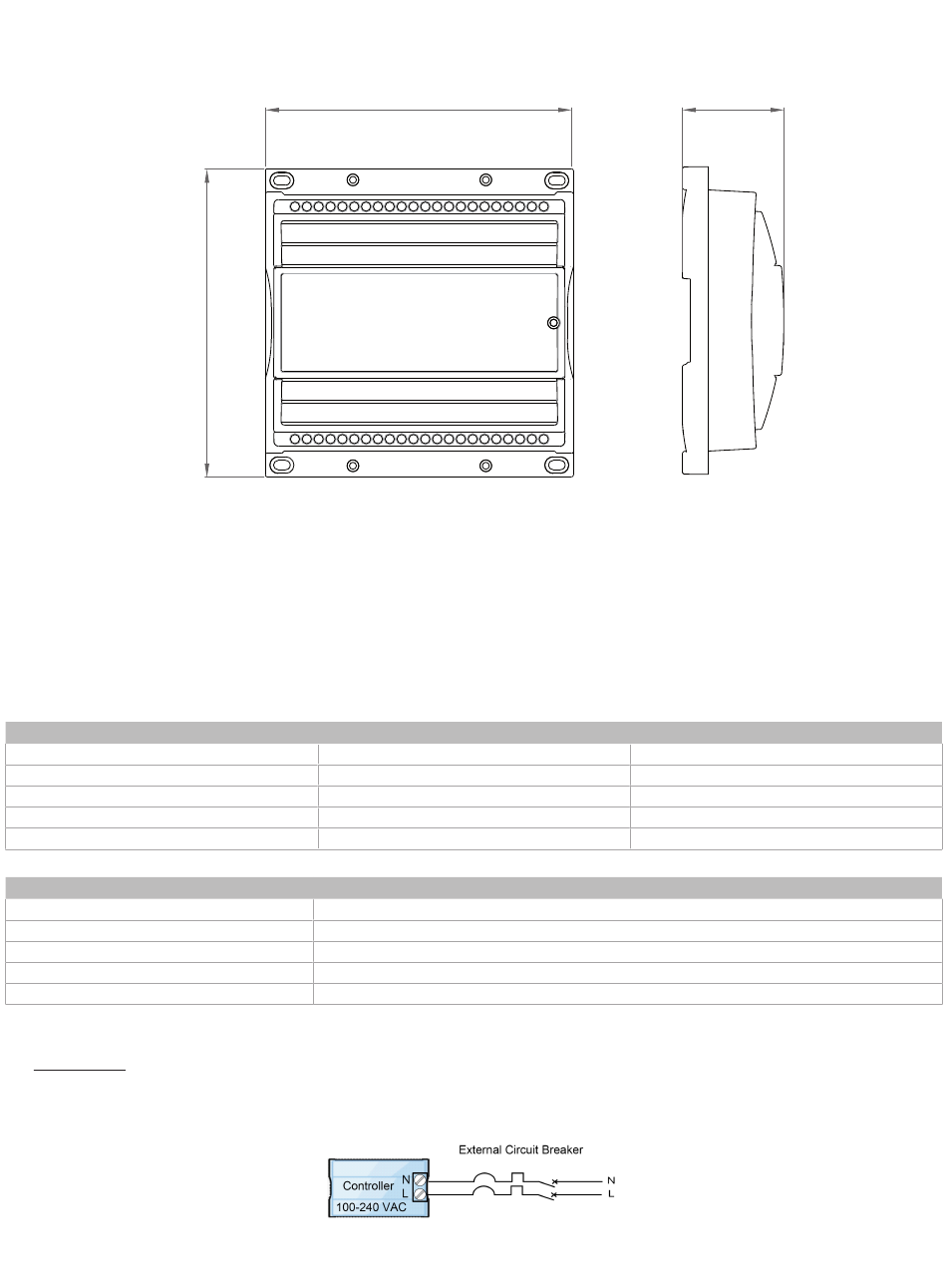

Figure 5: Front view and side view of the enclosure

Power Wiring

Voltage:
100-240 VAC; -15%/+10%; 50/60 Hz
Overvoltage Category II - 2.5 kV
Model
ECL-PTU-107
ECL-PTU-207
ECL-PTU-208
ECL-PTU-307
ECL-PTU-308
Table 1: ECL-PTU Controllers consumption
ECL-PTU-107
ECL-PTU-207
ECL-PTU-208
ECL-PTU-307
ECL-PTU-308
Table 2: ECL-PTU Controllers protection
The power supply must be connected to the mains using the provided detachable connector.
The Network Guide provides extensive information and requirements for powering a controller that uses a L
be downloaded from the Distech Controls' Documentation and Resources Portal.
Use an external circuit breaker/fuse on the mains to protect the module against power line spikes. The circuit breaker must be located close to the mod-
ule.
Figure 6: Power wiring
132 (5.2)
Typical Consumption
< 0.9 W + all external loads
< 0.9 W + all external loads
< 2.7 W + all external loads
< 0.9 W + all external loads
< 2.7 W + all external loads
4.0 A external circuit breaker type C or 4.0 A fast acting high breaking external fuse (250 VAC min)
4.0 A external circuit breaker type C or 4.0 A fast acting high breaking external fuse (250 VAC min)
4.0 A external circuit breaker type C or 4.0 A fast acting high breaking external fuse (250 VAC min)
4.0 A external circuit breaker type C or 4.0 A fast acting high breaking external fuse (250 VAC min)
4.0 A external circuit breaker type C or 4.0 A fast acting high breaking external fuse (250 VAC min)
44 (1.7)
mm (inches)
Max. Consumption
4.0 A
4.0 A
3.5 A
4.0 A
3.5 A
