Operation Instructions
Exact PipeCut
Operating instructions

Before operating the tool

- Ensure that the motor unit is in the upright
position. The yellow mark of the UNLOCK button
is visible.
- Check that the blade is correctly fitted, in good
condition and suitable for the material to be cut.
- Ensure the pipe saw guide wheels rotate.
- Ensure the support wheels rotate.
- Check the operation of the lower blade guard.
Ensure the pipe is empty.
If plastic pipes have been cut with the pipe saw
(resulting in long, statically charged chips), open the
blade guard cover, and clean carefully the lower
blade guard and the entire pipe saw.
Mounting the battery
NOTE: Use only Exact BAT18Vxx series
batteries.
Put a fully loaded battery to the battery rails of the
saw. Push it to the end so that it is properly
connected. Check that the battery is correctly in its
place by pushing the battery indicators button (Figure
A/3). If the battery is correctly mounted and fully
charged all the led lights will light up. If the battery has
been used the number of led lights indicates the
charging level of the battery. To take the battery off
from the saw, push the battery release button (A/2)
and pull the battery along the rails off from the saw
Fig B
170 Battery
.
Fig C
Cutting mark
Cutting point

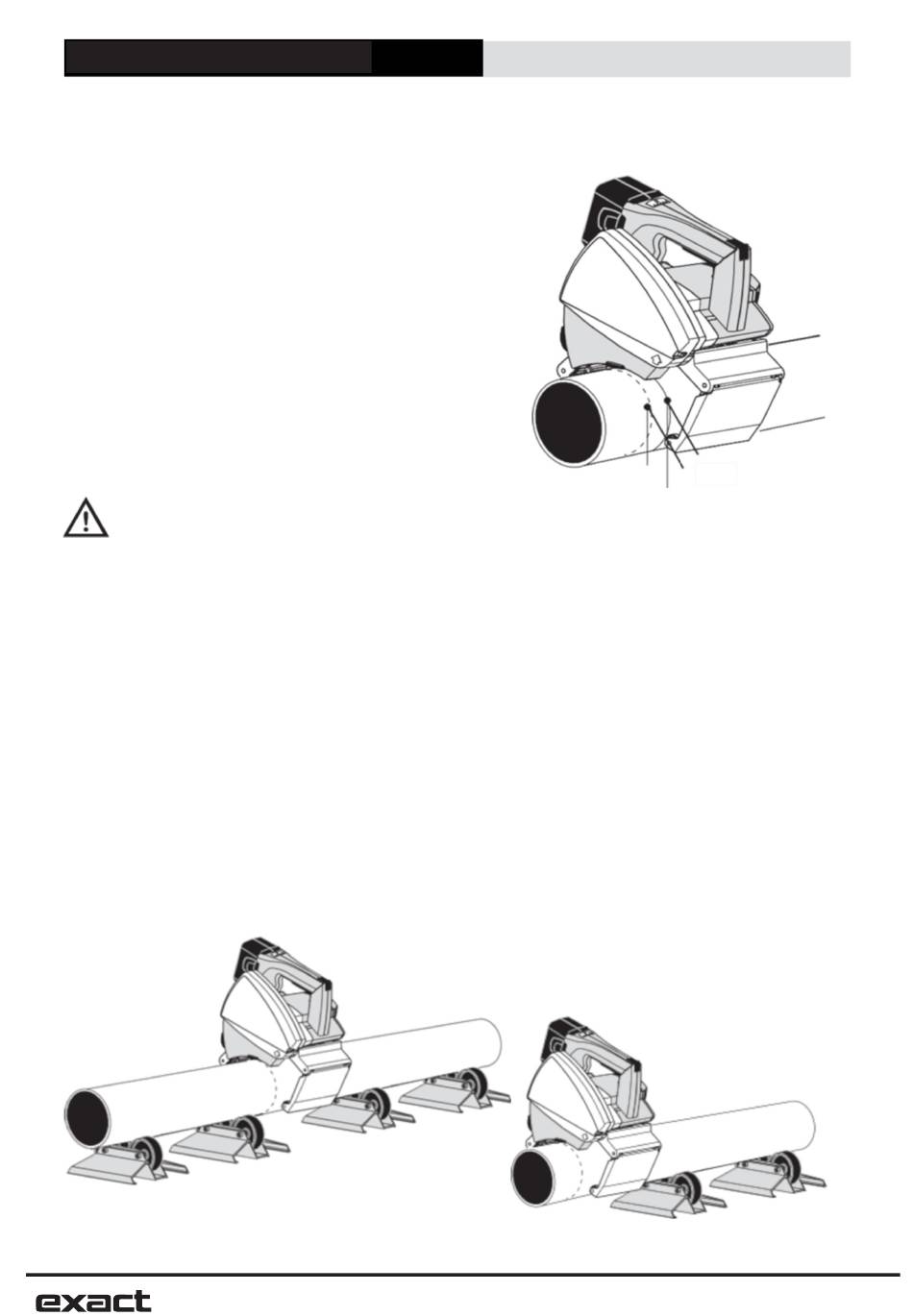

Precise setting of the cutting point

When you mark the cutting point on the pipe to be
cut, deduct 20 mm from the required dimension
(Figure C)

Setting the pipe on supports

Use the system supports when cutting pipes. This
will ensure safe working and optimum result. Work
on flat surface. Place the pipe on two supports so
that the cutting point is between the supports. Place
two more support under both ends of the pipe. Check
that all support wheel contact the pipe (adjust if
required e.g. with pieces of lumber) (Figure B).
When cutting short pipes (25 cm or less) place the
supports so that the cutting point is outside supports
(Figure D). Support the pipe with your left leg, if
required. Proper arrangements will prevent the blade
from jamming as the pipe is cut through.
14
eng lish
20 mm
Fig D
