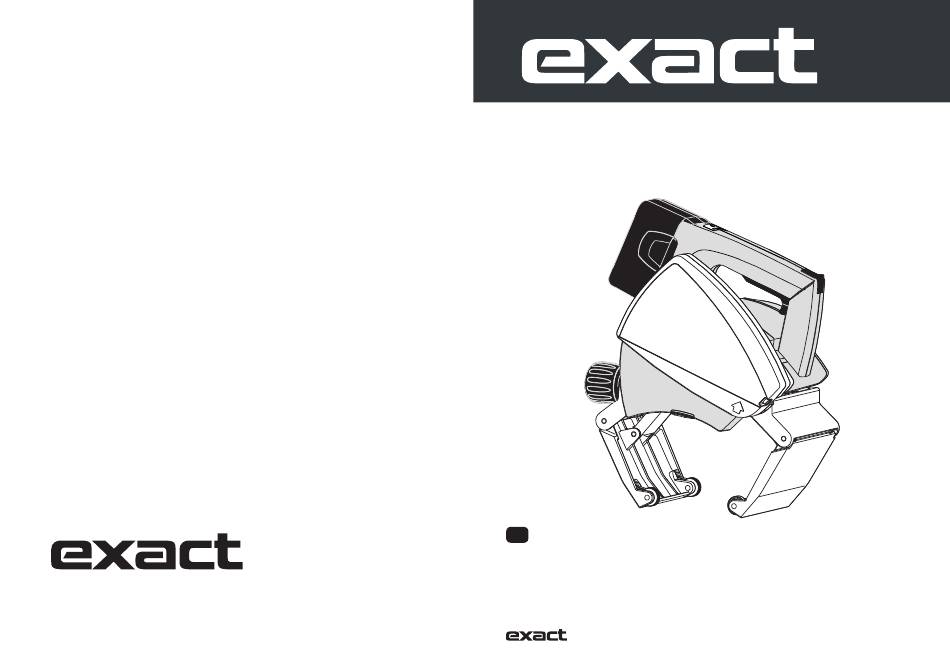

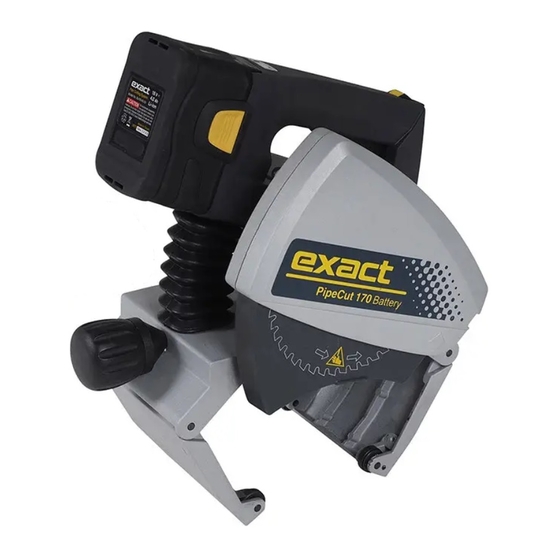

PipeCut 170
Battery
System
Exact Tools Oy
Särkiniementie 5 B 64
FI-00210 Helsinki
Finland
Tel +358 9 4366750
Fax +358 9 43667550
Operating Instructions
5-22
EN
exact @exacttools.com
www.exacttools.com
patents: US 7,257,895, JP 4010941, EP 1301311, FI 108927, KR 10-0634113

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PipeCut 170 and is the answer not in the manual?

Questions and answers

Related Manuals for eXact PipeCut 170

Summary of Contents for eXact PipeCut 170

  • Page 1 PipeCut 170 Battery System Exact Tools Oy Särkiniementie 5 B 64 FI-00210 Helsinki Finland Tel +358 9 4366750 Fax +358 9 43667550 Operating Instructions 5-22 exact @exacttools.com www.exacttools.com patents: US 7,257,895, JP 4010941, EP 1301311, FI 108927, KR 10-0634113...
  • Page 2 Exact PipeCut 170 Battery System Blade information for Exact PipeCut 170 Battery Use only Exact PipeCut Blade type Cermet 140 Thin with Exact PipeCut 170 Battery saw Exact PipeCut 170 Battery System Battery charger and its parts 1. Green LED indicator 2.
  • Page 4 EN55014-1, EN 55014-2, EN61000-3-2, EN61000-3-3 according to the provisions of the directives 2004/108/EC, 2006/42/EC. For more information, please contact Exact Tools at the following address. The technical fi le is available at the address underneath. The person authorized to compile the technical fi le: Mika Priha, R&D manager (mika.priha@exacttools.com)

  • Page 5: Table Of Contents

    Contents english The original language of this manual is English Contents 6. Technical data 7. Package contents Safety 8. Safety instructions 10. Intended use and product features Battery Charger 11. Charger information 11. Charger safety instructions 14. Charger operation 16. Charger maintenance, environment and guarantee Operation 17.

  • Page 6: Technical Data

    Also store this instruction book somewhere accessible to everyone using the pipe saw. In addition to these instructions, always follow the offi cial work, health and safety regulations. The Exact PipeCut 170 Battery is meant for professional use only. Technical data...

  • Page 7: Package Contents

    Please check the package contains the following items: 1. Pipecutting System case In the bigger compartment there should be the following items: 2. Exact PipeCut 170 Battery pipe saw 3. Cutting supports 4× 4. Operating instructions 5. Hex socket key 5 mm and 2 mm fi tted to the machine 6.

  • Page 8: Safety

    Safety english General power tool safety attached to a rotating part of the power tool may result in personal injury. warnings e) Do not overreach. Keep proper footing and balance at all times. This enables better control of WARNING: Read all safety warnings and all the power tool in unexpected situations.

  • Page 9: Safety Instructions

    Safety english Safety warnings for circular Further safety instructions for saws all saws Causes and operator prevention of kickback: DANGER: Keep hands away from Kickback is a sudden reaction to a pinched, bound cutting area and the blade. Keep your or misaligned saw blade, causing an uncontrolled second hand on motor housing.
  • Page 10 14 mm (0.55”) with c) Always observe that the guard is covering the plastics. The PipeCut 170 Battery pipe saw blade before placing saw down on bench or can be used to cut all normal pipe materials, fl...
  • Page 11 Charger Information english Operating, safety, and servicing instructions WARNING: DO NOT attempt to operate the tool until you have read and understood all instructions and safety rules contained in this manual. Failure to comply may result in accidents involving fi re, electric shock, or serious personal injury.

  • Page 12: Charger Safety Instructions

    Charger Safety english General safety rules 6. Do not use an extension cord unless it is absolutely necessary. Using the wrong, damaged or improperly wired extension cord could result in the risk of fi re and electrical WARNING!! Read and Understand All shock.
  • Page 13 Charger Safety english 15. Do not short circuit. Battery packs will short 17. This appliance is not intended for use by circuit if a metal object make a connection persons (including children) with reduced between the positive and negative contacts physical, sensory or mental capabilities, on the battery pack.
  • Page 14 Charger Operation english Exact Li-ion 18V Battery Charger DC18EU-02 Operating instructions Charger LED light indicator Intelligent Battery Charger with Air Forced Cooling System Stand by Charging Ready / Charged Temperature high or low Defective battery GREEN RED GREEN SITUATION No Light...

  • Page 15: Charger Operation

    Charger Operation english NOTE: The steady green light indicates foil, or any build-up of metallic particles that the battery pack is fully charged or in should be kept away from charger cavities. slow charging mode to maintain battery Always unplug the charger from the power pack charge level.

  • Page 16: Charger Maintenance, Environment And Guarantee

    CAUTION: DO NOT USE THE BATTERY PACK if it is damaged and liquid is leaked from the battery pack cells. If this leakage If the Exact charger becomes unusable due to gets on your skin, please wash affected material or manufacturing faults within 6 months...

  • Page 17: Operation

    Operation english Exact PipeCut 170 Bat- Fig C tery pipecutting system operating instructions Before operating the tool Ensure that the motor unit is in the upright position. The yellow mark of the UNLOCK button is visible. Check that the blade is correctly fi tted, in good condition and suitable for the material to be cut.

  • Page 18: Attaching The Pipe Saw To The Pipe

    Operation english Attaching the pipe saw to the pipe Fig E Open the pipe saw’s gripper unit enough to suit the diameter of the pipe by rotating the adjustment handle located at the rear of the saw (Fig. E/1). Position the pipe saw on top of the pipe so that the edge of the lower blade guard is at the cutting mark.

  • Page 19: Straightness Of Cut And Adjusting Wheel

    Operation english When the pipe is cut off, push the UNLOCK Fig J button forward until the yellow mark is visible and the locking is released (Fig L/1). Now raise the motor unit to starting position (Fig L/2). Release the power switch (Fig L/3). When the blade is stationary, remove the pipe saw from the pipe by loosening the knob of the gripping unit (Fig L/4).

  • Page 20: Installing And Changing The Saw Blade

    Operation english For this reason the result may vary, and the cut Fig N may turn to left or right (misalignment of the cut’s starting and ending point) (Fig M). The pipe saw gripper has one adjustable wheel (Fig A/9) which be used for improving the quality of the cut and for reducing the misalignment.
  • Page 21 WARNING: Since accessories, other WARNING: To reduce the risk of injury, than those offered by Exact Tools, have DO NOT TIE, TAPE, OR OTHERWISE not been tested with this product, use of LOCK THE ON/OFF SWITCH ON while such accessories with this tool could be “running in”.
  • Page 22 Term or *Extended Warranty Term at our discretion we will Check the condition of the blade regularly. repair the Exact PipeCut Saw or supply an entirely new or factory reconditioned Exact PipeCut Saw at no charge. The cutting procedure is divided into two stages; fi rst...
