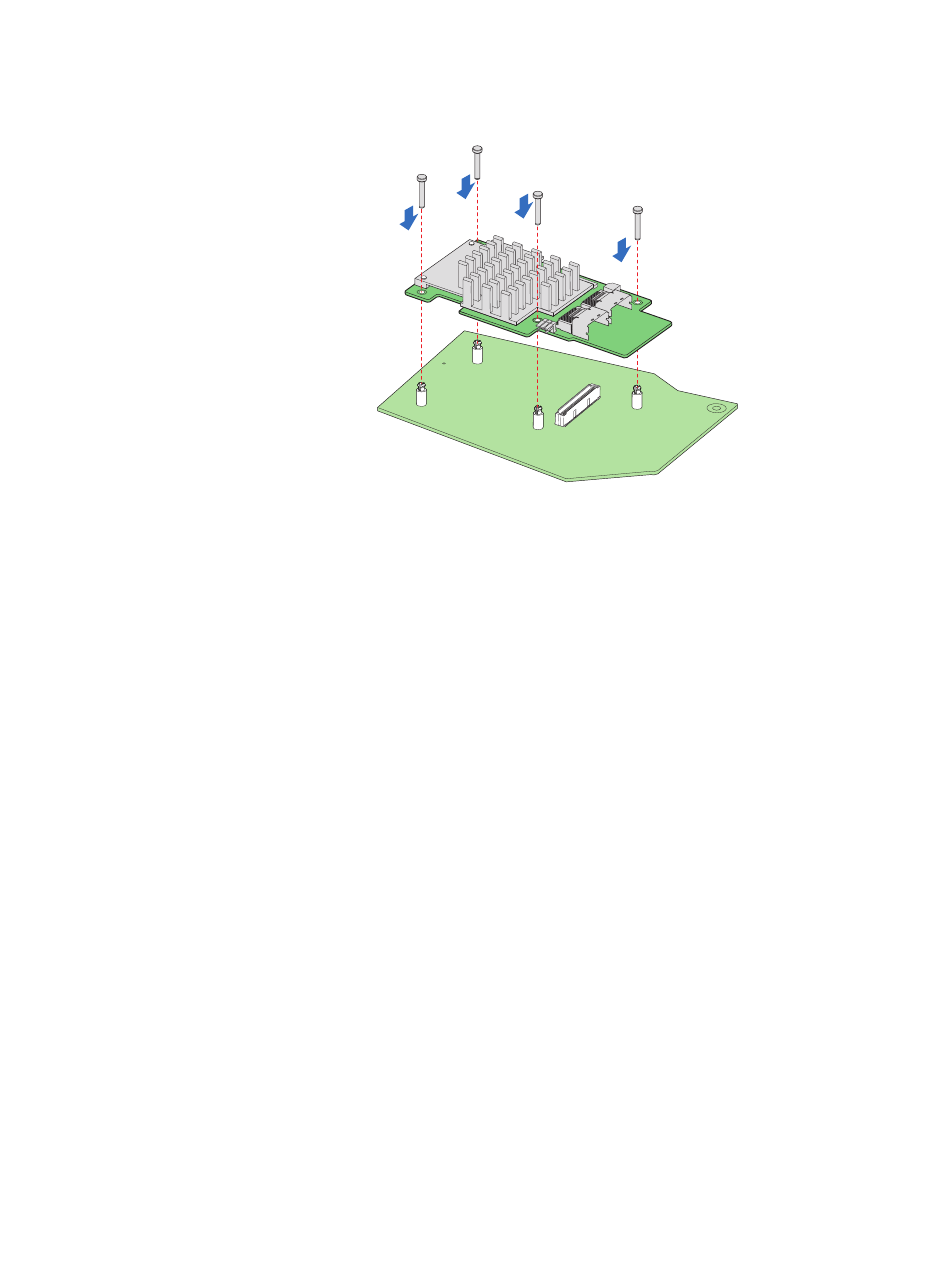

Figure 5. Installing The Intel ® Integrated Raid Module Rms25Cb0X0 - Intel RMS25PB080 Hardware User's Manual

Figure 5. Installing the Intel
5. Connect the proper cables into the adapter using the 4-port combined end. Make
sure the module and cables are properly attached and plug the cable into connector
at the inside edge of the adapter.
Note: To prevent throughput problems:
Intel® Integrated RAID Module RMS25PB0x0 and RMS25CB0x0 Hardware User's Guide
✧ Use the cables provided or use the shortest possible cable.
✧ Do not use cables longer than one meter.
✧ Decrease the maximum length by one foot if you are using a backplane.
✧ Do not use cross-over cables.
✧ Only connect to a SATA drive, SAS or SATA backplane, or an
expander device.
✧ Route the cables carefully.
✧ Check that the module and cables are all properly attached.
®
Integrated RAID Module RMS25CB0x0
AF004407
11
