Note: To prevent throughput problems:

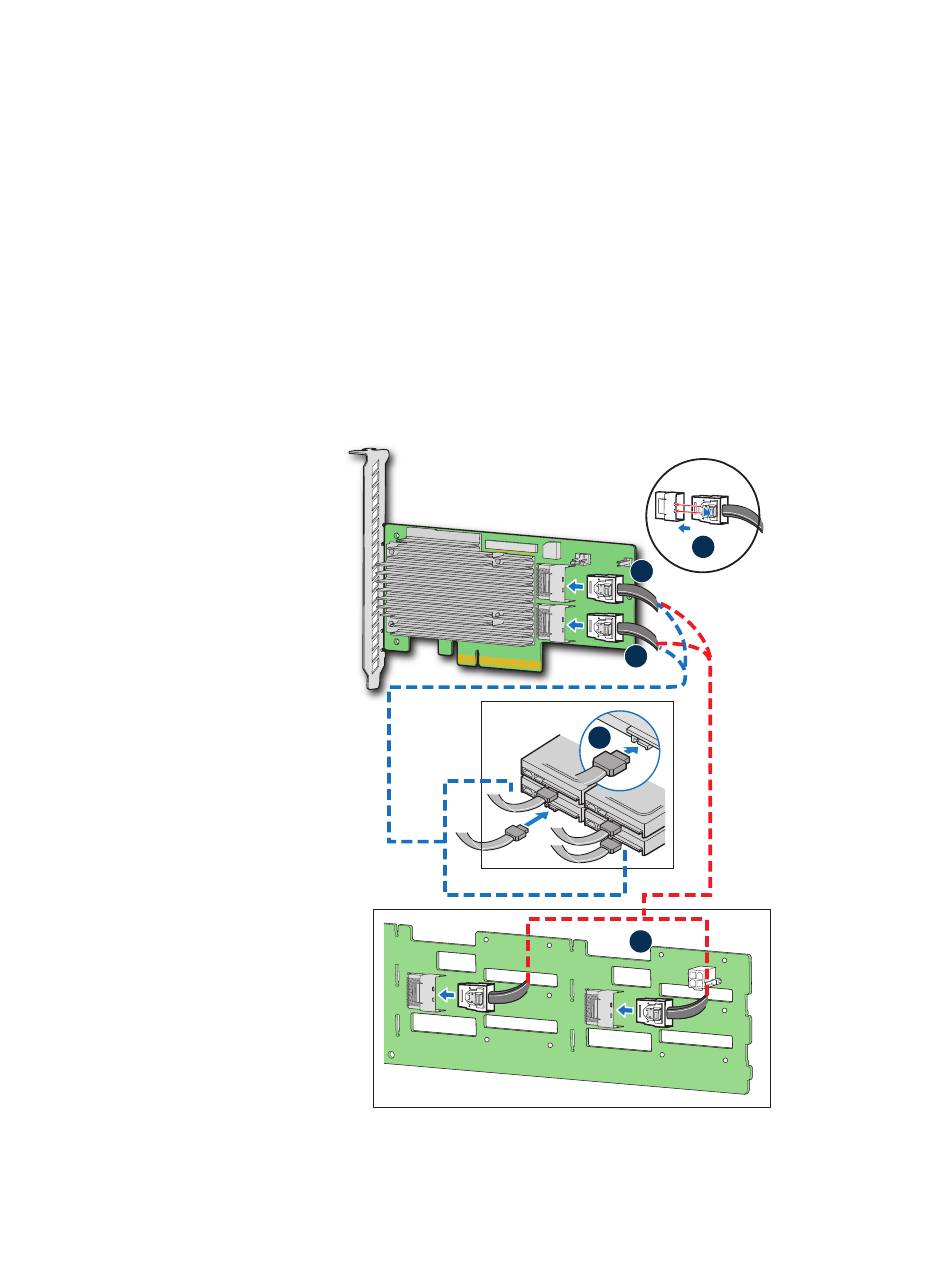

Figure 3. Connecting Cable between the RAID Module and Drives/Backplane

Intel® Integrated RAID Module RMS25PB0x0 and RMS25CB0x0 Hardware User's Guide
✧ Use the cables provided or use the shortest possible cable.
✧ Do not use cables longer than one meter.
✧ Decrease the maximum length by one foot if you are using a backplane.
✧ Do not use cross-over cables.
✧ Only connect to a SATA drive, SAS or SATA backplane, or an
expander device.
✧ Route the cables carefully.
✧ Check that the module and cables are all properly attached.
B
A
C
D
D
AF004424
