Summary of Contents for Manhattan Comfort Eiffel 253BMC6

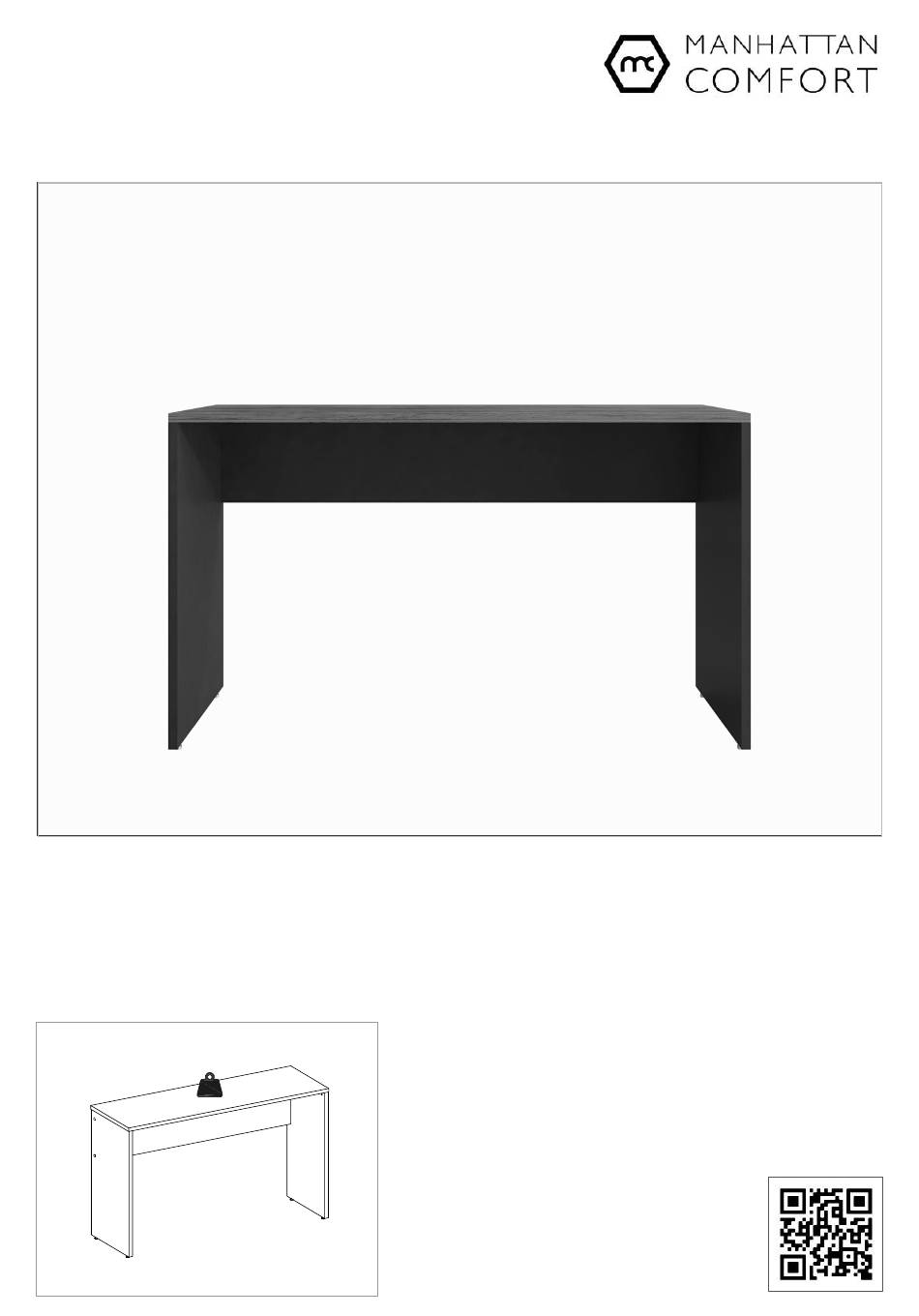

Page 1

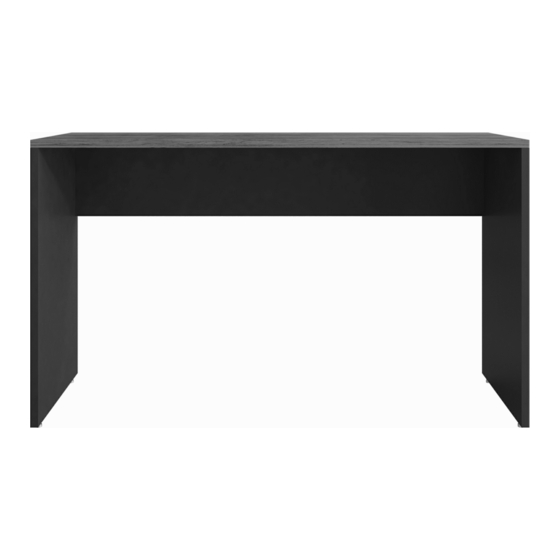

Office Desk / Table de travail Model # 253BMC6, 253BMC8, 253BMC83, 253BMC84, 253BMC85 The indicated value consider static weight and evenly distributed over the part. Les valeur indiquée tiennent compte des poid statique et uniformément répartis sur le pièce. Ed. 001, 2022/06 - Manhattan Comfort.
Page 2
INCLUDED IN THE PACKAGE / INCLUS DANS LE PACKAGE n.° ID Parts identification (Description) / Identification des pièces (Description) Quantity / Quantité Back Panel / Panneau arrière Left Side Panel / Panneau latéral gauche Right Side Panel / Panneau latéral droit Top Panel / Panneau du haut...
Page 3
TOOLS NEEDED / OUTILS NÉCESSAIRES Manual screwdriver. Simple hammer. Electric screwdriver with phillips tips. Tournevis manuel. Marteau simple. Tournevis électrique avec pointes phillips. INCLUDED IN THE HARDWARE / INCLUS DANS LE MATÉRIEL...
Page 4
STEP 1 / ÉTAPE 1 Assembling the table frame: • Insert the plastic bushing and leveling base (A) into the indicated holes under the Left Side Panel (02) and Right Side Panel (03). • Conect the Side Panels (02) and (03) to the Back Panel (01) with dowels (B) and bolts (C).
