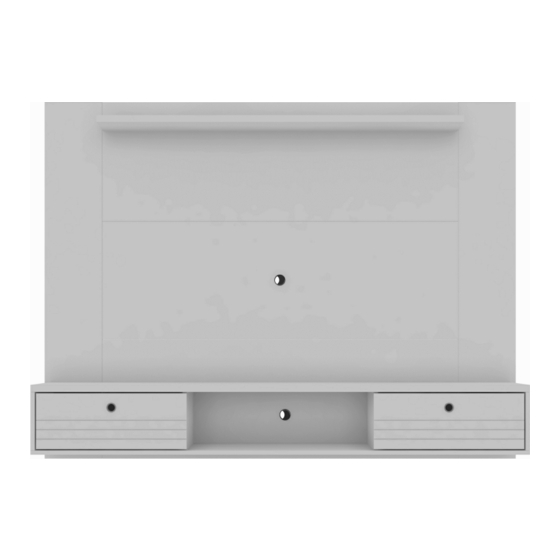

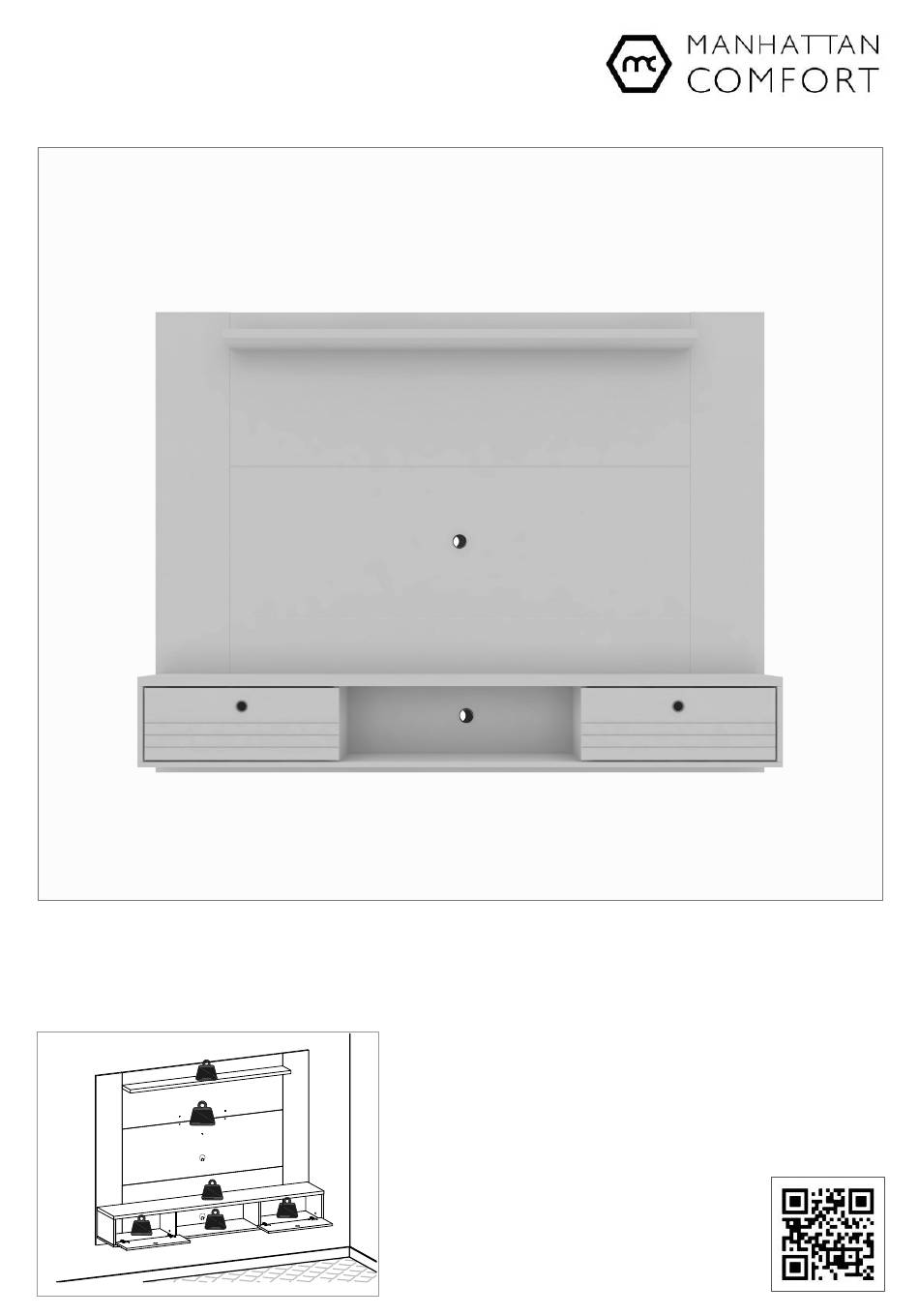

- Page 1 888-230-2225 help@manhattancomfort.com Liberty 70.86 Floating Entertainment Center Model # 235BMC6, 235BMC8, 235BMC9 The indicated values consider static weights and evenly distributed over the parts. Ed. 001, 2020/05 - Manhattan Comfort.
- Page 2 INCLUDED IN THE PACKAGE REAR VIEW For fixing behind the panel For fixing on the wall n.° ID Parts Identification (Description) Quantity Lower Panel Middle Panel Upper Panel Left/Right Panel Rear Column Rear Bar Lower Shelf Side Panel Partition Tilting Door Middle Shelf Upper Shelf Bar for wall...
- Page 3 TOOLS NEEDED Flat head and phillips Simple hammer. Level indicator. Electric drill and electric screwdriver with screwdriver. drill bit Ø1/2 inch and phillips tips. IMPORTANT! Two people are recommended to assemble and install this product. INCLUDED IN THE HARDWARE (main color) (secondary color)
- Page 4 STEP 1 • Line the floor with the foam mantle of the packing to protect the parts and arrange the Panels (01), (02), (03) and (04) with the rear face upwards, correctly checking the position of each as holes and as the drawing. Rear face Rear face ATTENTION!
- Page 5 STEP 4 Adjustment Fixer bolt bolt DETAIL 3 • Connect the Side Panel (08) and the Partitions (09) in the Base (07) with dowels (G) and cam lock hardware (H+I). • Fix the hinge connectors (K) of the Doors (10) on the Base (07) with bolts (L), taking the markings on the Base (07) as a reference for correct positioning.
- Page 6 STEP 6 ATENTION! DETAIL 4 Before installing the panel, check 1/2 inch hole the conditions of the wall for in the wall strength to properly support and anchor the weight of the Kap Toggle suspended furniture, including bushing (P) equipment and objects that may be fixed to the panel.
- Page 7 STEP 7 Fixed on the wall. • With the Panel already assembled, fit the Bar (06) fixed behind the panel Fixed in the Bar (13) fixed on behind the panel. the wall. STEP 8 • At the end of the installation, apply the security bolt (C) in the indicated hole, to fix the Middle Panel (02) in the Bar...
