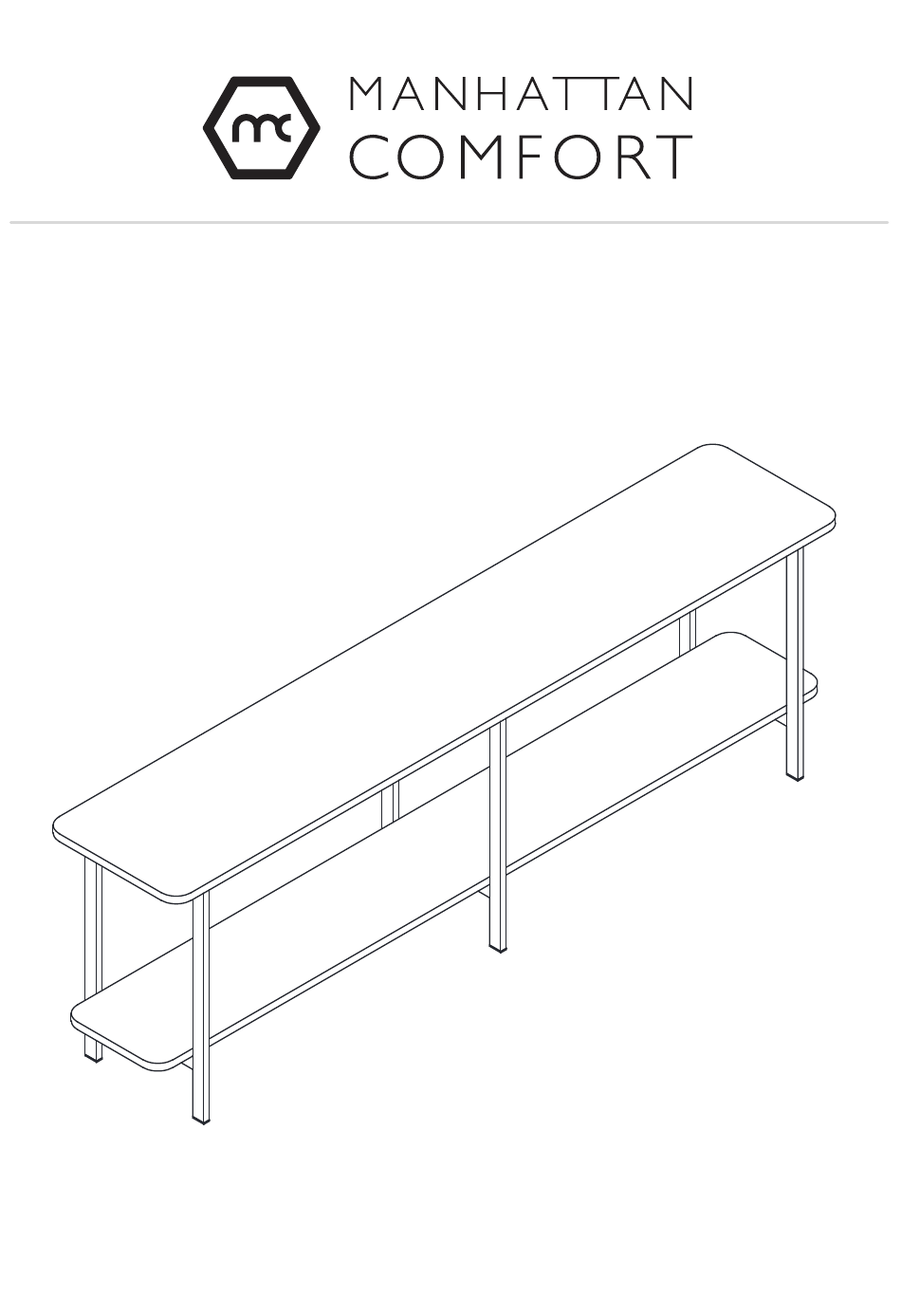

- Page 1 25555 V.18122023...
-
Page 2: For Best Results
STOP! STOP! Before beginning the assembly process, ensure all boxes and parts have been delivered. FOR BEST RESULTS: • Do not throw away packaging materials until assembly is complete. • Assemble item on a soft surface, such as cardboard or carpet, to protect finish. •... -
Page 3: Included In This Package
Included in this package: A. Top Shelf (1) B. Middle Shelf (1) C. End Frames (2) D. Middle Frame (1) E: Connecting Tubes (4) Page 3 25555... -
Page 4: Hardware Identification
Hardware Identifi cation Page 4 25555... - Page 5 Page 5 25555...
- Page 6 Step 1 ◆ Fasten the two Connecting Tubes (E) onto the Top Shelf (A) by using four screws (1). Attention: Do not fully tighten the screws at this stage. ◆ Fasten the Middle Frame (D) onto the Top Shelf (A) by using two screws (1). Attention: Do not fully tighten the screws at this stage.
- Page 7 Step 2 ◆ Use two screws (1) to pass through the Middle Frame (D) and fasten it on the Connecting Tubes (E). Attention: Do not fully tighten the screws at this stage. Page 7 25555...
- Page 8 Step 3 Use six screws (1) to pass through the End Frames (C), ◆ fasten it on the Connecting Tubes (E) and the Top Shelf (A). Attention: Do not fully tighten the screws at this stage. Attention: If the screw holes on the End Frames (C) is not aligned with the Connecting Tube (E) and the Top Shelf (A), please turn the End Frame (C) 180 degrees.
- Page 9 Step 4 Use four screws (1) to pass through the End Frame (C) and the Middle Frame (D), ◆ fasten them onto the Connecting Tubes (E). Attention: Do not fully tighten the screws at this stage. Now you can fully tighten all screws from Step 1 to Step 4 Page 9 25555...
- Page 10 Step 5 Fasten the Middle Shelf (B) by using ten screws (1) to pass through the End Frames (C), ◆ the Middle Frame (D) and the Connecting Tubes (E). You should start each SCREW a few turns before completely tightening any of them. Page 10 25555...
-
Page 11: Warranty Policy
WARRANTY POLICY All Manhattan Comfort furniture products are warranted, to the original purchaser at the time of purchase and for a period of 30 days thereafter. Our warranty is limited to new products purchased in factory sealed cartons. This warranty is valid in the United States of America and Canada.
