Long Floating Entertainment Center / Panneau Suspendu Long pour TV
11
lb
40
lb
22
lb
11
lb
11
lb
The indicated values consider static weights and evenly distributed over the parts.
Les valeurs indiquées tiennent compte des poids statiques et uniformément répartis sur les pièces.
11
lb
help@manhattancomfort.com
Libra 45.35
Model # 237BMC6, 237BMC8, 237BMC9, 237BMC97
888-230-2225
Ed. 002, 2020/10 - Manhattan Comfort.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Manhattan Comfort Libra 45.35
Summary of Contents for Manhattan Comfort Libra 45.35

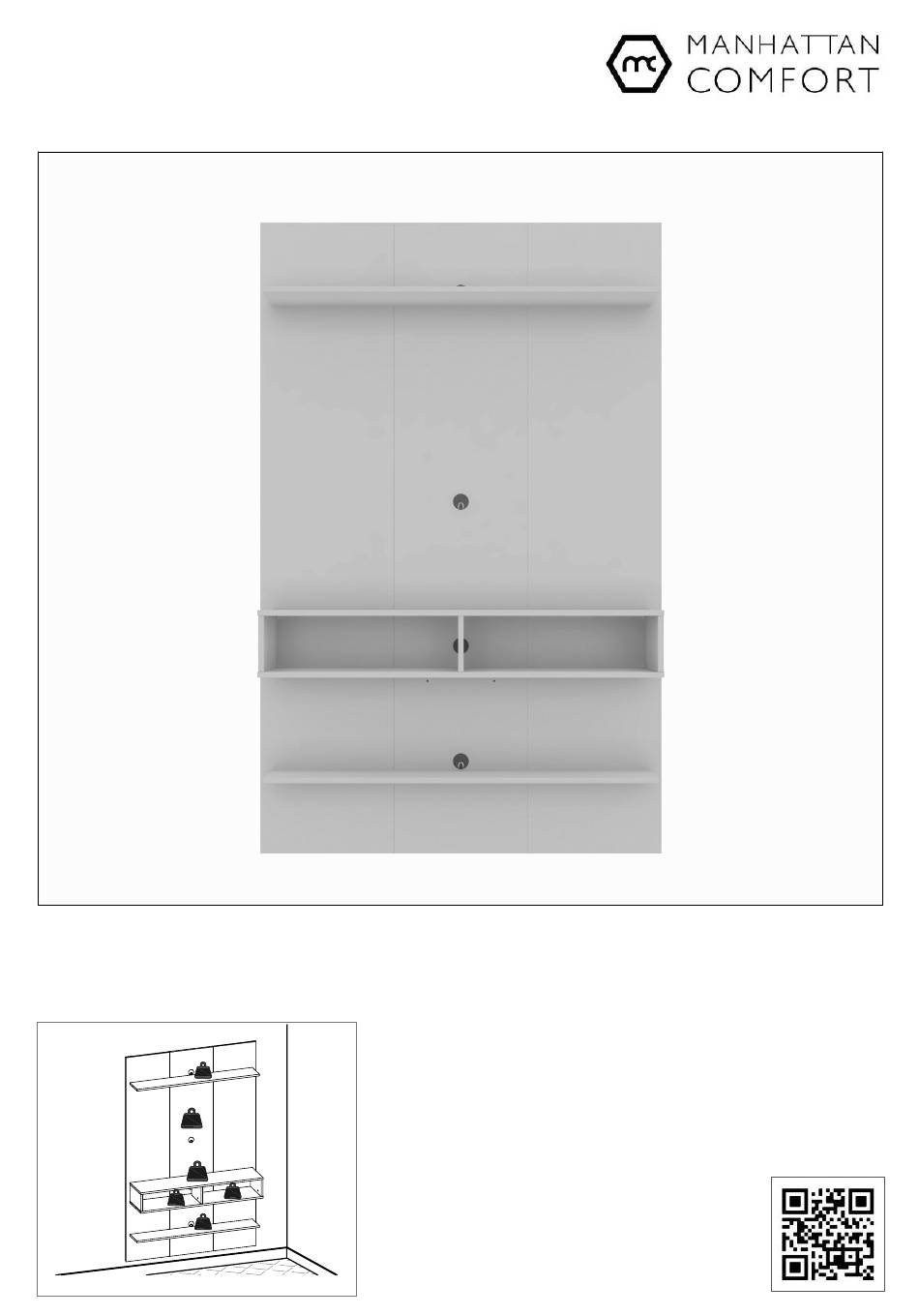

- Page 1 Long Floating Entertainment Center / Panneau Suspendu Long pour TV Model # 237BMC6, 237BMC8, 237BMC9, 237BMC97 The indicated values consider static weights and evenly distributed over the parts. Les valeurs indiquées tiennent compte des poids statiques et uniformément répartis sur les pièces. Ed. 002, 2020/10 - Manhattan Comfort.
- Page 2 INCLUDED IN THE PACKAGE / INCLUS DANS LE PACKAGE REAR VIEW / VUE ARRIÈRE For fixing behind the panel. Pour fixation derrière les panneaux. For fixing on the wall. Pour fixation au mur. For fixing on the wall. Pour fixation au mur.
- Page 3 TOOLS NEEDED / OUTILS NÉCESSAIRES Manual screwdriver. Simple hammer. Level indicator. Electric drill and electric Tournevis manuel. Marteau simple. Indicateur de niveau. screwdriver with drill bit Ø1/2 inch and phillips tips. Perceuse électrique et tournevis électrique avec foret Ø1/2 pouce et pointes phillips.
- Page 4 STEP 1 / ÉTAPE 1 DETAIL 1 / DÉTAIL 1 • Line the floor with the cardboard and the foam mantle of the packing to protect the parts and arrange the Panels (01) and (02) with the rear face upwards , correctly checking the position of each according the holes and the drawing.
- Page 5 STEP 4 / ÉTAPE 4 ATTENTION! Before installing the panel, check the conditions of the wall for strength to properly support and anchor the weight DETAIL 4 of the suspended furniture, including DÉTAIL 4 the equipment and objects that may be Ø1/2 inch hole in the wall Trou Ø1/2 pouce dans le mur fixed to the panel.
- Page 6 STEP 5 / ÉTAPE 5 Fixed on the wall. Fixé au mur. Fixed behind the panel. • With the Panel already assembled, Fixé derrière le panneau. fit the Bar (04) fixed behind the panel in the Bar (10) fixed on the wall.
