888-230-2225
help@manhattancomfort.com
Eiffel 28.35 Floating Cabinet

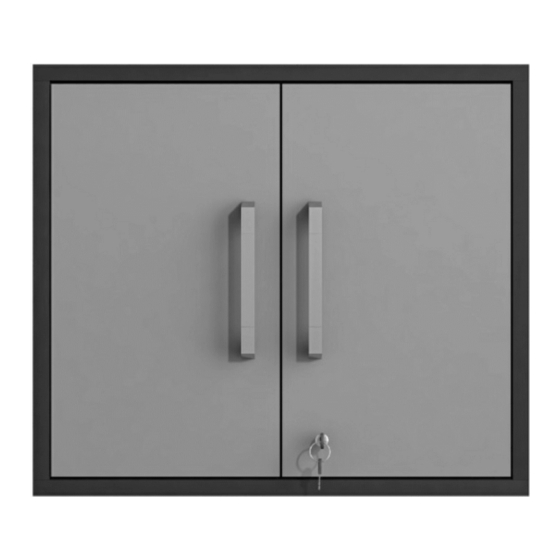

2 Doors Floating Cabinet / Armoire flottante 2 portes
Model # 251BMC6, 251BMC8, 251BMC83, 251BMC84, 251BMC85
18
lb
11
lb
18
lb
The indicated values consider static weights and evenly distributed over the parts.
Les valeurs indiquées tiennent compte des poids statiques et uniformément répartis sur les pièces.
Ed. 001, 2022/06 - Manhattan Comfort.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Manhattan Comfort Eiffel 251BMC6
Summary of Contents for Manhattan Comfort Eiffel 251BMC6
- Page 1 2 Doors Floating Cabinet / Armoire flottante 2 portes Model # 251BMC6, 251BMC8, 251BMC83, 251BMC84, 251BMC85 The indicated values consider static weights and evenly distributed over the parts. Les valeurs indiquées tiennent compte des poids statiques et uniformément répartis sur les pièces. Ed. 001, 2022/06 - Manhattan Comfort.
- Page 2 INCLUDED IN THE PACKAGE / INCLUS DANS LE PACKAGE REAR VIEW / VUE ARRIÈRE FRONT VIEW / VUE DE FACE FINAL APPEARANCE / APPARENCE FINALE n.° ID Parts identification (Description) / Identification des pièces (Description) Quantity / Quantité Top Panel and Base / Panneau du haut et Base Side Panel / Panneau latéral Back Panel / Panneau arrière Shelf / Étagère...
- Page 3 TOOLS NEEDED / OUTILS NÉCESSAIRES Manual screwdriver. Simple hammer. Level indicator. Electric drill and electric Tournevis manuel. Marteau simple. Indicateur de niveau. screwdriver with drill bit Ø1/2 inch and phillips tips. Perceuse électrique et tournevis électrique avec foret Ø1/2 pouce et pointes phillips.
- Page 4 STEP 1 / ÉTAPE 1 DETAIL 1 / DÉTAIL 1 Preparing the Side Panels (02): • Fix the metal brackets (E) with bolts (H) in the Side Panels (02), as shown in the DETAIL 1 and DETAIL 2. Préparation des Panneaux latéraux (02): •...
- Page 5 STEP 4 / ÉTAPE 4 ATTENTION! Before installing the cabinet, check FRONT VIEW / VUE DE FACE the conditions of the wall to anchor it and the existence and posicion of hydraulic, electrical and gas pipes, avoiding damage to these structures when drilling the holes for the bushings and bolts.
- Page 6 STEP 6 / ÉTAPE 6 DETAIL 5 / DÉTAIL 5 Installing the Shelf (04): • Insert the metal brackets (P) into the holes in the Side Panels (02) and install the Shelf (04) over them. • If you prefer, fix the Shelf (04) on the metal brackets (P) applying the bolts (H), as shown in the DETAIL 5.
