Assembly instructions for Handivipp
MED3051

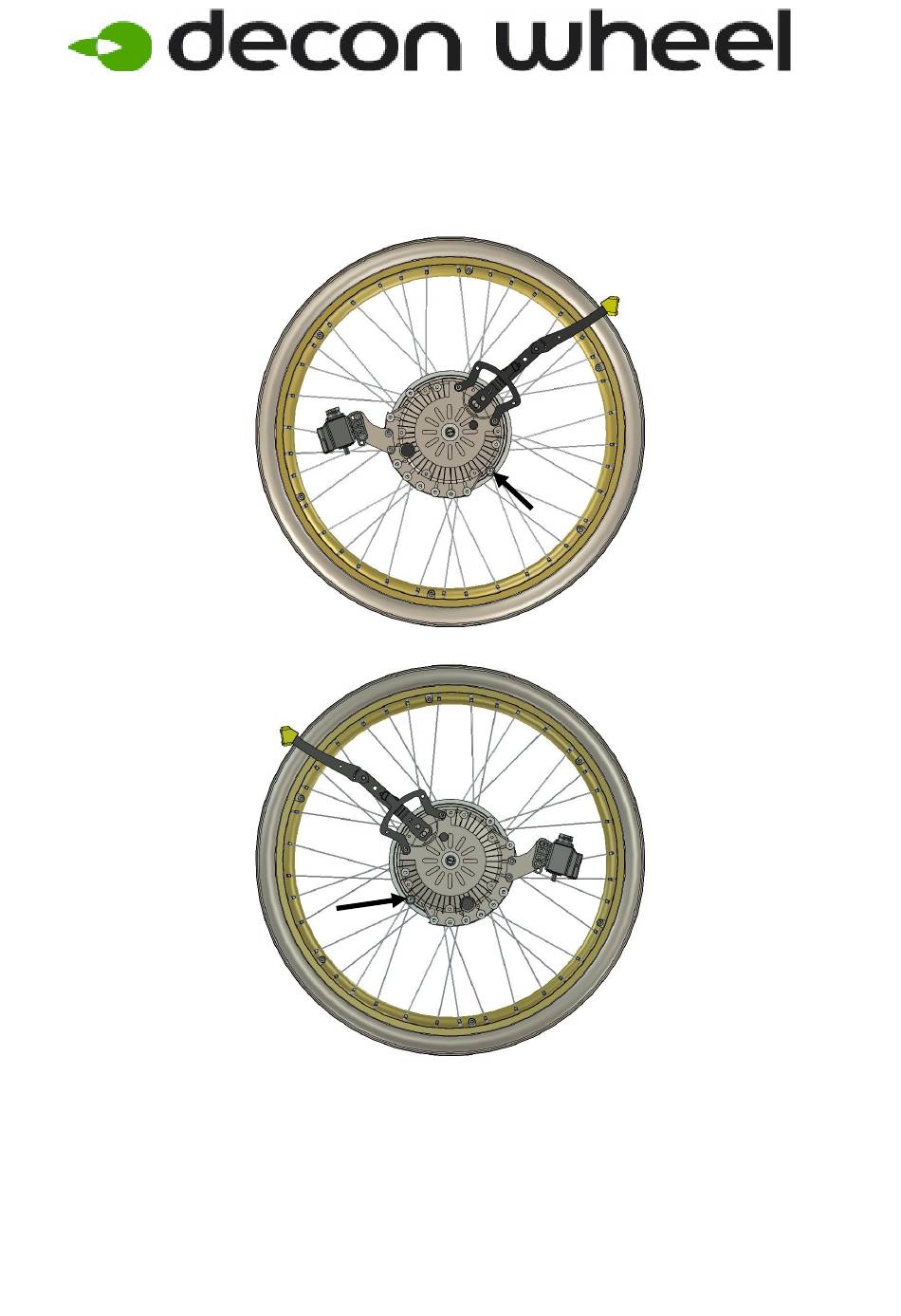

1. Remove wheels and sleeves on both sides.
2. Check the correct placement for the stop pin. Use wheelchairs anti tip
devices, do not use anti tip devices on the E-drive unit.
4/21/2020

Advertisement

loading
Need help?

Need help?

Do you have a question about the Handivipp MED3051 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Decon wheel Handivipp MED3051

  • Page 1 Assembly instructions for Handivipp MED3051 1. Remove wheels and sleeves on both sides. 2. Check the correct placement for the stop pin. Use wheelchairs anti tip devices, do not use anti tip devices on the E-drive unit. 4/21/2020...
  • Page 2 3. Assembly the plate (right side) according to picture. 4. Parts pair mountingset: Item No. Part Number Description MED 2004 Bracket HW069 Hubsleever M16x1/12,7 100 400 017 Spacer 405239 Nordlock Washer M16 XSM16FJ Single Coil Washer M16 XSM16M Nut M16X1 Low 100 400 007 Spacer XSM8BR...
  • Page 3 Assemble the Joystick ITEM PART NUMBER DESCRIPTION XOC-48160-B0 SwingAway Bracket MED1500 Bracket XSM6X16 Screw Round M6 x16 XSM6BR Plain Washer M6 XSM6ML Lock Nut M6 MED1320 Bracket NJF1022 Ball pin with pin X0F-48160-D00 Sliding bracket assembly 4/21/2020...
  • Page 4 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Gänga / Thread Åtdragningsmoment / Tightening torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsor. Sleeves. Gänga / Thread Åtdragningsmoment / Tightening torque M16x1 30 Nm M18x1...
