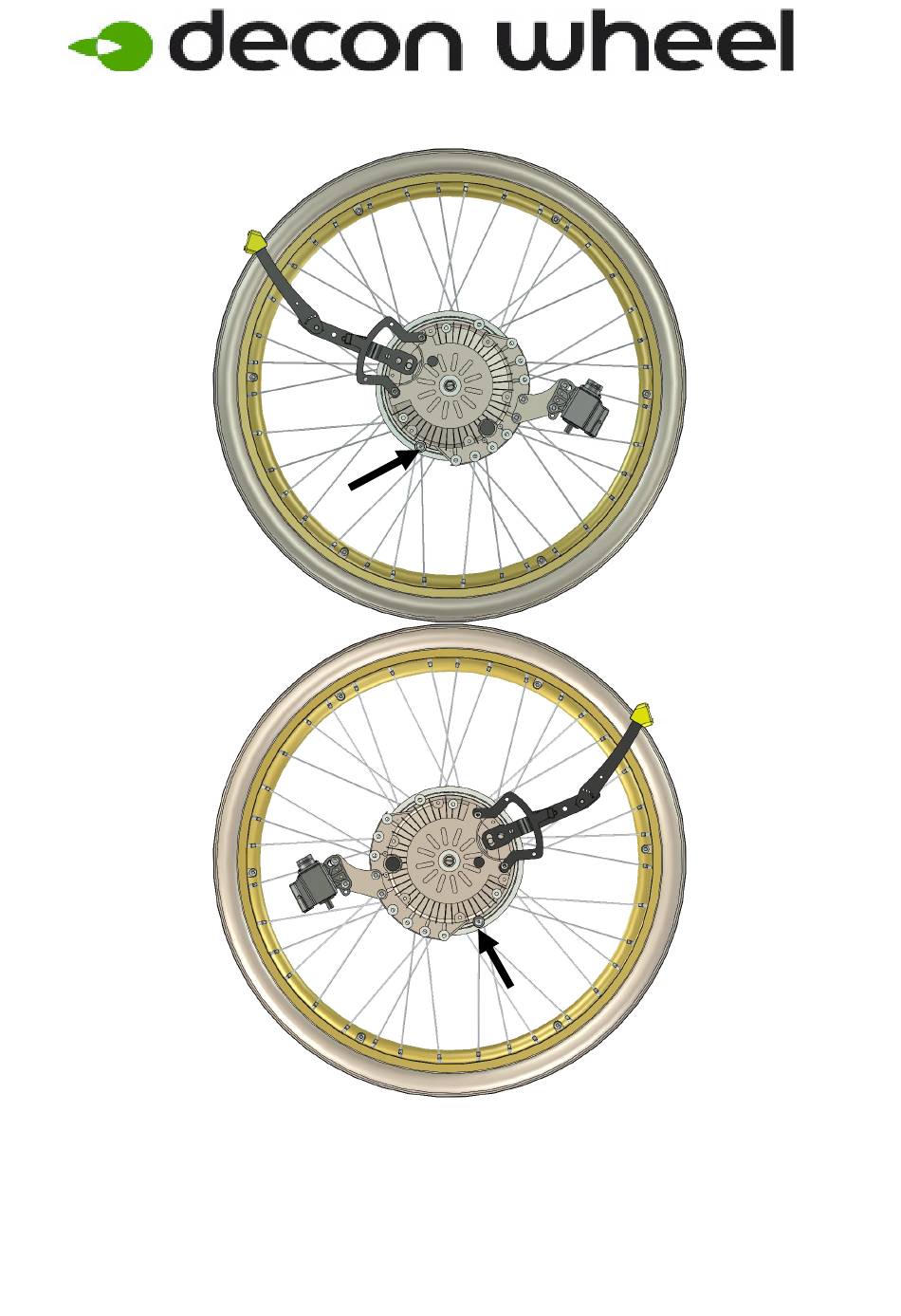

- Page 1 Assembly instructions for Canto, Canto Nxt MED3017 1. Remove wheels on both sides. 2. Check the correct placement for the stop pin and that the anti-tip devices are removed. 2020-06-23...
- Page 2 3. Assembly the plate (right side) according to picture. Parts pair mountingset: Item No. Part Number Description 100 500 100 Bracket HW069 Hubsleever E-drive 100 400 006 Spacer 100 400 007 Spacer 100 400 002 Spacer XSM16M Nut M16X1 Low XSM8X35 Screw M8 x 35 XSM8ML...
- Page 3 Joystick Control Item No. Part Number Description XOC-48160-B0 Upper holder assembly 2 MED3070-01 Rev2 Bracket 2020-06-23...
- Page 4 Attendant Control MED1250 Item No. Part Number Description XSM6X30 Screw Round M6,x 30 XSM6ML Nut Self-Locking M6 MCG1151-18 Handle Bracket 3 XSM6BRTG Thorn Washer M6 4. Assemble the back placed battery bag. 2020-06-23...
- Page 5 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Gänga / Thread Åtdragningsmoment / Tightening torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsor. Sleeves. Gänga / Thread Åtdragningsmoment / Tightening torque M16x1 30 Nm M18x1...
