Assembly instructions for Rea Spirea 3 med e-Drive
MED3044
1. Remove wheel, sleeve and anti-tip device on both sides.

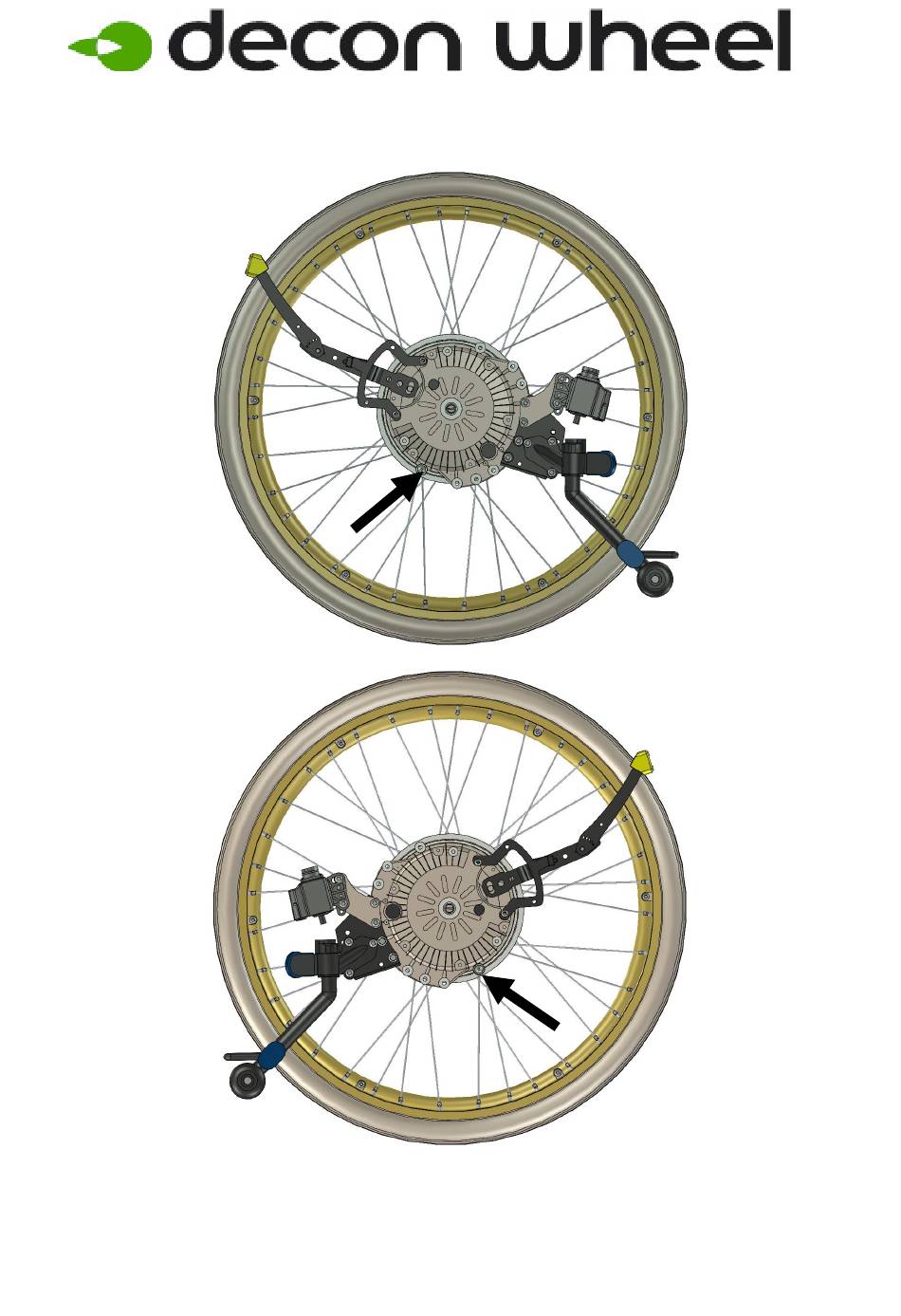

2. Check the correct placement for the stop pin.
2019-09-06

Advertisement

loading
Need help?

Need help?

Do you have a question about the MED3044 and is the answer not in the manual?

Questions and answers

Summary of Contents for Decon wheel MED3044

  • Page 1 Assembly instructions for Rea Spirea 3 med e-Drive MED3044 1. Remove wheel, sleeve and anti-tip device on both sides. 2. Check the correct placement for the stop pin. 2019-09-06...
  • Page 2 3. Assembly the plate (right side) according to picture. Item No. Part Number Description XSM8ML Nut : Self-Locking - M8 XSM8X30 Screw : Socket - M8 x 30 XSM16M Nut M16X1 Low HW069 Hubsleever M16x1/12,7 405239 Nordlock Washer M16 100 400 017 Spacer MED2000 Bracket...
  • Page 3 6. Loose the screws until you are able to place the bracket (MED1500) between, then you assemble them again. MED1201 Item No Part Number Description XSM6TG External Teeth Washer 6,4 X-klamma2 Clamp2 XSM6X16 Screw M6 x 16 XSM6BR Plain Washer 6,4 MED1200 Attendant Control 7.
  • Page 4 MED1356 Item No. Part Number Description MED1317 Bracket MC6SM6X35 Screw M6 x 35 XSM6X16 Screw M6 x 16 XSM6BR Plain Washer M6 XSM6ML Locknut M6 MED1316 Plate with pin XA2-2612K-00 Clamp with thread XA2-2612E-00 Clamp with hole 8. Assemble the attendant control with the joystick unit, see the pictures. 2019-09-06...
