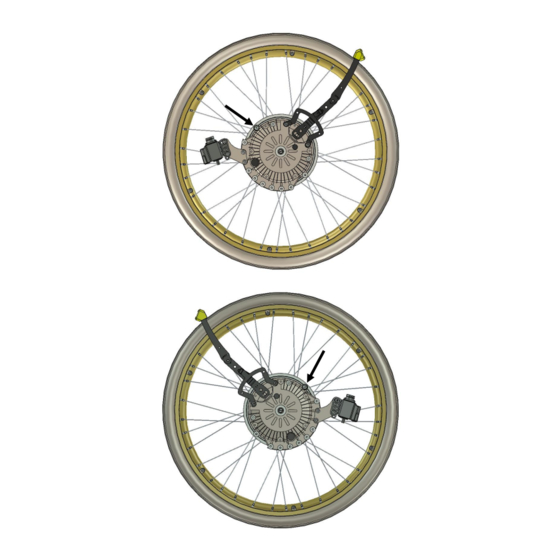

- Page 1 Assembly instructions for Spirea/Spirea 2 MED3043 1. Remove wheels and hub sleeve on both sides. 2. Check the correct placement for the stop pin and that the anti-tip devices and battery box are removed. 2020-11-27...
- Page 2 3. Assembly the plate (right side) according to picture. 4. Parts pair mountingset: Item No. Part Number Description MED2000 Bracket 100 400 017 Spacer 405239 Nordlock Washer HW069 Hubsleever M16x1/12,7 XSM16M Nut M16 XSM16BR Plain Washer M16 100 400 007 Spacer XSM8BR Plain Washer 8,4...
- Page 3 6. Loose the screws until you are able to place the bracket (MED1500) between, then you assemble them again. 2020-11-27...
- Page 4 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Gänga / Thread Åtdragningsmoment / Tightening torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsor. Sleeves. Gänga / Thread Åtdragningsmoment / Tightening torque M16x1 30 Nm M18x1...
