Assembly instructions for Activator
MED3030

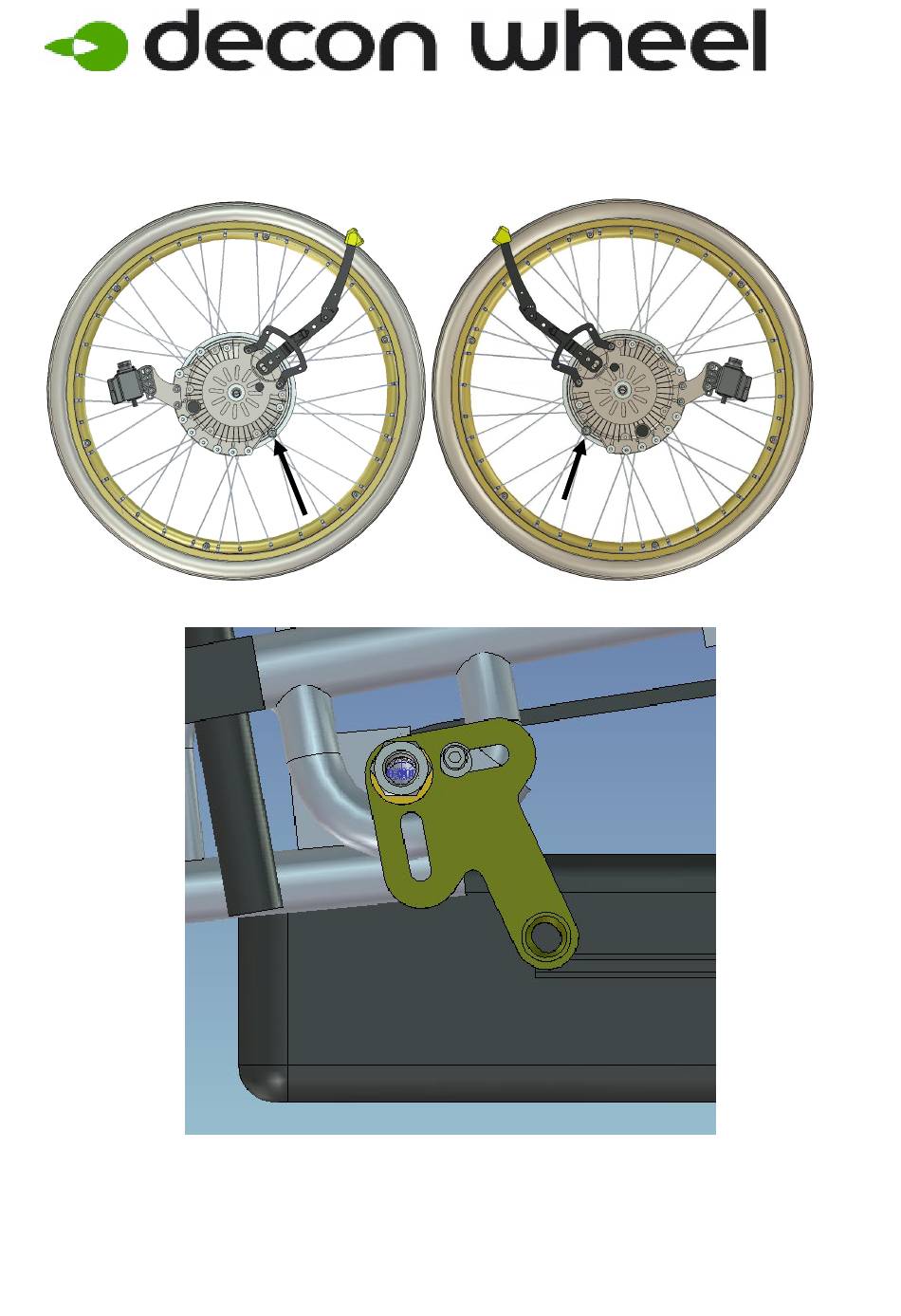

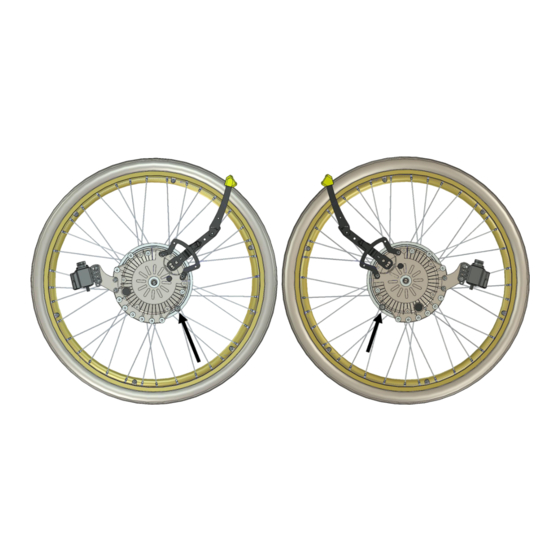

1. Remove wheels on both sides.
2. Check the correct placement for the stop pin, remove battery and anti-tip devices from
the E-drive. Anti-tip devices from the chair are in use.
3. Assemble the plate (right side) according to picture.
2020-10-23
Advertisement
Related Manuals for Decon wheel MED3030
Summary of Contents for Decon wheel MED3030
- Page 1 Assembly instructions for Activator MED3030 1. Remove wheels on both sides. 2. Check the correct placement for the stop pin, remove battery and anti-tip devices from the E-drive. Anti-tip devices from the chair are in use. 3. Assemble the plate (right side) according to picture.
- Page 2 4. Parts pair mounting set: Item No. Part Number Description MED2000 Bracket 100 400 017 Spacer HW069 Hubsleever 405239 Nordlock Washer XKlamma 2 Clamp 22mm di1203 Spacer MC6SM6X45 Screw M6x45 XSM6BR Plain Washer 6,4 XSM6ML Lock Nut M6 100 400 020 Spacer 5.
- Page 3 6. Assemble the control unit. Item No. Part Number Description MED1501 Bracket MED1502 Bracket XSM6X30 Screw M6 X 30 XSM6BR Plain Washer M6 XSM6ML Lock Nut M6 XOC-48160-B0 Upper holder assembly 2 XSM6X12 Screw M6 x 12 2020-10-23...
- Page 4 MED1201 Assembler instructions for Attendant control unit MED1200 1. Before you start, check what typ of clamp you need. 2. Assemble the attendant control unit according to picture. 3. Connect the cable. Parts pair mountingset: Item No. Part Number Description XKlamma1 Clamp Ø25 XKlamma2...
- Page 5 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Gänga / Thread Åtdragningsmoment / Tightening torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsa. Sleeve. Gänga / Thread Åtdragningsmoment / Tightening torque M16x1 30 Nm M18x1...
