Assembly instructions for Minos IRATI ALU
MED3068
1. Remove wheels and sleeves on both sides.

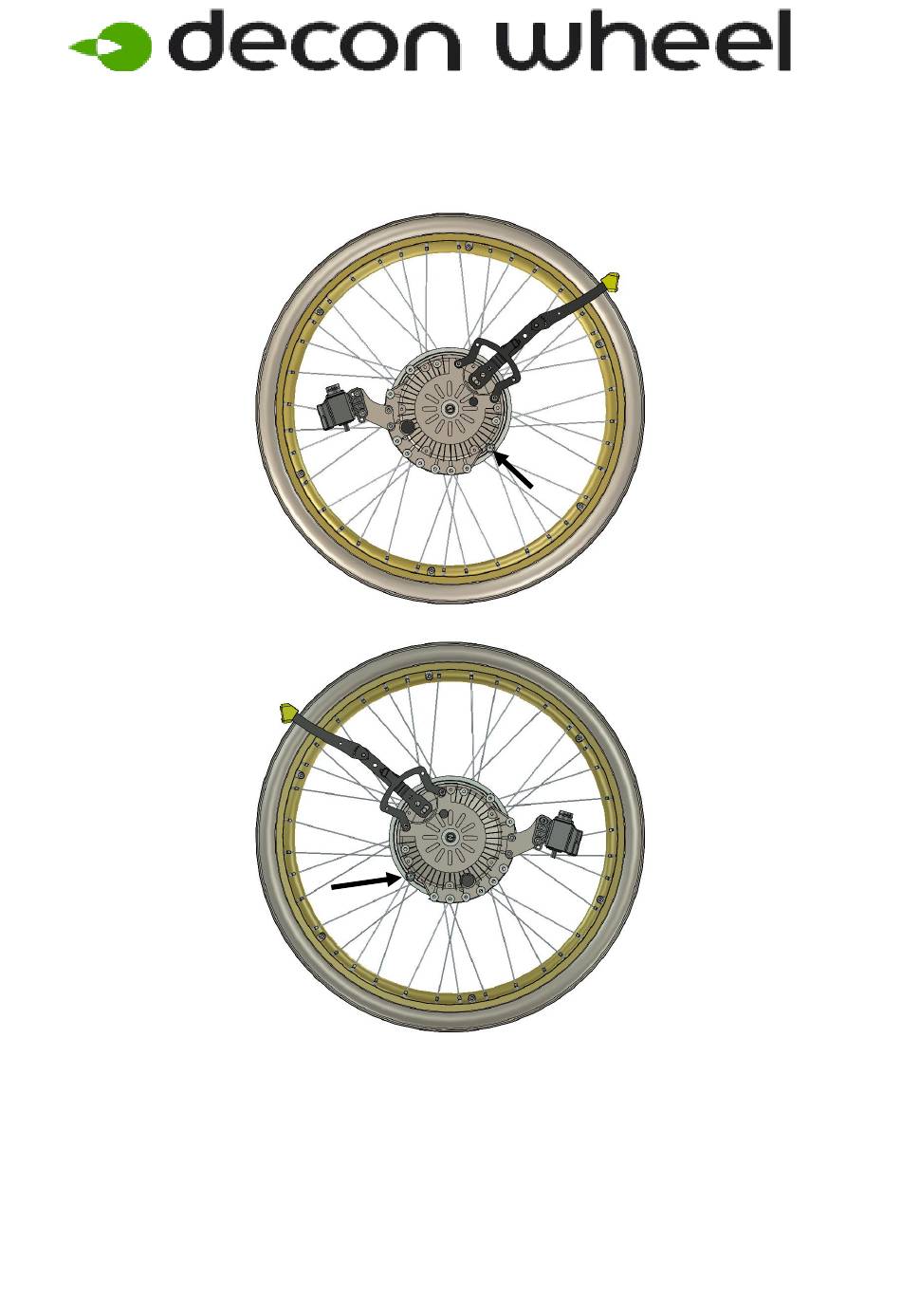

1. Check the correct placement for the stop pin on the E-drive unit and that the
antitip devices and battery box are removed.
4/21/2020

Advertisement

loading
Need help?

Need help?

Do you have a question about the MED3068 and is the answer not in the manual?

Questions and answers

Related Manuals for Decon wheel MED3068

Summary of Contents for Decon wheel MED3068

  • Page 1 Assembly instructions for Minos IRATI ALU MED3068 1. Remove wheels and sleeves on both sides. 1. Check the correct placement for the stop pin on the E-drive unit and that the antitip devices and battery box are removed. 4/21/2020...
  • Page 2 2. Parts pair mountingset: Item No. Part Number Description MED2000 Bracket MEM3117-01 Bracket 405239 Nordlock Washer XSM16FJ Single Coil Washer M16 XSM16M Nut M16 XSM6BR Plain Washer M6 XSM6X20 Screw Round - M6 x 20 XSM6ML Locknut M6 100 400 007 Spacer MC6SM8X60 Screw M8 x 60...
  • Page 3 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Gänga / Thread Åtdragningsmoment / Tightening torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsor. Sleeves. Gänga / Thread Åtdragningsmoment / Tightening torque M16x1 30 Nm M18x1...
