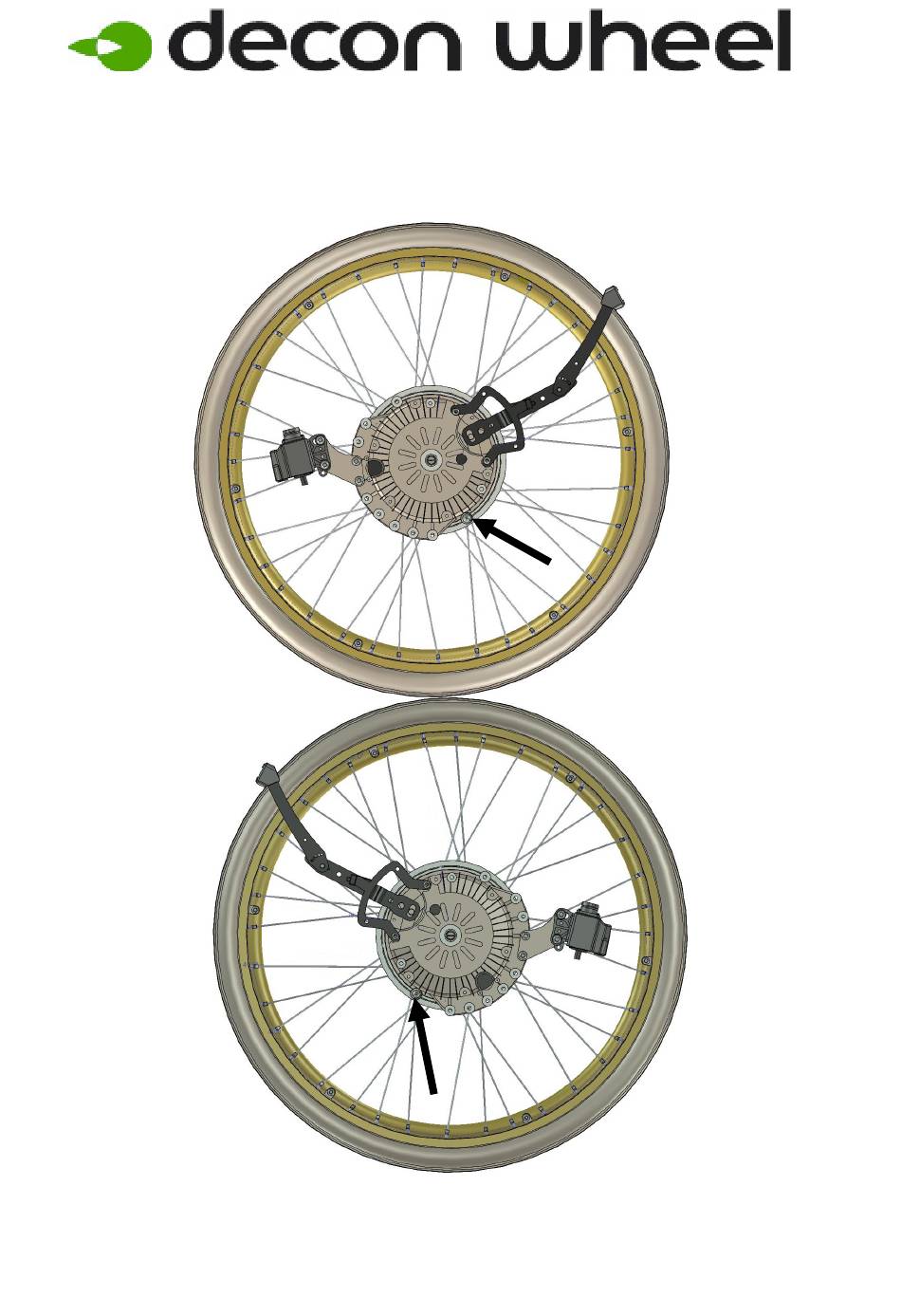

- Page 1 Assembly instructions for Meyra Avanti Pro 1.735, Avanti 1.736, Basic 1.751 MED3052 1. Remove wheels and sleeves on both sides. 2. Check the correct placement for the stop pin and do not use antitip devices on the E-drive unit. 2020-09-01...
- Page 2 3. Assembly the plate (right side) according to picture. 4. Parts pair mountingset: Item No. Part Number Description MED2000 Bracket 100 400 017 Spacer 100 400 007 Spacer HW069 Sleeve M16x1/12,7 XSM16M Nut M16X1 Low XSM8ML Lock Nut M8 XSM8X45 Screw M8 x 45 100 400 005 Spacer...
- Page 3 Joystick assembly on armrest with Code 21/81/84 Item No. Part Number Description MED1500 Rev5 Bracket XOC-48160-B0 Upper holder assembly 2 XSM6BR Washer M6 XSM6ML Lock nut M6 XSM6X16 Screw M6 X 16 Note! MED1300 for the Leftside. 2020-09-01...
- Page 4 Joystick assembly on armrest with Code 107 Item No. Part Number Description MED1590R Bracket Rightside XSM6X16 Screw M6 X 16 XSM6LM Lock nut M6 XOC-48160-B0 Swing Away Bracket Note! MED1590L for the Leftside. 2020-09-01...
- Page 5 MED1201 ITEM PART NUMBER DESCRIPTION XSM6TG External Teeth Washer 6,4 X-klamma2 Clamp2 XSM6X16 Screw M6 x 16 XSM6BR Plain Washer 6,4 MED1200 Attendant Control 5. Assemble the attendant control. 2020-09-01...
- Page 6 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Åtdragningsmoment / Tightening Gänga / Thread torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsor. Sleeves. Åtdragningsmoment / Tightening Gänga / Thread torque M16x1 30 Nm...
