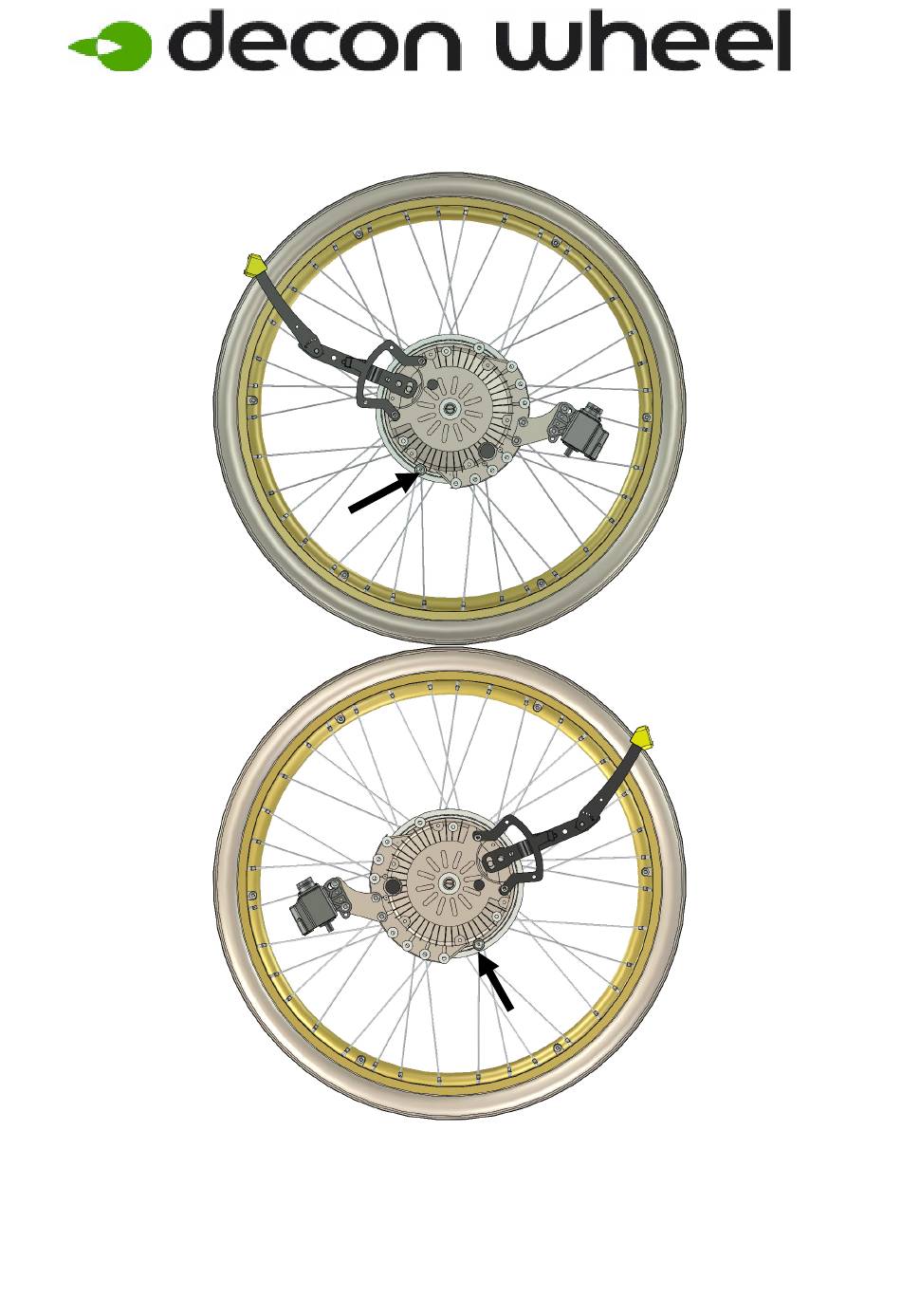

- Page 1 Assembly instructions for Roxx NO MED3070 1. Remove wheels on both sides. 2. Check the correct placement for the stop pin. Check that antitip devices are removed on the E-Drive. Use the antitip devices on the chair. 2020-06-23...
- Page 2 3. Assembly the plate (right side) according to picture. 4. Parts pair mountingset: Item No. Part Number Description MED2000 Bracket XSM8X30 Screw M8 x 30 XSM8ML Lock nut M8 100 400 017 Spacer HW069 Hubsleever E-Move XSM16M Nut M16X1 Low 405239 Nordlock Washer XSM16FJ...
-
Page 3: Joystick Control
Joystick Control Item No. Part Number Description MED3070-01 Rev2 Bracket MC6SM5X16 Screw Socket M5 x 16 MC6SM5X20 Screw Socket M5 x 20 XOC-48160-B0 Upper holder assembly 2 XOC-48110-A0 Remote Control Assembly 2020-06-23... -
Page 4: Attendant Control
Attendant Control MED1250 Item No. Part Number Description XSM6X30 Screw Round M6 x 30 XSM6ML Nut Self-Locking M6 MCG1151-18 Handle Bracket 3 XSM6BRTG Thorn Washer M6 2020-06-23... - Page 5 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Gänga / Thread Åtdragningsmoment / Tightening torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsor. Sleeves. Gänga / Thread Åtdragningsmoment / Tightening torque M16x1 30 Nm M18x1...
