Decon wheel MED3007 Assembly Instructions

Etac cross/ twin
Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

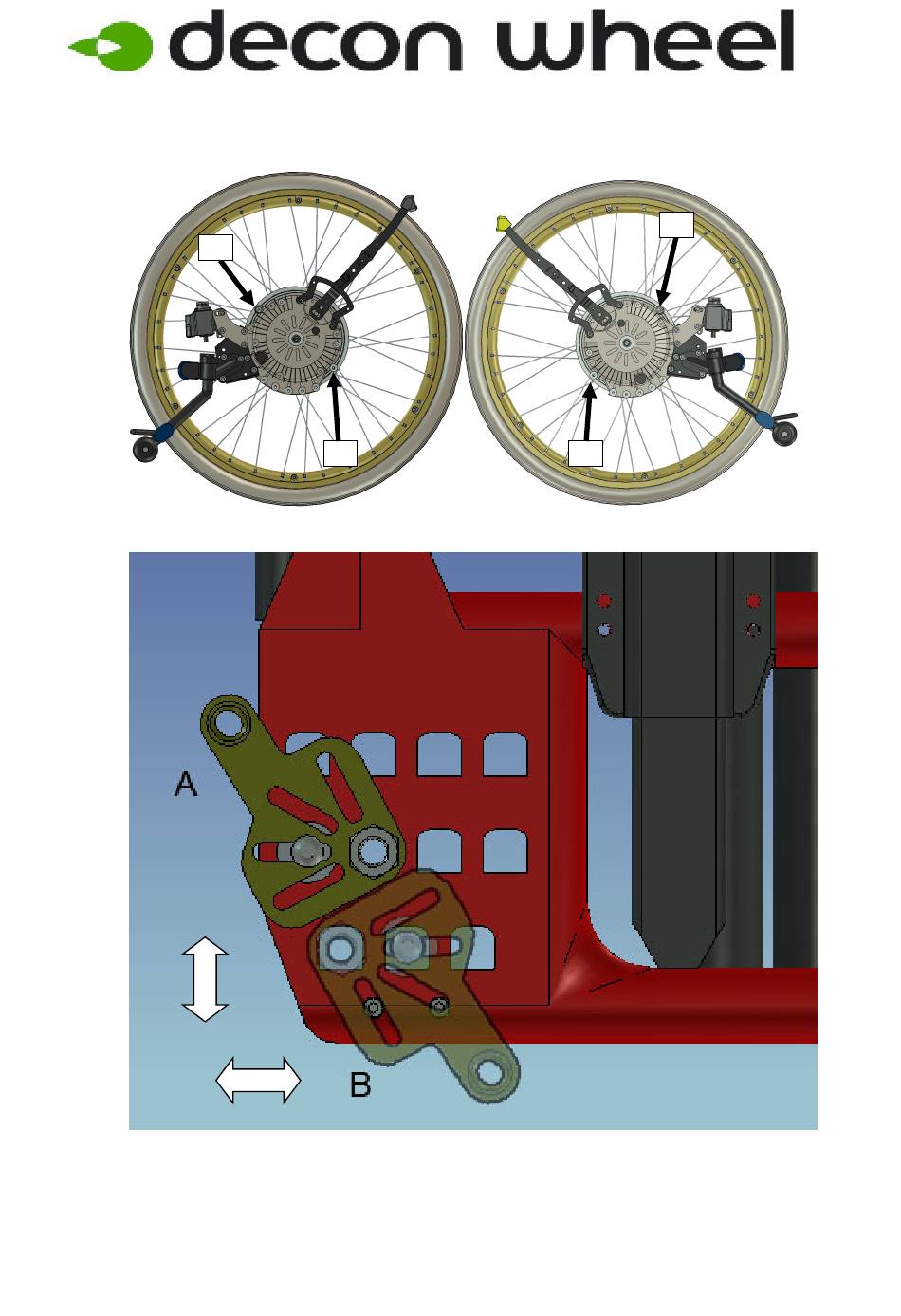

Assembly instructions for Etac Cross/ Twin

1. Remove wheels and anti-tip devices on both sides.
A
2. Check the correct placement for the stop pin, see placement for the bracket. See
picture bellow.
3. Assembly the E-drive bracket (right side) according to picture, here you can see two
placement opportunities.
MED3007
B
A
B
2022-03-18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MED3007 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Decon wheel MED3007

Summary of Contents for Decon wheel MED3007

  • Page 1 Assembly instructions for Etac Cross/ Twin MED3007 1. Remove wheels and anti-tip devices on both sides. 2. Check the correct placement for the stop pin, see placement for the bracket. See picture bellow. 3. Assembly the E-drive bracket (right side) according to picture, here you can see two placement opportunities.
  • Page 2 4. Parts pair mounting set: Item No. Part Number Description HW069 Hubsleever BR1100-03 Spacer MED 2004 Bracket 100 400 017 Spacer 280008 Spacer XSM8X40 Screw M8 x 40 Rounded head XSM8ML Locknut M8 XSM16M Nut M16 405239 Nordlock Washer XSM8BR Plain Washer M8 Item No.
  • Page 3 MED1348 or MED1348L Assembly instructions for Joystick on armrest Tightening torque 6Nm. Details included in MED1348/MED1348L Item No Part number Description XOC-48160-B0 Upper bracket complete XSM6X30 Screw M6 x 30 XSM6BR Flat washer M6 XSM6ML Lock nut M6 XSM6X16 Screw M6 x 16 MED1547 Bracket MED1501 Rev6...
  • Page 4 MED1356 Attendant control with Joystick controller Item No. Part Number Description MED1317 Bracket XSM6X35 Screw M6 x 35 XSM6X16 Screw M6 x 16 XSM6BR Plain Washer M6 XSM6ML Locknut M6 MED1316 Plate with pin XA2-2612K-00 Clamp with thread XA2-2612E-00 Clamp with hole 6.
  • Page 5 Alternate attendant control (Only on Right side) Item No. Part Number Description XSM6TG Washer Xklamma2 Clamp XSM6X20 Screw M6 x 20 XSM6BR Plain Washer 6,4 MED1200 Attendant control 7. For the attendant control unit, you need these parts.   2022-03-18...
