Page 1

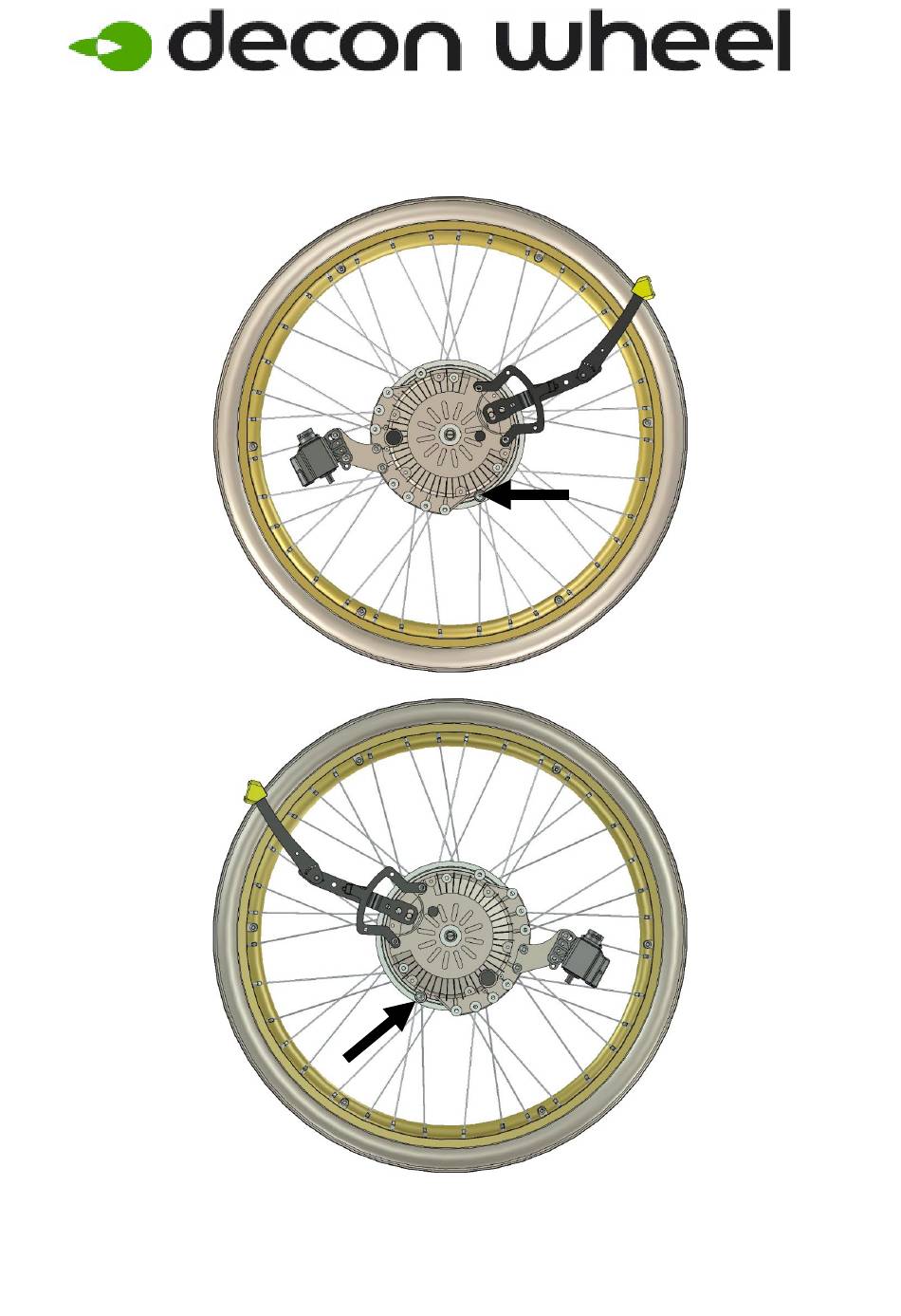

Assembly instructions for HD 24” Balance with e-drive MED3073 1. Remove wheels on both sides. 2. Check the correct placement for the stop pin, and check that the antitip devices are removed. Use the wheelchair original antitip devices. 2022-09-09 1(10)
Page 2
3. Assembly the plate (right side) according to picture. 4. Parts pair mountingset: Item No Part Number Description MED3072-02 Hubsleever house Rightside XSM8X55 Screw M8 x 55 XSM8X50 Screw M8 x 50 HW069 Hubsleever M16x1/12,7 405239 Nordlock washer MED2000 Bracket 100 400 017 Spacer 100 400 002...
Page 3
MED1356 Attendant control with Joystick controller Item No. Part Number Description MED1317 Bracket XSM6X35 Screw M6 x 35 XSM6X16 Screw M6 x 16 XSM6BR Plain Washer M6 XSM6ML Locknut M6 MED1316 Plate with pin XA2-2612K-00 Clamp with thread XA2-2612E-00 Clamp with hole 7.
Page 4
MED1226 Attendant control with attendant controller (only right side) For the attendant control unit, you need these parts. Item No Part Number Description XSM6BRTG Torn washer X-Klamma2 Clamp 22 mm XSM6X20 Screw M6 x 20 XSM6BR Plain Washer MED1200 Assist control 2022-09-09 4(10)
Page 5
MED1643 The attendant control is also possible to mount on the left side. For this you need MED1643 which is ordered separately. Use either a bolt with position 4 or 5 depending on which clamp is mounted on the chair's handle tube. The shorter one fits the sheet metal clip and the threaded aluminum clip, the longer aluminum clip without threads.
Joystick Assembly MED1419 8. Assembler the joystick control unit on any side, and you need these parts. Remove the cover. Assemble as the picture on top, but do not tighten item No.7. Item No Part Number Description MED1500 Bracket XSM6X16 Screw - Round - M6 x 16 XSM6BR Plain Washer M6...
Page 7
Bring the bracket forward to desirable placement and tighten the screws No7. Assemble the cover and the front bracket with screws No 2, washers No 3 and locknuts No 4. Mounting set for Left side: MED1418 Mounting of Joystick with parallel arm MED1645 Now mount the joystick right or left side, see pictures below for mounting on the right side.
Page 8
3. Now mount the parallel arm and joystick as shown. Adjust the position of the joystick to the desired position. 4. Tighten all screws and verify function. Item No. Part number Description X0F-48160-D00 Upper bracker paralell XSM6X16 Screw rounded M6 x 16 XSM6BR Plain washer M6 XSM6ML...
Brake Assembly MED1452 9. Extension part for brake pin Item No. Part Number Description 100 400 044 Spacer XSM6X30 Screw M6 x30 rounded Remember that the wheelchair's total width increases by 20 mm. 2022-09-09 9(10)
Page 10
Om inget annat specificeras, använd följande åtdragningsmoment. Unless otherwise specified, use the following tightening torque. Metriska grovgängor, stål. Metric coarse threads, steel. Gänga / Thread Åtdragningsmoment / Tightening torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsor.
