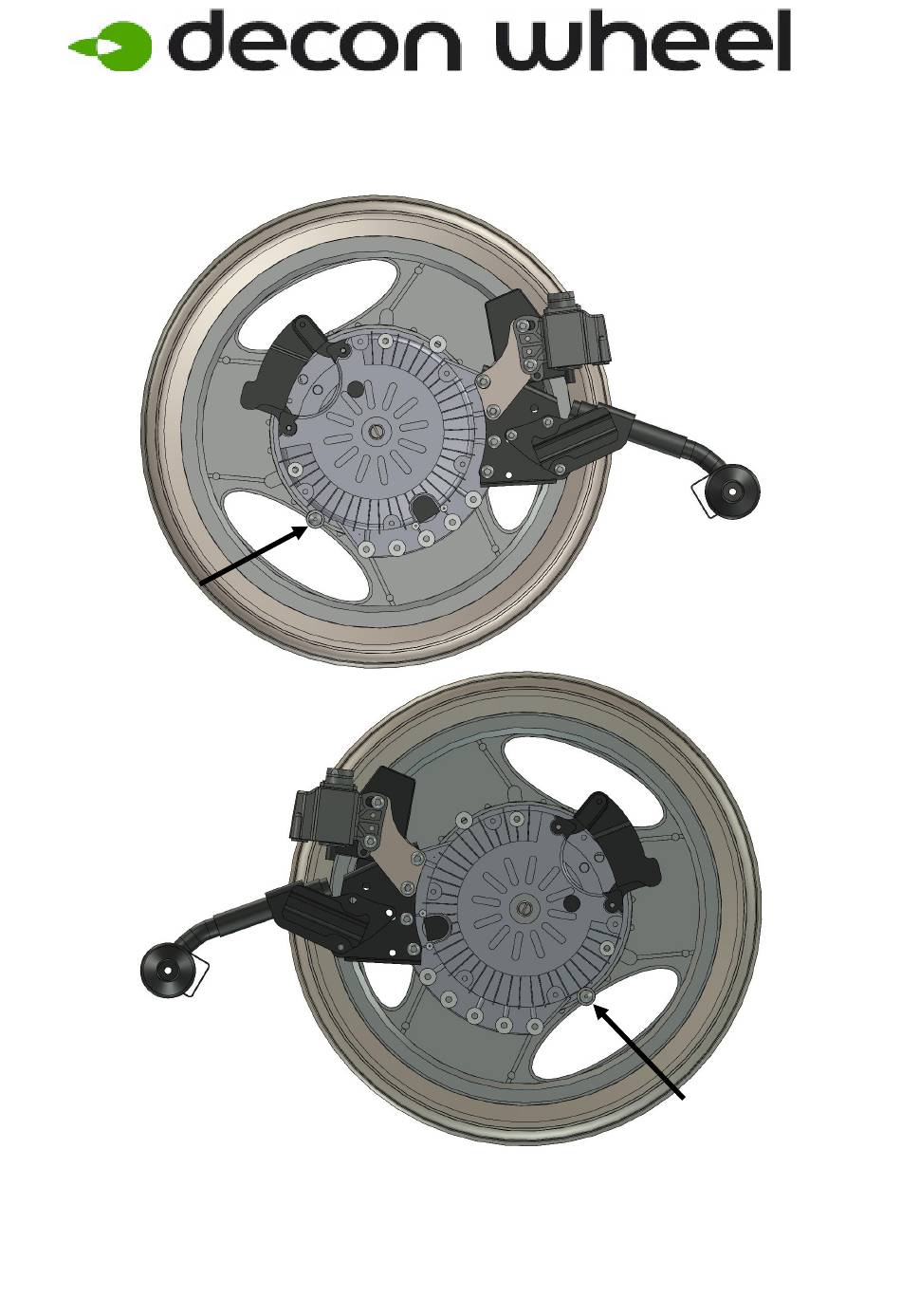

- Page 1 Assembly instructions for Rea Assist (705) MED3054 1. Remove wheels on both sides. 2. Check the correct placement for the stop pin. 2019-07-08...
- Page 2 Screw M6 x 45 MC6SM6X50 Screw M6 x 50 405239 Nordlock Washer HW069 Hubsleever M16x1/12,7 XSM16FJ Single Coil Washer M16 XSM16M Nut M16 low model 100 500 026 Clamp 26 mm MED3054-03 Bracket 6. Assemble the under placed battery bag. 2019-07-08...
- Page 3 Assembler the Joystick MED1300 7. Loose the screws until you are able to place the bracket (MED1300) between, then you assemble them again. 2019-07-08...
- Page 4 Attendant control with joystick (left and right side) Move this too the other side, if you assemble the joystick on the left side. Item No. Part Number Description XOC-48110-A1 Joystick MED1316 Plate with pin XSM6X16 Screw M6 x 16 MC6SM6X35 Screw M6 x 35 XSM6BR Plain Washer 6,4...
- Page 5 Alternative attendant control (only right side) Item No. Part Number Description XSM6TG Thorn Washer 6,4 Xklamma2 XClamp2 MC6SM6X20 Screw M6 x 20 XSM6BR Plain Washer 6,4 MED1200 Attendant control 2019-07-08...
