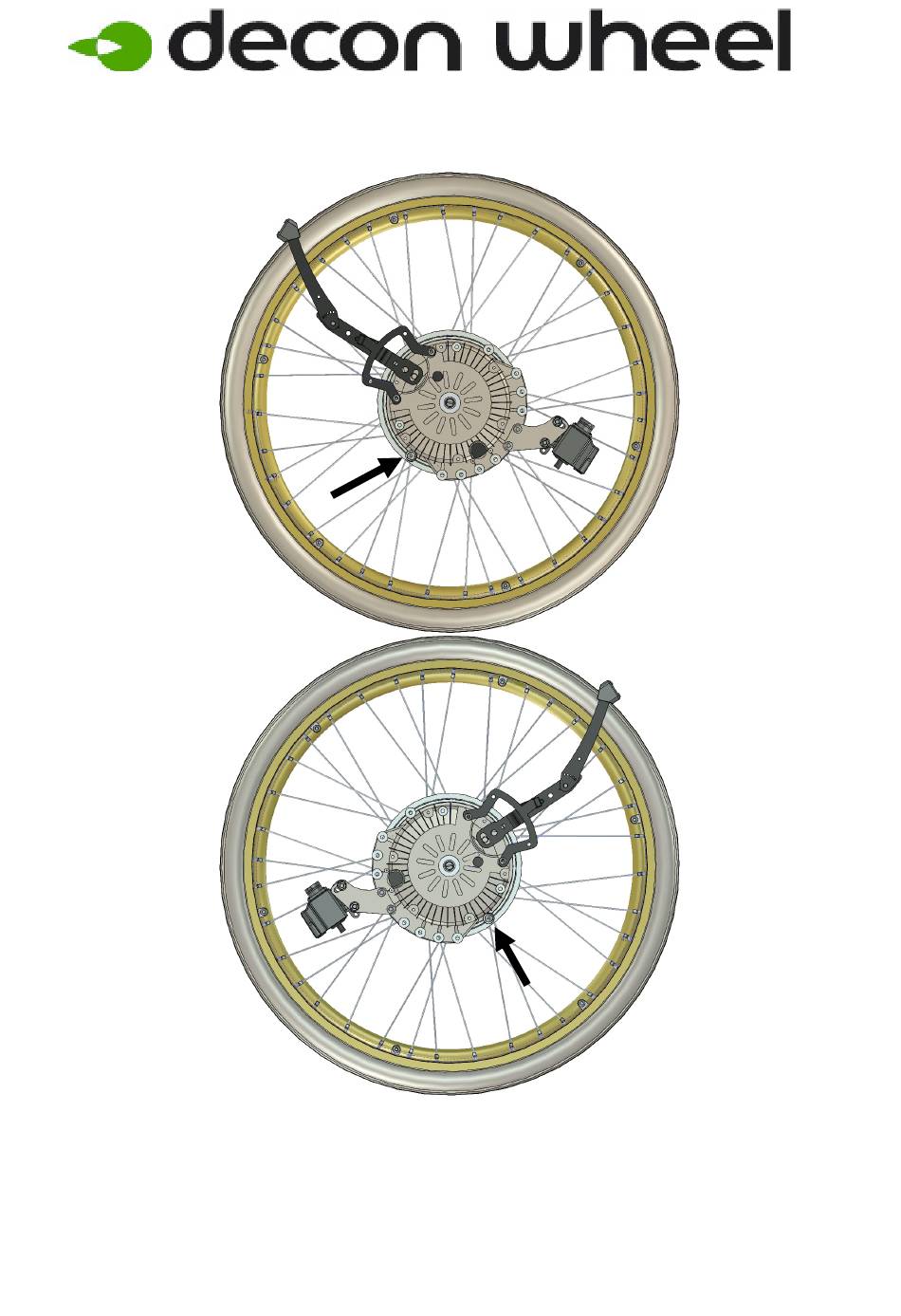

- Page 1 Assembly instructions for Roxx2 MED3070 1. Remove wheels on both sides. 2. Check the correct placement for the stop pin. Check that antitip devices are removed on the E-Drive. Use the antitip devices on the chair. 2019-07-03...
- Page 2 3. Assembly the plate (right side) according to picture. 4. Parts pair mountingset: Item No. Part Number Description MED2000 Bracket XSM8X30 Screw M8 x 30 XSM8ML Lock nut M8 100 400 017 Spacer HW069 Hubsleever E-Move XSM16M Nut M16X1 Low 405239 Nordlock Washer XSM16FJ...
- Page 3 Item No. Part Number Description MED3070-01 Rev2 Bracket MC6SM5X16 Screw Socket M5 x 16 MC6SM5X20 Screw Socket M5 x 20 XOC-48160-B0 Upper holder assembly 2 XOC-48110-A0 Remote Control Assembly 2019-07-03...
- Page 4 Attendant Control MED1253 Item No. Part Number Description MCG1151-18 Handle Bracket 3 XSM6ML Nut Self-Locking M6 XSM6BRTG Thorn Washer M6 XSM6X30 Screw Round M6 x 30 MED1200 Attendant Control 2019-07-03...
