- Page 1 Operating Instructions RETOMIX MINI REITEL Feinwerktechnik GmbH Senfdamm 20 | 49152 Bad Essen Phone: +49(0)5472-9432-0 | Fax: +49(0)5472-9432-40 www.reitel.com | info@reitel.com...

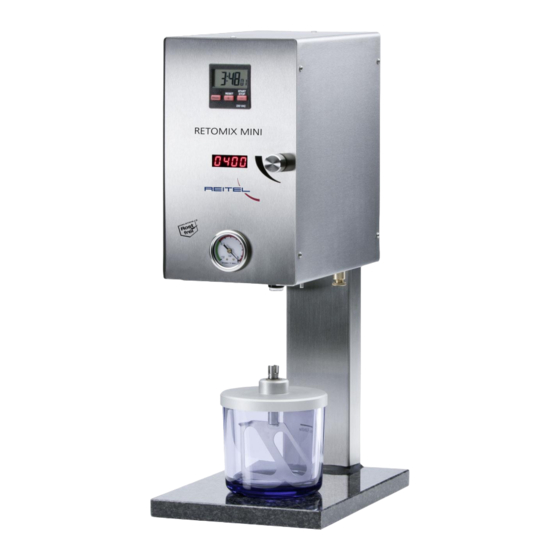

- Page 2 Dear Customer! The RETOMIX MINI is a compact design vacuum mixer perfectly suitable for mixing plaster, investment material and alginates, equipped with a powerful and durable vacuum pump. The electronic timer ensures mixing process control per second. Variable speed control enables precise mixing speed according to manufacturer’s recommendations.
-
Page 3: Table Of Contents
INDEX TECHNICAL DESCRIPTION ..................4 ....................... 4 ASIC QUIPMENT ....................4 PECIAL CCESSORIES ....................4 PERATING LEMENTS ......................6 ECHNICAL SAFETY NOTES ......................7 .................... 7 ENERAL AFETY OTES ................. 8 PECIFIC AFETY NSTRUCTIONS INSTALLATION ......................8 ......................8 NSTALLATION ................. -
Page 4: Technical Description
Technical Description Basic Equipment • RETOMIX MINI Vacuum mixer • 1 Mixing bowl 400 ml • Power cord Special Accessories • Order-No. 23701000 Bench-top stand • Order-No. 21302100 Mixing bowl 75 ml • Order-No. 21302000 Mixing bowl 150 ml •... - Page 5 Fig.: Timer Fig.: Device view...
-
Page 6: Technical Data
Technical Data Line voltage 230 V/50-60 Hz Current consumption 420 W Height/width/depth 290/155/285 mm Height/width/depth incl. stand 710/220/360 mm Weight 8 kg/15 kg (incl. stand) Speed var.from 370 to 630 rpm Vacuum approx. 93 % Timer electronic Housing stainless steel Made in Germany (Subject to modifications) -
Page 7: Safety Notes
Safety Notes General Safety Notes • All equipment undergoes final inspection and testing before leaving our factory. However, if equipment is damaged during shipping or through any other circumstances, it must not be used in service. Please check the device regularly for damages. Damaged parts should be replaced immediately. -
Page 8: Specific Safety Instructions
Insert the attached power cord into the power outlet (6) of the device. Put the power plug of the RETOMIX MINI into a socket. Now the device is ready for use. During long periods of non-use disconnect the device from mains supply. -
Page 9: Operation
Operation Mixing with vacuum Use timer (1) to set mixing time. Programming: Press key PROG. − Press once – hours − Press twice – minutes − Press three times – seconds − Use + and – to change settings for hours/minutes/seconds. Pressing again PROGR, settings are stored. -
Page 10: Mixing With Reduced Vacuum
Mixing with reduced vacuum Use timer (1) to set mixing time. Programming: Press key PROG. − Press once - hours − Press twice – minutes − Press three times - seconds − Use + and – to change settings for hours/minutes/seconds. Pushing again PROG-key, settings are stored. -
Page 11: Mixing Bowl For Alginates (Special Accessories)
Mixing bowl for alginates (special accessories) In order to prevent power residues from falling from the edge of the bowl into the mixed alginate, first of all water and power should be premixed without vacuum. Put power and water into the bowl, mixing it with reduced vacuum (Procedure see chapter 4.2.) Mixing time is dependent on used material (see manufacturer’s indications). -
Page 12: Maintenance
• Regularly replace the filter at the bowl support (7). • Regularly clean the housing with a damp cloth and REITEL Stainless steel care spray. Note Clean and protect your device at regular intervals with the REITEL stainless steel care spray (order -no.: 90405000) to remove lime, plaster and dust as well as other... -
Page 13: Warranty
Warranty We, REITEL Feinwerktechnik GmbH, offer a 1 year’s warranty beginning from the proven date of purchase. This warranty covers all defects traceable to materials, design or workmanship. The following warranty regulations are applicable: Within the warranty period Reitel Feinwerktechnik GmbH or an authorized distributor agrees at its sole option, to perform repair or replace this product at no charge covering all defects traceable to materials, design or workmanship. - Page 14 REITEL Feinwerktechnik GmbH; − The warranty does not cover the cost of removal and replacement of parts and accessories, unless supplied as original equipment by REITEL Feinwerktechnik GmbH − All kind of damages occurred not directly at the device as well as consequential damages (e.g.
- Page 15 Should you need to borrow a device while your device is being repaired, please contact Messrs. REITEL or your distributor. These loans are a service for which availability cannot necessarily be guaranteed. After the warranty period, a free may be charged for loan...
-
Page 16: Disposal Regulation
Disposal Regulation According to valid laws our devices are disposed of according to B2B – regulations for proper disposal. Pls. contact your local dealer for additonal information. -
Page 17: Spare Parts List
Spare Parts List Retomix Mini Stck Best.Nr. Ersatzteilliste / Spare parts list Qty. Unit neu 2018 Deckel mit Rührwerk für 150mL-Becher Stck E7010400 Lid with mixer for 150 ml bowl piece Deckel mit Rührwerk für 400mL-Becher Stck E7010500 Lid with mixer for 400 ml bowl piece Deckel mit Rührwerk für 600mL-Becher... -
Page 18: Wall Mounting
Wall Mounting This is no drill template! This is not printed in a 1:1 ratio! -
Page 19: Eu Directive
EU DIRECTIVE... - Page 20 We manufacture in compliance with Quality Management ISO 13485:2016 incorporating established standards. REITEL Feinwerktechnik GmbH Senfdamm 20 | 49152 Bad Essen Phone: +49(0)5472-9432-0 | Fax: +49(0)5472-9432-40 www.reitel.com | info@reitel.com...
