- Page 1 Operating Instructions ROTOGRIND NT REITEL Feinwerktechnik GmbH Senfdamm 20 | 49152 Bad Essen Phone: +49(0)5472-9432-0 | Fax: +49(0)5472-9432-40 www.reitel.com | info@reitel.com...

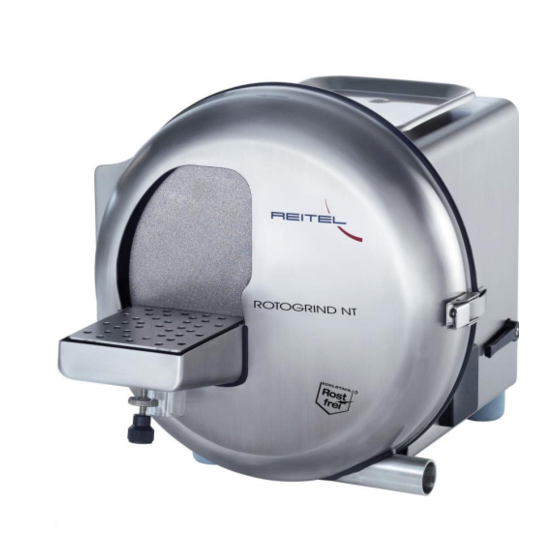

- Page 2 The front cover can easily be removed by a special quick release for convenient cleaning, fulfilling hygienic standards. For safety reasons, the ROTOGRIND NT is equipped with a quick stop and restart protection. The large grinding disc opening offers convenient access to the selected diamond or corundum grinding disc. The laser-engraved angle markings on the tray table provide perfect model alignment with variable angle adjustment and locking positions.
-
Page 3: Table Of Contents
INDEX TECHNICAL DESCRIPTION ..................4 ....................... 4 ASIC QUIPMENT ....................4 PECIAL CCESSORIES ....................5 EVICE COMPONENTS ......................8 ECHNICAL SAFETY NOTES ......................9 .................... 9 ENERAL AFETY OTES ....................10 PECIFIC AFETY OTES INSTALLATION ......................11 ......................11 NSTALLATION ..................11 HANGING A GRINDING DISC OPERATION ........................12 ................12 HRONOLOGICAL RUN OF OPERATION... -
Page 4: Technical Description
Technical Description Basic Equipment • Wet- / dry trimmer ROTOGRIND NT • Inlet hose, 150 cm • Drain hose, 80 cm • Allen® key, size 6 • Allen® key, size 2 Special Accessories • Order-No.: 20306000 LED working lamp •... -
Page 5: Device Components
Device components Front cover Grinding disc Tray table Adjusting spindle for tray table Extraction hose for dry trimming Quick release (secured with Allen® screw before first use) Drain hose for wet trimming Appliance outlet for extraction Power supply 10 Power switch 11 Ball valve with black handle to regulate the amount of water 12 Switch for dry or wet trimming 13 Overload protection... - Page 6 Fig.: Front view Fig.: Lateral view Fig.: Lateral view...
- Page 7 Fig.: Grinding disc Fig.: Rear view...
-
Page 8: Technical Data
Technical Data Line voltage 230 V/50-60 Hz Current consumption 1.500 W Height / Width / Depth 350/350/470 mm Base of the unit (W/D) 200/250 mm Weight 22 kg Speed 3.000 rpm Grinding disc diameter 250 mm ≤ 70 dB(A) Sound level Housing Stainless steel Made in Germany (Subject to modifications) -
Page 9: Safety Notes
Safety Notes General Safety Notes • All equipment undergoes final inspection and testing before leaving our factory. However, if equipment is damaged during shipping or through any other circumstances, it must not be used in service. Please check the device regularly for damages. Damaged parts should be replaced immediately. -
Page 10: Specific Safety Notes
(6). • Only use the ROTOGRIND NT with grinding discs, Ø 250 mm with exception of the orthodontic front cover, which is used with a grinding disc, Ø 280 mm. Smaller discs are not permitted since they increase the risk of injury •... -
Page 11: Installation
Installation The electrical equipment is ready for immediate use. The sealed plug can be connected directly to the mains supply 230 V/16 A. For installation please refer to safety notes in chapter 2. Installation 1. Connect the supplied hose to the water inlet connector (19) and fasten the hose clamp included in delivery. -
Page 12: Operation
Operation Chronological run of operation 1. Use the switch (12) to select the required grinding mode (12): − dry trimming (switch position "cloud") − wet trimming (switch position "water tap") 2. Adjust the inclination angle of the tray table (3) with the adjusting spindle (4). Secure it with the lock nut. -
Page 13: Troubleshooting
Troubleshooting a. Power failure → Check fuses in the Device doesn’t turn on. building. Switch the device on again. b. Check safety switch by opening and closing the front (Switching operation is triggered by the pin at the housing). Low abrasion a. -
Page 14: Maintenance
Clean the front and inner grinding area once a week (see chapter 4.2 cleaning). Note Clean and protect your device at regular intervals with the REITEL stainless steel care spray (order -no.: 90405000) to remove lime, plaster and dust as well as other contaminants from the surface of the equipment and to prevent corrosion. -
Page 15: Warranty
Warranty We, REITEL Feinwerktechnik GmbH, offer a 1 year’s warranty beginning from the proven date of purchase. This warranty covers all defects traceable to materials, design or workmanship. The following warranty regulations are applicable: Within the warranty period Reitel Feinwerktechnik GmbH or an authorized distributor agrees at its sole option, to perform repair or replace this product at no charge covering all defects traceable to materials, design or workmanship. - Page 16 REITEL Feinwerktechnik GmH; − The warranty does not cover the cost of removal and replacement of parts and accessories, unless supplied as original equipment by REITEL Feinwerktechnik GmbH − All kind of damages occurred not directly at the device as well as consequential damages (e.g.
- Page 17 Should you need to borrow a device while your device is being repaired, please contact Messrs. REITEL or your distributor. These loans are a service for which availability cannot necessarily be guaranteed. After the warranty period, a free may be charged for loan...
-
Page 18: Disposal Regulations
Disposal Regulations According to valid laws our devices are properly disposed of according to B2B – Regulations for proper disposal. Pls. contact your local dealer for additional information. Spare Parts List Stck/ Best.Nr. Rotogrind (VA) (22.1 + 22.2) neu 2018 Ersatzteilliste/Spare Parts List 03/2019 Unit Qty. -
Page 19: Eu Directive
EU DIRECTIVE... - Page 20 We manufacture in compliance with Quality Management ISO 13485:2016 incorporating established standards. REITEL Feinwerktechnik GmbH Senfdamm 20 | 49152 Bad Essen Phone: +49(0)5472-9432-0 | Fax: +49(0)5472-9432-40 www.reitel.com | info@reitel.com...
