REITEL ROTOGRIND NT Operating Instructions Manual
In stainless steel
Hide thumbs
Also See for ROTOGRIND NT:
- Operating instructions manual (10 pages) ,
- Operating instructions manual (20 pages)
Related Manuals for REITEL ROTOGRIND NT
Summary of Contents for REITEL ROTOGRIND NT
- Page 1 Operating Instructions ROTOGRIND NT REITEL Feinwerktechnik GmbH Senfdamm 20 | 49152 Bad Essen Phone: +49(0)5472-9432-0 | Fax: +49(0)5472-9432-40 www.reitel.com | info@reitel.com...
- Page 2 Simple cleaning is ensured by the shape of the housing and by the front change system. For safety reasons, the ROTOGRIND NT is equipped with a disk quick stop and restart protection. The large machining window gives you full access to your selected diamond or corundum grinding disc.
-
Page 3: Table Of Contents
INDEX TECHNICAL DESCRIPTION ..................4 ....................... 4 ASIC QUIPMENT ....................4 PECIAL CCESSORIES ....................5 EVICE COMPONENTS ......................8 ECHNICAL SAFETY NOTES ......................9 .................... 9 ENERAL AFETY OTES ....................10 PECIFIC AFETY OTES INSTALLATION ......................11 ......................11 NSTALLATION ..................11 HANGING A GRINDING DISC OPERATION ........................12 ................12 HRONOLOGICAL RUN OF OPERATION... -
Page 4: Technical Description
Technical Description Basic Equipment • Wet- / dry trimmer ROTOGRIND NT • Inlet hose, 150 cm • Drain hose, 80 cm • Allen® key, size 6 • Allen® key, size 2 Special Accessories • Order-No.: 20306000 LED-working lamp • Order-No.: 20308000 Laser guide for model alignment •... -
Page 5: Device Components

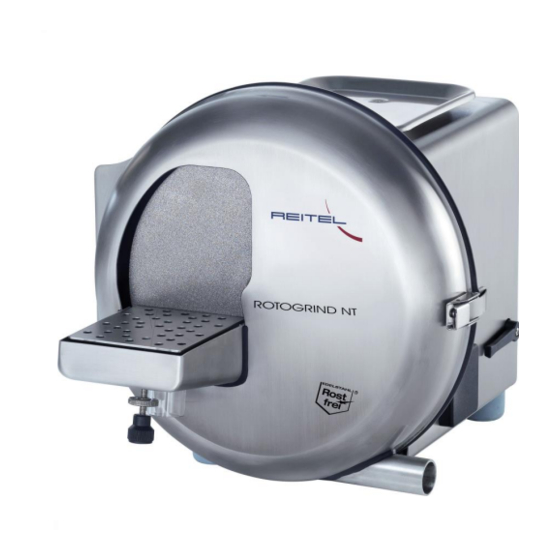

Device components Front Grinding disc Tray table Adjusting spindle for tray table Extraction hose for dry trimming Quick release (secured with Allen® screw before first use) Drain hose for wet trimming Appliance outlet for extraction Power supply 10 Main switch 11 Ball valve with black handle to regulate the amount of water 12 Switch for dry or wet trimming 13 Overload protection... - Page 6 Fig.: Front view Fig.: Lateral view Fig.: Lateral view...
- Page 7 Fig.: Grinding disc Fig.: Rear view...
-
Page 8: Technical Data
Technical Data Line voltage 230 V/50-60 Hz Current consumption 1.500 W Height / Width / Depth 350/350/470 mm Floor area (W/D) 200/250 mm Weight 22 kg Speed 3.000 rpm Grinding disc diameter 250 mm ≤ 70 dB(A) Sound level Housing Stainless steel Order-No.: 10301000... -
Page 9: Safety Notes
Safety Notes General Safety Notes • All equipment undergoes final inspection and testing before leaving our factory. However, if equipment is damaged during shipping or through any other circumstances, it must not be used in service. Please check the device regularly for damages. Damaged parts should be replaced immediately. -
Page 10: Specific Safety Notes
(6). • Only use the ROTOGRIND NT with grinding discs, Ø 250 mm. The exception is the orthodontic front, which is used with a grinding disc, Ø 280 mm. Smaller discs are not allowed and increase the risk of injury •... -
Page 11: Installation
Installation The electrical equipment is ready for immediate use. The sealed plug can be connected directly to the mains supply 230 V/16 A. For installation please refer to safety notes in chapter 2. Installation 1. Attach supplied hose to water inlet (19) fastening it with the hose clamp included in delivery. -
Page 12: Operation
Operation Chronological run of operation 1. Select the type of grinding with the switch (12): − dry grinding (switch position "cloud") − wet grinding (switch position "water tap") 2. Adjust the inclination angle of the tray table (3) with the support adjustment screw (4). Secure with the locknut. -
Page 13: Troubleshooting
Troubleshooting a. Power failure → Check fuses in the Device doesn’t turn on. building. Switch the device on again. b. Check safety switch by opening and closing the front (pin on housing initiates switching operation). Abrasive power diminishes. a. Replace worn or defective grinding discs. -
Page 14: Maintenance
Clean the front and inner grinding area once a week (see chapter 4.2 cleaning). Note Clean and protect your device at regular intervals with the REITEL stainless steel care spray (order -no.: 90405000) to remove lime, plaster and dust as well as other contaminants from the surface of the equipment and to prevent corrosion. -
Page 15: Warranty
Warranty We, REITEL Feinwerktechnik GmbH, offer a 1 year’s warranty beginning from the proven date of purchase. This warranty covers all defects traceable to materials, design or workmanship. The following warranty regulations are applicable: Within the warranty period Reitel Feinwerktechnik GmbH or an authorized distributor agrees at its sole option, to perform repair or replace this product at no charge covering all defects traceable to materials, design or workmanship. - Page 16 REITEL Feinwerktechnik GmH; − The warranty does not cover the cost of removal and replacement of parts and accessories, unless supplied as original equipment by REITEL Feinwerktechnik GmbH − All kind of damages occurred not directly at the device as well as consequential damages (e.g.
- Page 17 Should you need to borrow a device while your device is being repaired, please contact Messrs. REITEL or your distributor. These loans are a service for which availability cannot necessarily be guaranteed. After the warranty period, a free may be charged for loan...
-
Page 18: Disposal Regulations
Disposal Regulations According to valid laws our devices are properly disposed of according to B2B – Regulations for proper disposal. Pls. contact your local dealer for additional information. Spare Parts List Stck/ Best.Nr. Rotogrind (VA) (22.1 + 22.2) neu 2018 Ersatzteilliste/Spare Parts List 03/2019 Unit Qty. -
Page 19: Eg Conformity Declaration
EG Conformity Declaration... - Page 20 We manufacture in compliance with Quality Management ISO 9001:2015 incorporating established standards. REITEL Feinwerktechnik GmbH Senfdamm 20 | 49152 Bad Essen Phone: +49(0)5472-9432-0 | Fax: +49(0)5472-9432-40 www.reitel.com | info@reitel.com...
