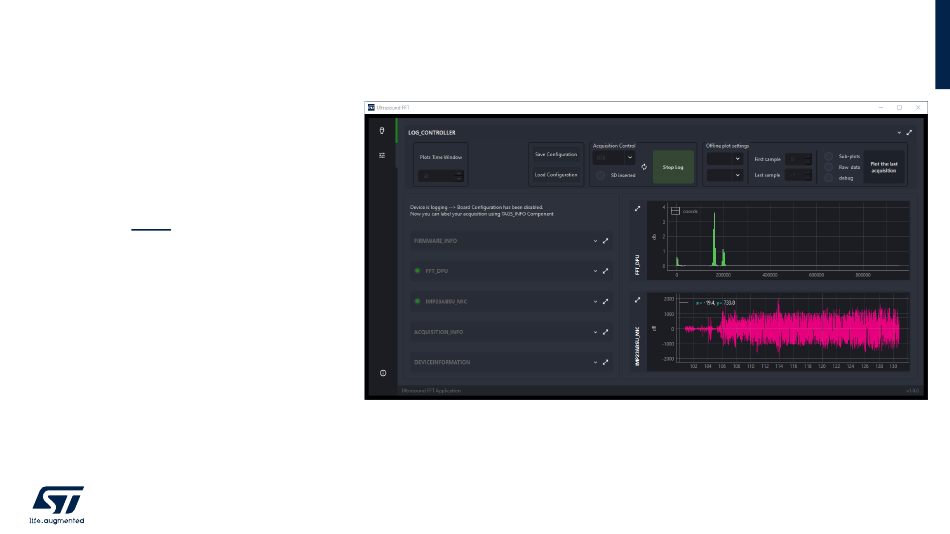

ultrasound_fft_app.py is based on the

same Python SDK and modules

developed for hsdatalog_GUI.py.

Following the same procedure

described in 2.1.2, once launched the

acquisition, you can:

• Click on Connect button to allow the

connection between the board and

the PC

• Enable/disable FFT or microphone

data

• Start/stop logging data on the PC

• Once clicked on Start Log button, data are live plotted and the application will create a

YYYYMMDD_HH_MM_SS (i.e., 20200128_16_33_00) folder containing the data and the JSON configuration

file.

FP-SNS-DATALOG2 - UltrasoundFFT
