The example has been redesigned to

support STEVAL-STWINBX1:

→ New FW:

•

Redesigned based on eLooM framework

•

SensorManager + EMData + DPU

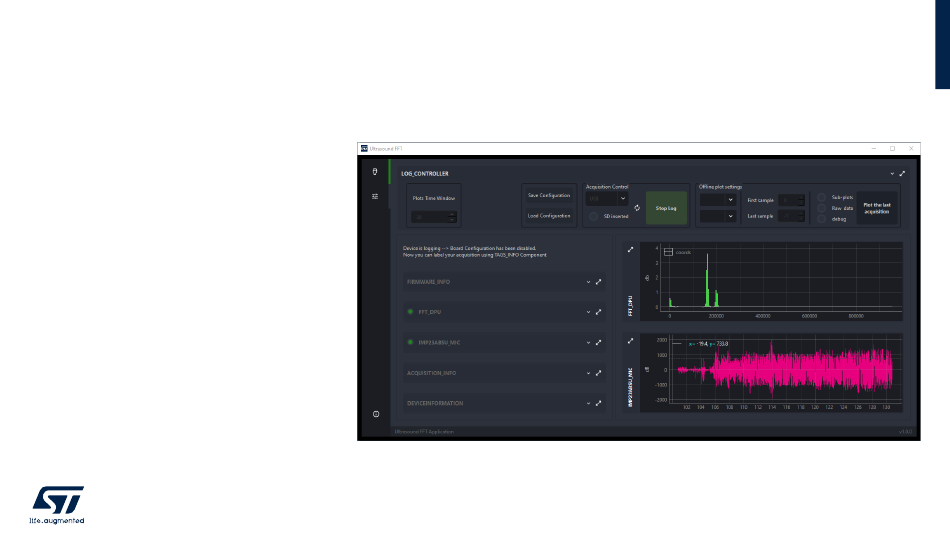

→ New GUI:

•

Real-time FFT of Analog Microphone signal

•

192kHz sampling rate, 80kHz bandwidth

(ultrasound)

•

Fixed FFT length: 512

•

PC Application/GUI

•

New GUI with Datalog Python SDK

•

Based on the same Python framework showed

in Real Time Plot GUI

•

Additional channel for raw microphone data

streaming

FP-SNS-DATALOG2 - UltrasoundFFT
