PRODUCT DETAILS:
Part Number:
ECU Number:
Tail Harness Length Required:
TBM/Lug Part Number:
Wiring Part Number:
FITTING DETAILS:
Towbar Installation Time:
Wiring Installation Time:
Total Installation Time:
Bumper Cut Required:
49-75 Pacific Drive Keysborough, VIC 3173
Phone: 1800 812 017
Email: info@haymanreese.com.au
Rev:
B
03294XW
Maximum Towing Braked:
WLE70003
Maximum Towing Unbraked:
1200mm
Maximum Static Ball Load:
21366
WLL90003
70 mins.
Vehicle Coding Required:
30 mins.
RPA Disable/Other:
100 mins
Note:
No
Page
INSTALLATION INSTRUCTIONS
PART NUMBER
•
Electric brake wire blue wire taped back to input
harness.
•
RPA accessary disable when vehicle is coded.
•
Some drilling maybe required (see Step 24).
1
TOWBAR
03294XW

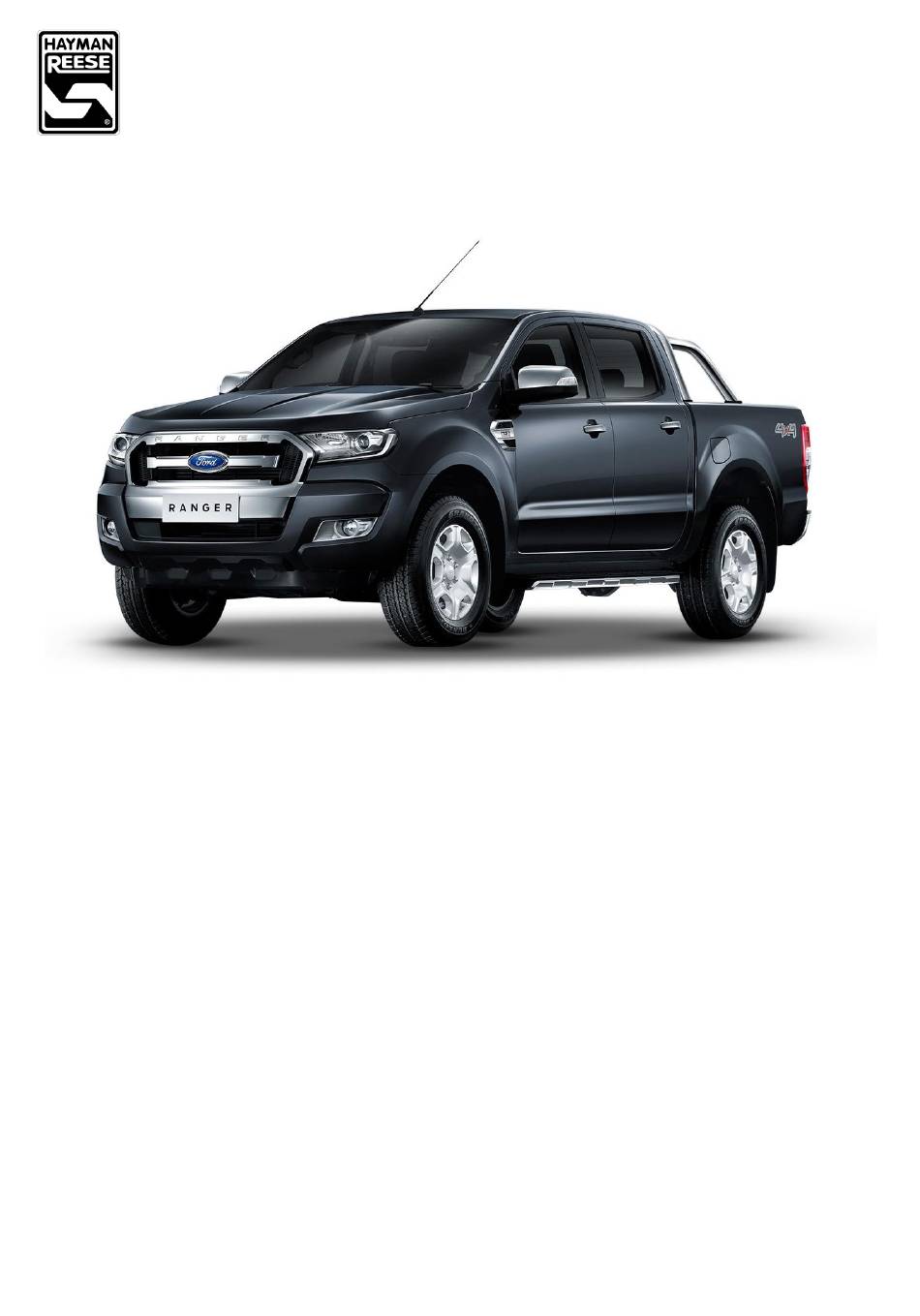

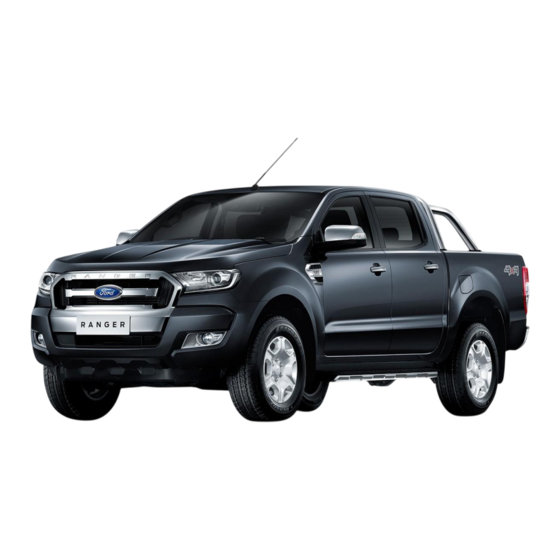

FORD RANGER PX X-BAR
3500
kg
750
kg
350
kg
YES
YES
Issue Date:
13-02-20
Advertisement
Related Manuals for Hayman Reese 03294XW
Summary of Contents for Hayman Reese 03294XW
- Page 1 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03294XW FORD RANGER PX X-BAR PRODUCT DETAILS: Part Number: 03294XW Maximum Towing Braked: 3500 ECU Number: WLE70003 Maximum Towing Unbraked: Tail Harness Length Required: 1200mm Maximum Static Ball Load: TBM/Lug Part Number: 21366 Wiring Part Number:...
-
Page 2: Installation Instructions
1. 2. Do not, drill, cut, weld or otherwise modify the towbar. FOR TOWING PURPOSES ONLY - This towbar is designed and tested by Hayman Reese to adhere to ADR 62/02 which provides only for the expected load demands of towing. - Page 3 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03294XW FORD RANGER PX X-BAR TOWBAR ASSEMBLY DIAGRAM ITEM DESCRIPTION ITEM DESCRIPTION RANGER/BT50 X-BAR WELDED ASSEMBLY SET SCREW HEX FL HD M12x45x1.25P RH SIDE ARM WASHER FLAT M12x28x3 WIRING HOUSING SET SCREW HEX HD M12x40x1.75P...
- Page 4 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03294XW FORD RANGER PX X-BAR NOTE: Pre-assembly of X-Bar centre section can assist for vehicles with difficult access. A. BOLT RECOVERY HOOKS TO TOWBAR TIP: INSERT RECOVERY HOOK BOLTS THROUGH HOOK AND SPACER TUBES RAISED SIDE OF PRIOR TO FITTING BAR.
- Page 5 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03294XW FORD RANGER PX X-BAR C. INSTALL WIRING HOUSING USING 2 x M8 COACH BOLTS COMPLETE WITH 1 x NYLOC NUT PER BOLT, SECURE THE WIRING HOUSING AND PLUG BRACKET TO THE MAIN TOWBAR ROUTE TAIL HARNESS THROUGH EXIT ASSEMBLY THROUGH THE TAB HOLES AS SHOWN.
- Page 6 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03294XW FORD RANGER PX X-BAR 1. Disconnect the reverse sensor and light connections. Lower the spare wheel. CAUTION: Be aware of wheel dislodgement when lowering. 2.a FOR VEHICLES WITHOUT FACTORY TOWBAR Remove the 2 x M12 (1) bolts from either side of the bumper step assembly and remove the steel bumper from vehicle.
- Page 7 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03294XW FORD RANGER PX X-BAR 2.b FOR VEHICLES WITH FACTORY TOWBAR Remove the 2 x M12 factory step bolts (1) from either side of the bumper step assembly as shown and remove assembly from vehicle.
- Page 8 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03294XW FORD RANGER PX X-BAR 5. Loosely secure sidearm to underside of chassis rail via nut plates, with 2 x M12 bolts complete with 1 x washer per bolt, as shown Repeat for opposite side.
- Page 9 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03294XW FORD RANGER PX X-BAR 8.b FOR VEHICLES WITH FACTORY TOWBAR See step 8.a.i. NOTE: Use 1 x M12 tapped plate per side for the hole that doesn't have a captive nut. Placing the 10mm spacer plate in between...
- Page 10 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03294XW FORD RANGER PX X-BAR IMPORTANT Due to possible vehicle variations, always confirm any noted vehicle colour wires with a multi-meter to ensure the correct function is identified before soldering or scotch locking. For vehicle wires denoted with two colours (example;...
- Page 11 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03294XW FORD RANGER PX X-BAR 12. Connect the vehicle CAN, Trailer, Power connectors (1) to the harness patch mating connectors (2). 13. Connect the harness patch connector (3) to the ECU (4) (WLE70003). 14. Attach the supplied velcro tape to ECU and mount in a suitable location.
- Page 12 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03294XW FORD RANGER PX X-BAR 19. Route the tail harness (tail length 1800mm) (2) from the towbar mounting (1), towards the trailer patch blue connector. 20. Test the trailer wiring harness function using a light board or multi-meter.
-
Page 13: Customer Information
TOWBAR MAINTENANCE AND CARE: 1. Hayman Reese recommend that the towbar LUG or TBM (tow ball Mount) Pull Pin and R-clip are removed and stored when not in use. Removal of LUG or TBM (tow ball mount) is advisable when not in use to assist with any of the following. - Page 14 VEHICLE’S GLOVEBOX AFTER INSTALLATION HAYMAN REESE SMART PIN Your Hayman Reese towbar is equipped with Smart Pin technology to help reduce towbar tongue rattle in most driving conditions. Please ensure below instructions are understood and routine maintenance is carried out to ensure best towing experience.
- Page 15 OE functionality as set by OE manufacturer. Please read the vehicles owner’s manual for proper operation and understanding. Coding can be carried out using the Hayman Reese SmartCODE (HRSC) using the following steps. Note, if HRSC is unavailable, vehicle coding can be carried out by OE manufacturer as needed.
