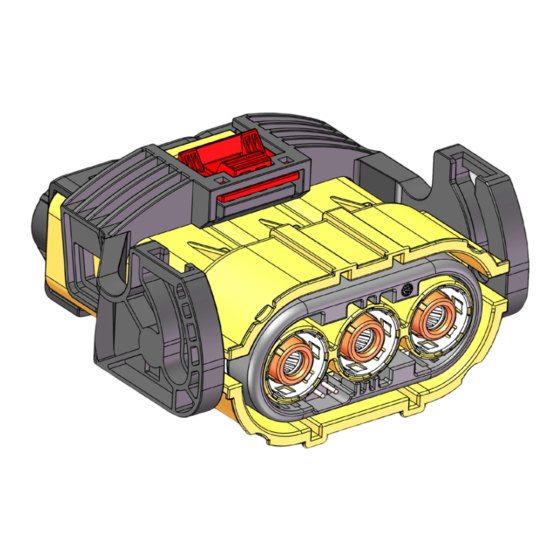

- Page 1 AI-17 CABLE ASSEMBLY WORK INSTRUCTION ePower-lite 5.7mm 3-Port Connector Part Numbers: C10-765779-3XS1 C10-765779-3XS2 Revision Description Issue Date lnitial release 2021/08/16...
- Page 2 Part 1: Plug Assembly Package Contents Plug Shell assembly Plug contact assembly Rear Outside Shield ring Rear inside Shield ring Rear Grommet Rear Cover Recommended shielded wire specification Insulation Cable Jacket Recommended Min. Shield Wire Wire Size Diameter (mm) Diameter (mm) Diameter (mm) Cable Pullout Force (N) 16 mm...
- Page 3 Part 2: Plug Assembly Step 1: Shielded wire stripping the jacket. Item Cutting Length 29.5±0.5mm Step 2: Mount the rear inside shield ring (Part 4). Part 4 Step 3: Cutting shield wire. Item Cutting Retention Length 9.5±0.5mm Step 4: Shielding wire turned back.
- Page 4 Step 5: Install the Rear Cover (Part 6) and the Rear Grommet (Part 5) in sequence. Part 5 Part 6 Step 6: Mount the Rear Cover (Part 3). Part 3 Step 7: Crimping the rear shield outside ring. Recommended crimp length is 4.5±0.5mm Recommended crimp Recommended crimp Recommended Min.
- Page 5 Notes: The recommended crimp sizes are only for reference. The customer should adjust them according to cable specification and crimp tool and test results including temperature rise and metallographic analysis and pullout force. Recommended crimping tool: Hydraulic press Step 8: Remove film layer, cutting insulation.
- Page 6 Notes: The recommended crimp sizes are only for reference. The customer should adjust them according to cable specification and crimp tool and test results including contact resistance and pullout force. Crimping tool: Manual hydraulic crimping Die: 25mm2 die for 25mm2 cable Step 13: Follow steps to assemble another two cables.
