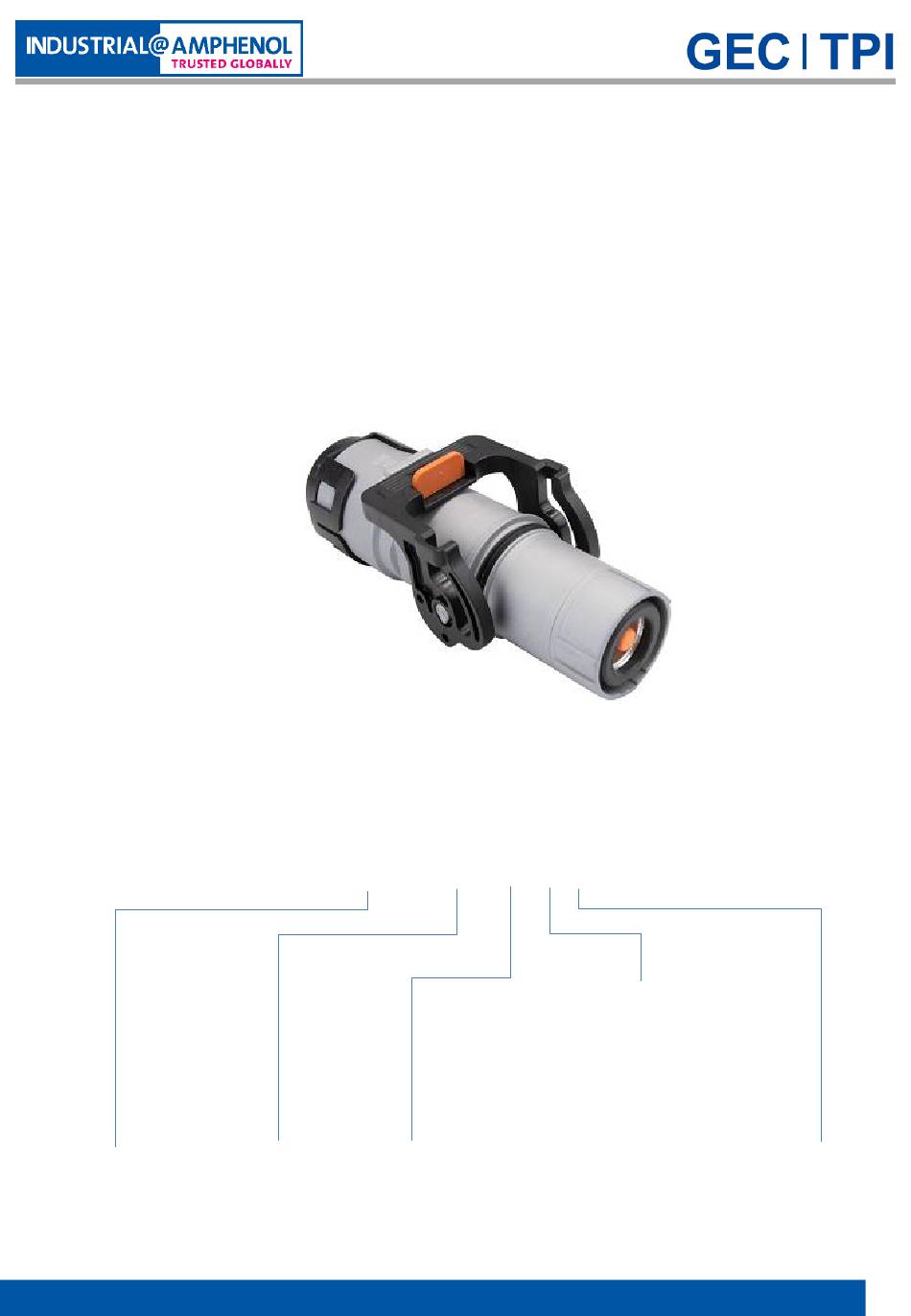

Document No: 8P1097
Rev.05
PowerLok 14mm单芯2代直头组装式连接器安装说明

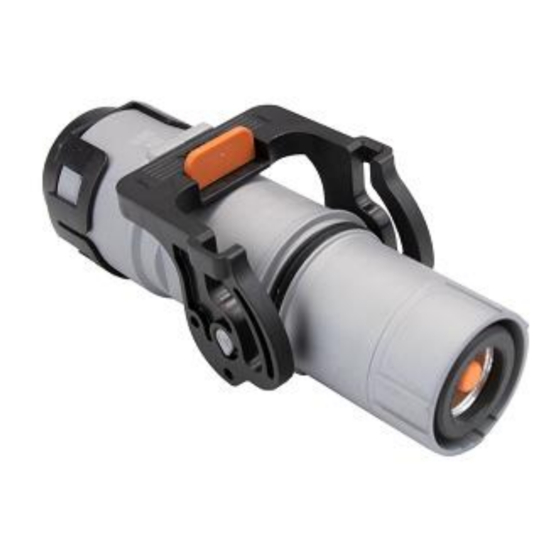

14mm 1POS PowerLok Gen2 180D Plug Connector
键位
X 键
Y 键
U 键
V 键
W 键
T 键
The Assembly Manual for
PL18(X)-50(X)-XX-2-5
高压互锁
Key
0：无
X
1：有
Y
U
V
HVIL
W
0：NO
T
1：WITH
线缆大小
G2 Connector
Cable Size
mm2
70
95
120
线缆类型
5：HS cable
www.amphenol-gec.com
Advertisement
Related Manuals for Amphenol PL18 50 Series
Summary of Contents for Amphenol PL18 50 Series
- Page 1 The Assembly Manual for 14mm 1POS PowerLok Gen2 180D Plug Connector PL18(X)-50(X)-XX-2-5 线缆大小 高压互锁 键位 0：无 X 键 G2 Connector Cable Size 1：有 Y 键 U 键 V 键 HVIL 线缆类型 W 键 0：NO 5：HS cable T 键 1：WITH www.amphenol-gec.com...
-
Page 2: Part 1： Package Contents
单芯2代14mm直头组装式连接器安装说明 The Assembly Manual for 1POS 14mm PowerLok G2 180D Plug Connector 第一部分：包装清单 Part 1： Package contents ② ① ③ ④ ⑤ ⑦ ⑧ ⑩ ⑥ ⑨ ⑪ 备注 Note： 安装过程请保留HVIL防护盖在此位置，等线束组装完毕再取出。 HVIL cap should be left in place during assembly, removed after final assembly is complete before use. ①... -
Page 3: Part 2: Plug Assembly
单芯2代14mm直头组装式连接器安装说明 The Assembly Manual for 1POS 14mm PowerLok Gen2 180D Plug Connector 第二部分：插头组装 Part 2: Plug Assembly 步骤1：穿配件 Step1：Assemble the accessories 1-1 线缆准备：按生产需求从表1选择合适尺寸的线缆，并裁剪 1-1 Cable preparation : take right-sized cable and cut the cable according to production plan from the table 1 表1：线材规格... - Page 4 单芯2代14mm直头组装式连接器安装说明 The Assembly Manual for 1POS 14mm PowerLok G2 180D Plug Connector 步骤3：压接铜环 Step3：Crimping Copper Ring 3-1 将 ⑧内铜环从右端移动到屏蔽线下方，屏蔽线覆盖在铜环表面 3-1 Move the ⑧ inside copper ring from the right side to the side below the shield. The shield line is covered on the surface of the copper ring ⑧...
- Page 5 单芯2代14mm直头组装式连接器安装说明 The Assembly Manual for 1POS 14mm PowerLok G2 180D Plug Connector 步骤4：取1pcs的 ③ R4 holder 自左端穿上线缆，并压接在其上(规格参照表4) Step 4: Take a ③ R4 holder, load it to the cable end on the left, then crimp(refer to table 4) Be sure the gap here is 2.5±1mm ③R4 holder 确保这里的间隙是1.5mm到3.5mm之间...
- Page 6 单芯2代直头组装式连接器安装说明 The Assembly Manual for 1POS PowerLok G2 180D Plug Connector 步骤7：取出②绝缘筒，按图示方向插入③ R4 holder中, 并使其触底 Step 7: Take a ② Insulation sleeve ,plug it to ③ R4 holder in direction as show in photo , and make it contact the bottom ②...
- Page 7 单芯2代14mm直头组装式连接器安装说明 The Assembly Manual for 1POS 14mm PowerLok G2 180D Plug Connector 步骤10： ②绝缘筒按图示方向插入到①屏蔽壳组件, 并使其触底，注意确认HVIL位置以及卡簧是否到位。 Step 10: Plug the ② Insulation sleeve into ①Shield shell assembly as shown in photo , and make it reach the bottom, take care to ensure HVIL in right place and pull back wire to ensure clamp spring in position . ②...
- Page 8 单芯2代14mm直头组装式连接器安装说明 The Assembly Manual for 1POS 14mm PowerLok G2 180D Plug Connector 12-3 测试说明: 警告:建议的电气测试及其参数应根据终端应用要求进行审查，以确保安全性并防止损坏其他部件。提供的参数 是基于PowerLok连接器和其峰值1000VDC额定。提供的测试参数可能超出电缆组件或设备上使用的其他部件/ 材料的限制。 12-3 Test note: caution: Recommended electrical tests and their parameters should be reviewed against end application requirements to ensure safety and to prevent damage to other components. Parameters provided are based on the PowerLok connectors and their peak 1000VDC rating.
- Page 9 Specifications are subject to change without notice. Contact your nearest Amphenol Corporation Sales Office for the latest specifications. All statements, information and data given herein are believed to be accurate and reliable but are presented without guarantee, warranty, or responsibility of any kind, expressed or implied.
